Control Panel Assembly Removal

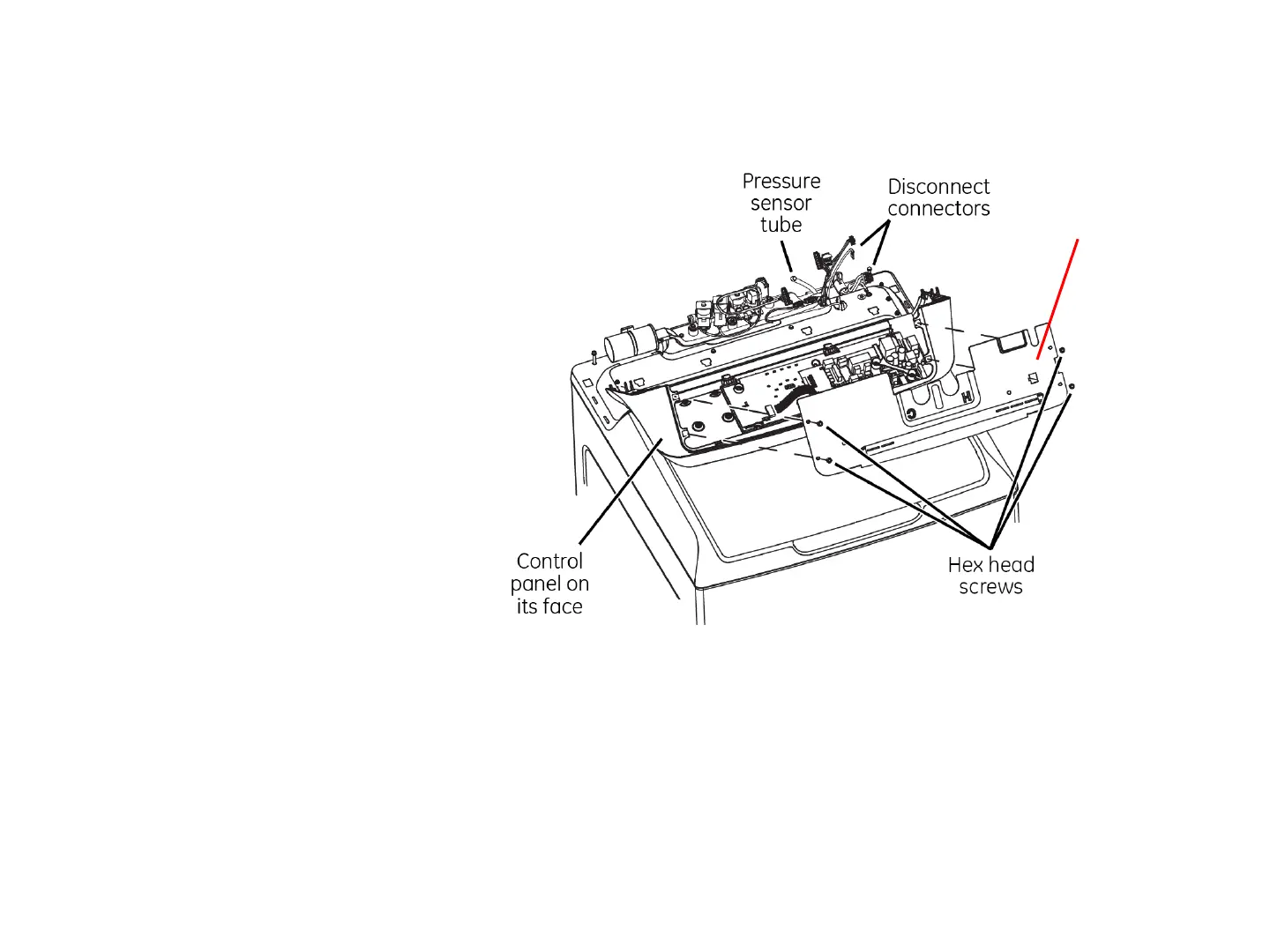

Roll the control panel
forward to lay on its face
and remove four 1/4 in.
hex screws securing the
rear panel to the control
panel assembly and
remove.
Disconnect harness from
the control board.
IMPORTANT: When reinstalling the control panel assembly, ensure that all ground wires are
reconnected and tested for proper continuity to the ground terminal on the power cord.
RJ45
Connection
