GE IM-4 - Page 22

22
INSTALL WATER TUBE INLET
• Locate the hole in the upper right corner on the
back of the refrigerator and, using a knife, clear
the foil from the hole.
• Remove the gray insulation plug from the hole.
NOTE: It may be necessary to remove the screw
from the top right condenser mounting clip for
better access to the hole (see page 25, Step 4).
• Cut the fill tube (16) to the length (refer to
the template on page 62),with a sharp knife
or a single-edge razor blade.
• Slide the fill tube (16) onto
the water tube inlet (15).
• On the tube side of the water
tube inlet (15) there is an
adhesive backing. Remove
the backing. Slide the tube
into the hole on the back
of the refrigerator as
shown. Firmly press on
the inlet to secure it.
H
H
2
Installation Instructions

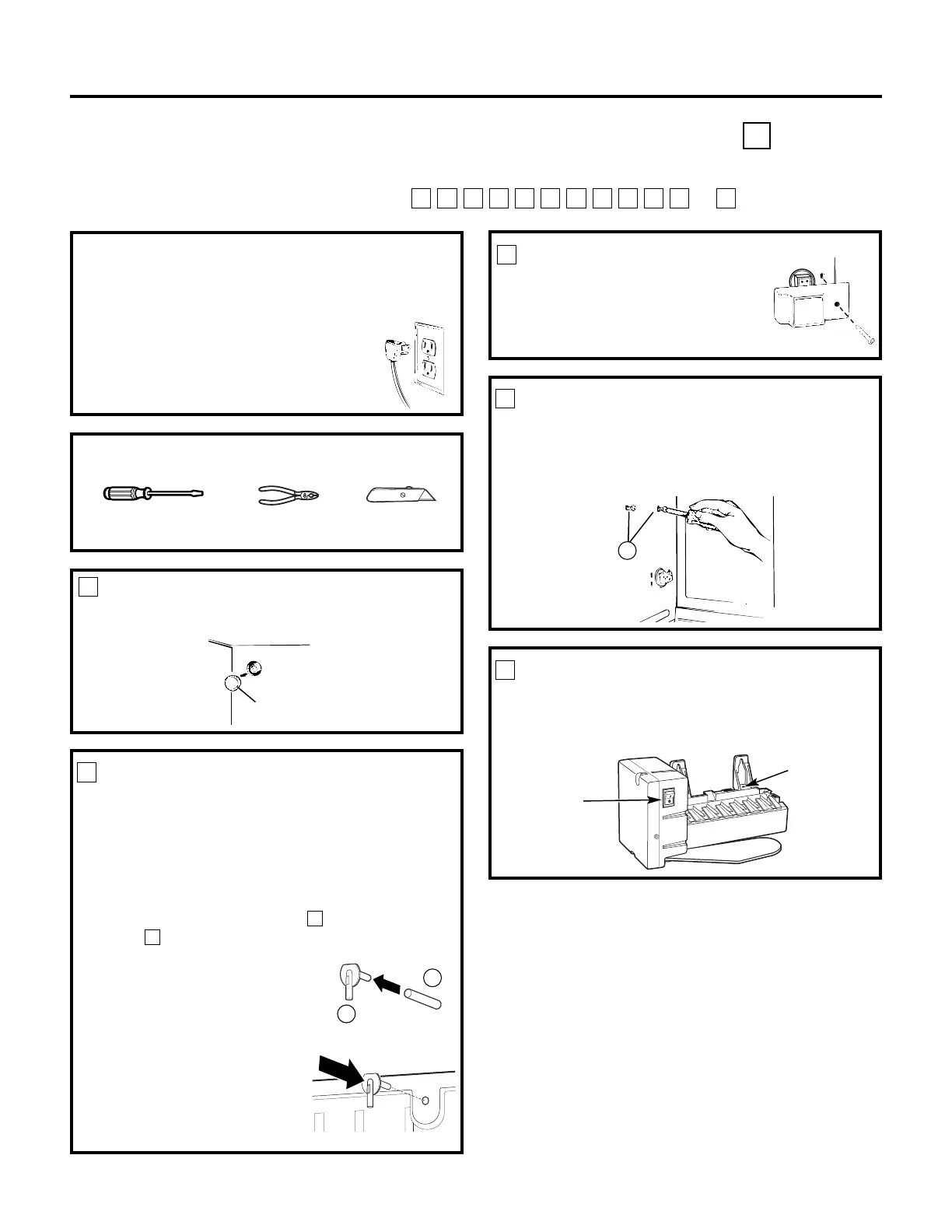

ICEMAKER INSTALLATION INSTRUCTIONS H
Are these the right instructions for your model? Follow the Installation Instructions indicated by
the label on the back of the refrigerator— or
RQPNMLKJHGFC
BEFORE YOU BEGIN
Read each step thoroughly before proceeding.
•
CAUTION
–
Unplug the
Refrigerator. To eliminate the danger
of electric shock during installation,
you must unplug the refrigerator
from its electrical outlet.
Flat blade and Phillips
screwdrivers
Pliers
TOOLS YOU WILL NEED
Sharp knife
PREPARE FOR INSTALLATION
• Remove and discard the white plug from the
upper left corner of the freezer wall.
1
SET POWER SWITCH TO OFF
Set the icemaker power switch to OFF. Leave the
power switch in the OFF position until the refrigerator
is connected to the water supply to prevent
premature operation.
5
Power
Switch
Remove
plug
REMOVE PLUG COVER
• Remove the electric plug cover
from the left side wall and discard it.
• Remove the screw and pull the
cover off.
3
LOOSEN MOUNTING SCREWS
Loosen the two mounting screws (A) but do not
screw them all the way out. The screws should
extend approximately 1/2″ (13 mm) out from
the freezer wall.
4
A
Hole for
wire tie
15
16
