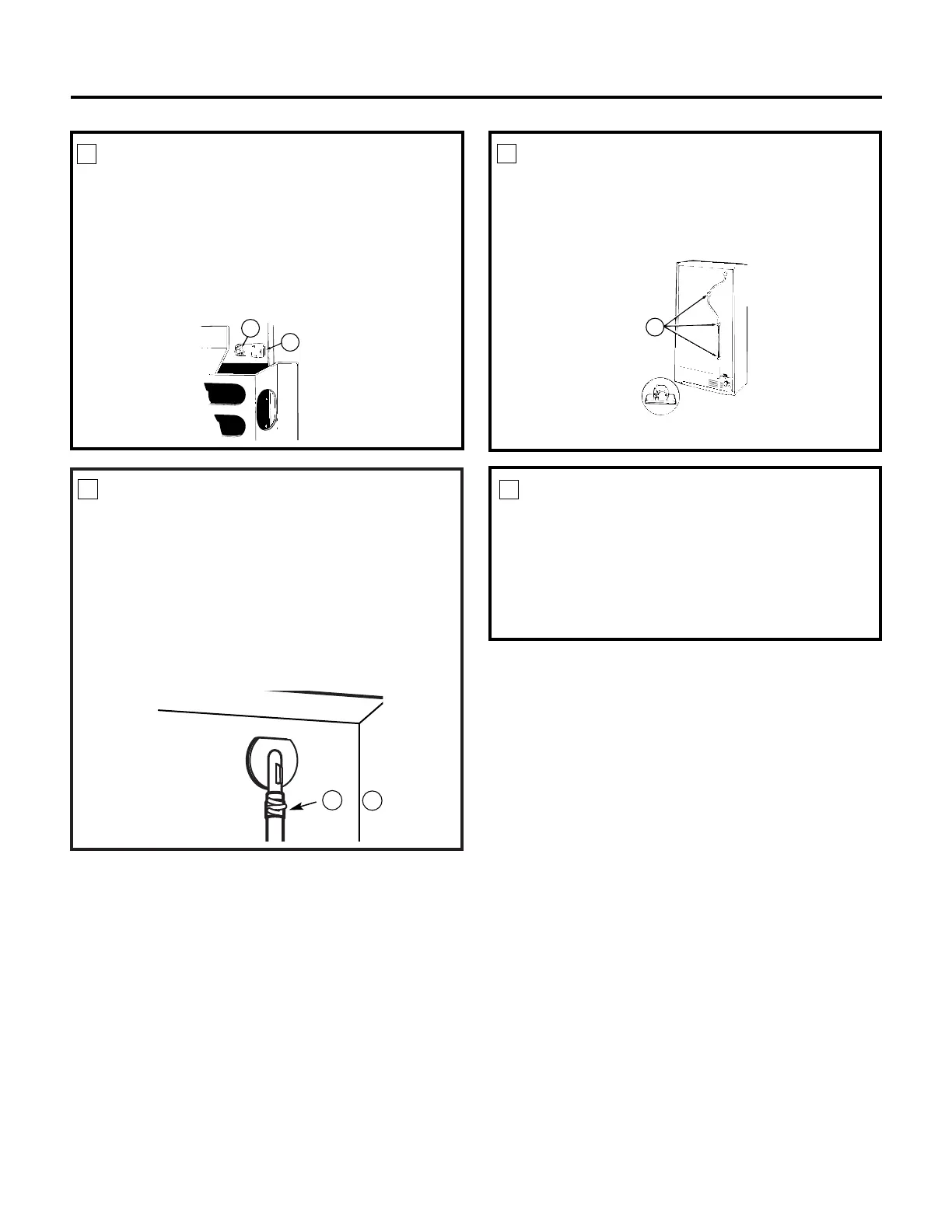

CONNECT THE WATER LINE
• Squeeze the ends of the hose clamp (3) or(6) from
the kit with pliers and slide the clamp over the
water tube inlet.
• While still squeezing the clamp, insert the
plastic water line into the inlet as far as it will
go (approximately 1″ [25 mm]).
• Then slide the clamp downward to capture the
plastic water line in place.
• Make sure the fill tube is aimed down.
Installation Instructions
INSTALL WATER LINE CLAMP
• Attach the metal water line clamp (strain relief)
(8) to the refrigerator. Drive the screw (7) from
the kit through the clamp (8) at the indent into
the back of the cabinet.
• The metal clamp is for the house water line (see
the Water Line Installation Instructions). It is not
to be used for the tubing from the water valve up
to the icemaker.
3
4
Water tube
inlet
ATTACH THE PLASTIC WATER
LINE
Fasten the plastic water line to the back of the
cabinet with adhesive-backed fasteners (5), spacing
the fasteners as shown to take up the slack in the
line.
5
WATER VALVE INSTALLED
Refer to the Water Line Installation Instructions
for connection to the home water supply. After
water line installation is completed, set the
icemaker power switch to
ON
.
The icemaking cycle will not begin until the icemaker
and freezer compartment reach operating temperature,
then icemaking will begin automatically.
6
7
8
3
6
or
21
Adhesive-backed fasteners
for plastic water line
5
To Next Page
