GE IM-6D - Page 39

49-60704-2 39
3

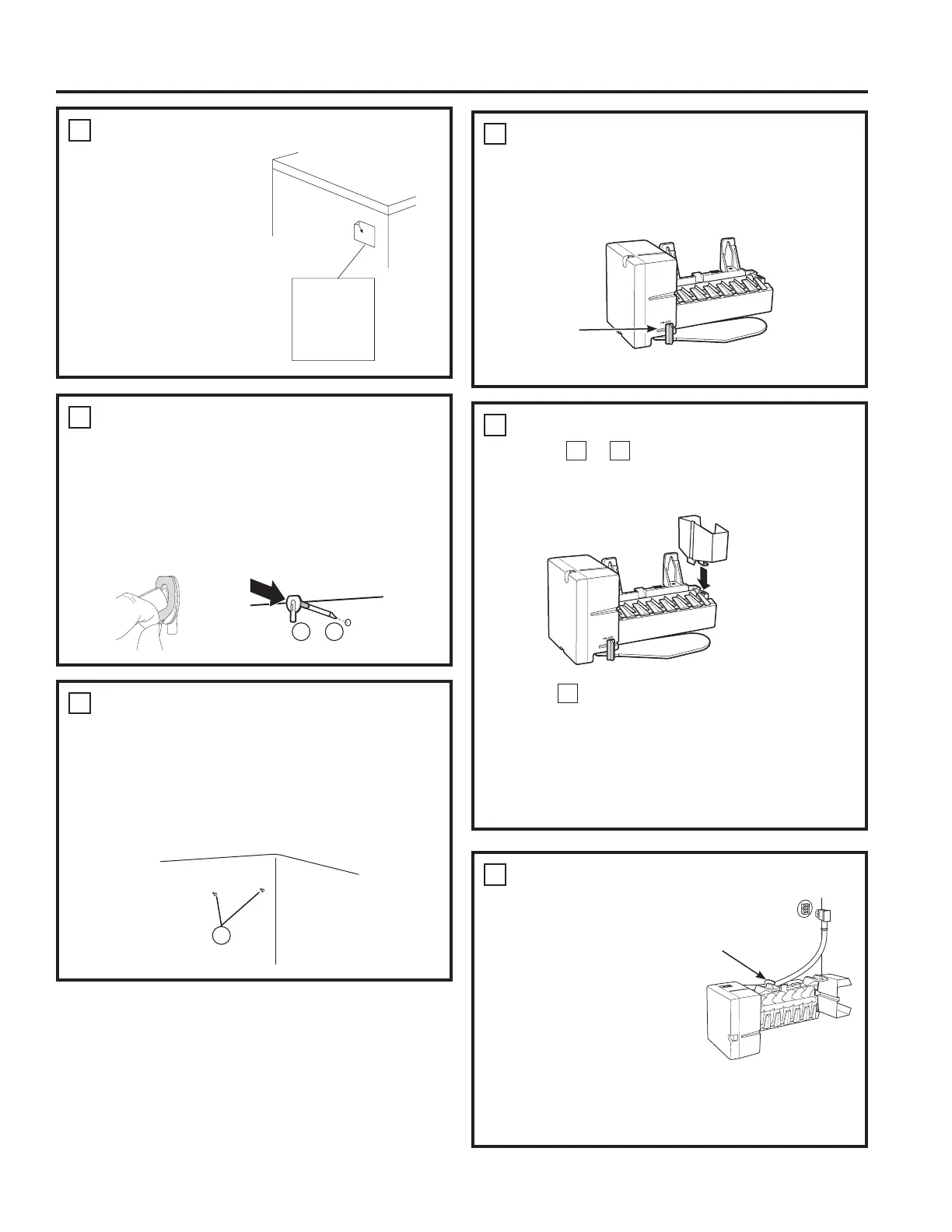

REMOVE THE OUTLET COVER
Ŷ Peel off the outlet cover.
4
INSTALL FILL TUBE
Ŷ Go to the back of the refrigerator. On the
refrigerator side of the fill tube assembly RU
12 depending on model), there is an adhesive
backing. Remove the adhesive backing and slide
the tube into the hole near the top at the back
of the refrigerator. Firmly press on the fill tube
assembly to secure it to the refrigerator.
5
PREPARE FOR INSTALLATION
Ŷ ,QVLGHWKHIUHH]HUORRVHQWKHWZRmounting
screws %EXWGRQRWVFUHZWKHPDOOWKHZD\RXW
Your model may have screws already installed;
if not, remove the 2 plug buttons and insert the 2
Phillips head screws 7KHVFUHZVVKRXOG
H[WHQGDSSUR[LPDWHO\PPRXWIURPWKH
freezer wall.
6
SET POWER SWITCH TO OFF
Ŷ Set the icemaker power switch to OFF. Leave
the power switch in the OFF position until the
refrigerator is connected to the water supply to
prevent premature operation.
Power
Switch
$SSHDUDQFHPD\YDU\
INSTALLATION INSTRUCTIONS
Installation Instructions
REMOVE ONLY
TO INSTALL
WATER FILL TUBE
11 12
or
B
7
INSTALL THE ICEMAKER FILL CUP
For letters
U
&
V
:
Ŷ ,QVWDOOWKHLFHPDNHUILOOFXSWKDWFDPHZLWK\RXU
unit into the icemaker as shown.
For letter
W
:
Ŷ ,QVWDOOWKHicemaker fill cup LQWRWKHLFHPDNHU
DVVKRZQ,IWKHILOOFXSKDVEHHQPLVSODFHGFDOO
1.800.626.2002 and order part WR29X10074.
,IWKHFRUUHFWILOOFXSLVQRWLQVWDOOHGLQWRWKH
icemaker, there is the possibility of water leaking
into the freezer and not into the icemaker.
$SSHDUDQFH
may vary)
8
PLUG IN THE ICEMAKER
Ŷ Holding the icemaker in
place, insert the icemaker
power cord plug into the
socket on the side wall,
making sure the prongs
and holes are matched.
Press the plug firmly into
the socket. Lock the plug
in place by clipping the
restraints onto each side of
the plug. Make sure the restraints click into place.
Make sure the power cord is still in the hook on
the back of the icemaker.
Hook
