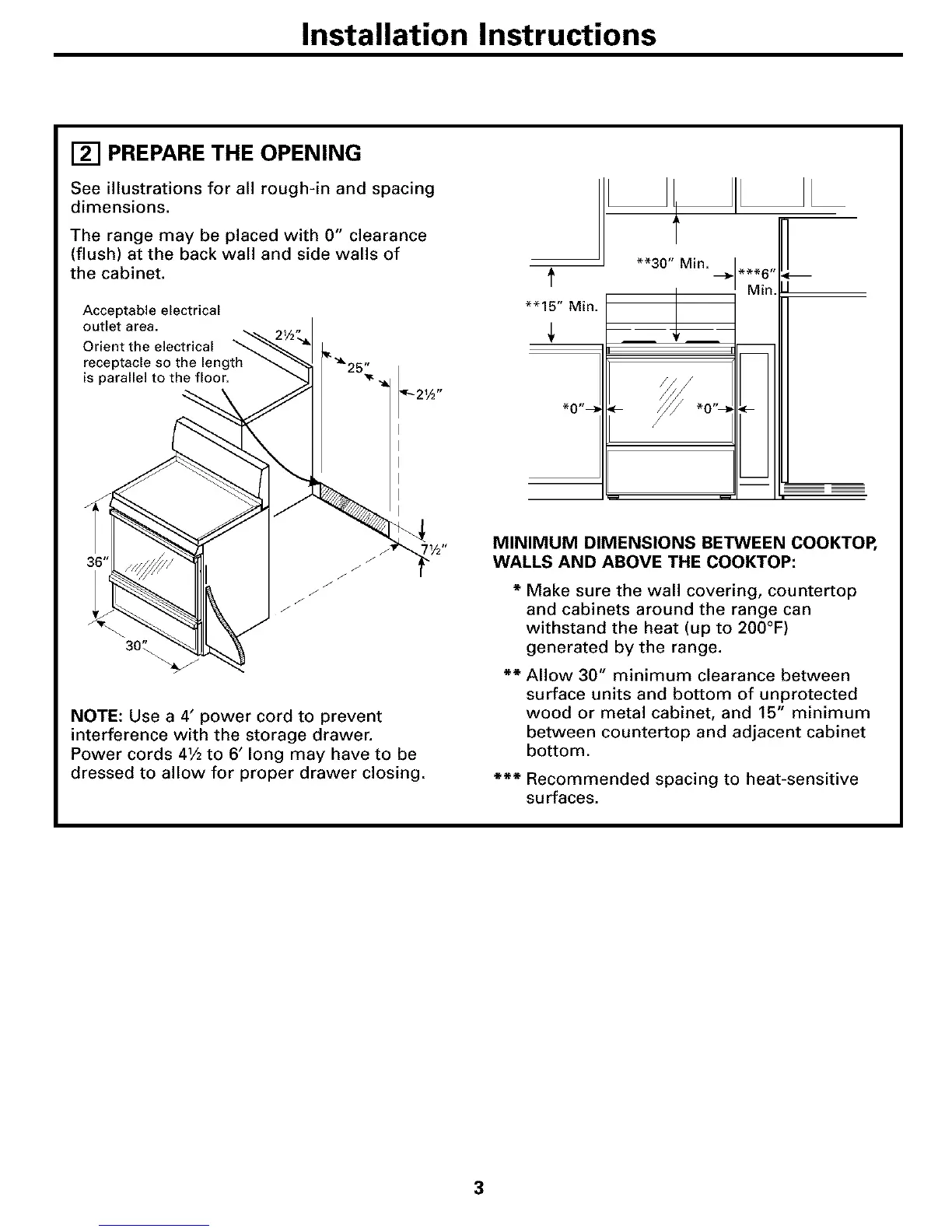

Installation Instructions
[] PREPARE THE OPENING
See illustrations for all rough-in and spacing
dimensions.
The range may be placed with 0" clearance
(flush) at the back wall and side walls of
the cabinet.
Acceptable electrical
outlet area.
Orient the electrical
receptacle so the length
is parallel to the floor.
f
*'15" Min.
*0"-_
IlL
**30" Min. _ ***6"
Mn.
. !
NOTE: Use a 4' power cord to prevent
interference with the storage drawer.
Power cords 41/2to 6' long may have to be
dressed to allow for proper drawer closing.
MINIMUM DIMENSIONS BETWEEN COOKTOP,
WALLS AND ABOVE THE COOKTOP:
* Make sure the wall covering, countertop
and cabinets around the range can
withstand the heat (up to 200°F)
generated by the range.
** Allow 30" minimum clearance between
surface units and bottom of unprotected
wood or metal cabinet, and 15" minimum
between countertop and adjacent cabinet
bottom.
*** Recommended spacing to heat-sensitive
surfaces.
3
