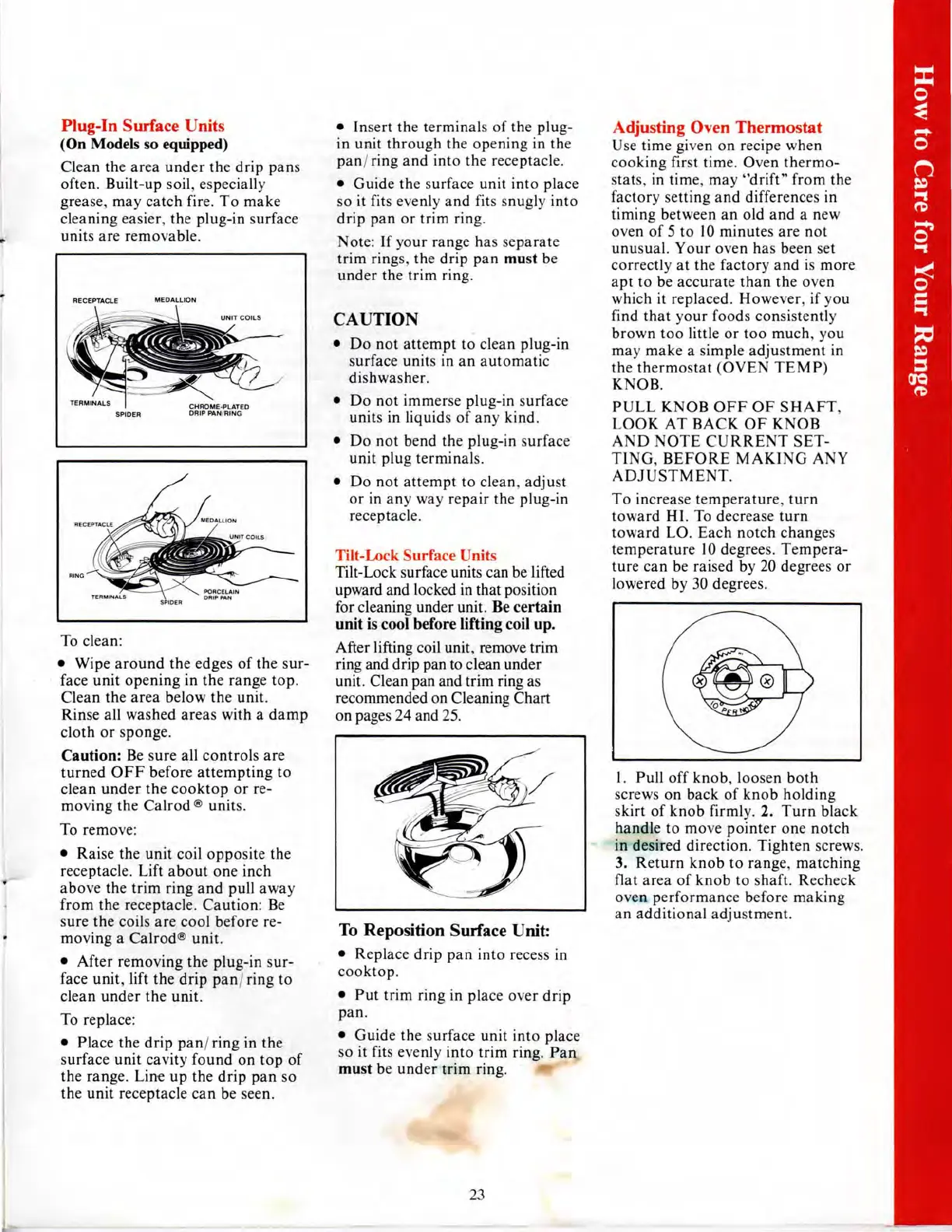

Plug-In Surface Units
(On
Models so equipped)
Clean
the
area
under
the
drip
pans
often. Built-up soil, especially
grease,
may
catch
fire.
To
make
cleaning easier, the plug-in surface
units
are
removable.
RECEPTACLE
TERMINALS
SPIDER
To clean:
MEDALLION
CHROME
-PLATED
DRIP
PAN/RING
• Wipe
around
the
edges
of
the
sur-
face
unit
opening
in
the
range
top
.
Clean
the
area
below
the
unit.
Rinse all washed
areas
with a
damp
cloth
or
sponge.
Caution:
Be
sure all
controls
are
turned
OFF
before
attempting
to
clean
under
the
cooktop
or
re-
moving
the
Calrod
® units.
To remove:
• Raise the unit coil
opposite
the
receptacle. Lift
about
one inch
above
the
trim
ring
and
pull
away
from
the receptacle.
Caution:
Be
sure
the
coils
are
cool before re-
moving
a Calrod® unit.
• After
removing
the
plug-in sur-
face
unit
, lift
the
drip
pan
l ring to
clean
under
the
unit.
To replace:
•
Place
the
drip
pan
l ring in
the
surface
unit
cavity
found
on
top
of
the
range. Line
up
the
drip
pan
so
the
unit
receptacle
can
be seen.
• Insert the
terminals
of
the plug-
in unit
through
the
opening
in
the
pan
l ring
and
into
the
receptacle.
•
Guide
the
surface
unit
into
place
so it fits evenly
and
fits snugly
into
drip
pan
or
trim
ring.
Note:
If
your
range
has
separate
trim
rings,
the
drip
pan
most
be
under
the
trim
ring.
CAUTION
•
Do
not
attempt
to
clean plug-in
surface units in
an
automatic
dishwasher.
•
Do
not
immerse plug-in surface
units in liquids
of
any
kind.
•
Do
not
bend
the
plug-in surface
unit
plug terminals.
•
Do
not
attempt
to
clean,
adjust
or
in
any
way
repair
the plug-in
receptacle.
Tilt-Lock
Surface
Units
Tilt-Lock surface units can be lifted
upward and locked in that position
for cleaning under unit. Be
certain
unit
is cool before lifting coil up.
After lifting coil unit, remove trim
ring and drip pan
to
clean under
unit. Clean pan and trim ring as
recommended on Cleaning Chart
on pages 24 and
25.
To
Reposition Surface Unit:
• Replace
drip
pan
into recess in
cooktop.
•
Put
trim
ring in place
over
drip
pan.
• Guide
the
surface unit
into
place
so it fits evenly
into
trim
ring.
Pan
must
be
under
trim
ring.
23
Adjusting Oven Thermostat
Use time given
on
recipe when
cooking
first time. Oven
thermo-
stats
, in time,
may
"drift"
from
the
factory
setting
and
differences in
timing
between
an
old
and
a new
oven
of
5
to
10
minutes
are
not
unusual.
Your
oven has been set
correctly
at
the
factory
and
is
more
apt
to
be
accurate
than
the
oven
which it replaced.
However
, if you
find
that
your
foods consistently
brown
too
little
or
too
much
, you
may
make
a simple
adjustment
in
the
thermostat
(OVEN
TEMP)
KNOB.
PULL
KNOB
OFF
OF
SHAFT
,
LOOK
AT
BACK
OF
KNOB
AND
NOTE
CURRENT
SET-
TING,
BEFORE
MAKING
ANY
ADJUSTMENT.
To
increase
temperature
,
turn
toward
H I. To decrease
turn
toward
LO.
Each
notch
changes
temperature
10
degrees.
Tempera-
ture
can
be raised by 20 degrees
or
lowered by 30 degrees.
I. Pull
off
knob
, loosen
both
screws on back
of
knob
holding
skirt
of
knob
firmly. 2.
Turn
black
handle
to
move
pointer
one
notch
in desired direction.
Tighten
screws .
3.
Return
knob
to
range
,
matching
flat
area
of
knob
to
shaft. Recheck
oven
performance
before
making
an
additional
adjustment.
