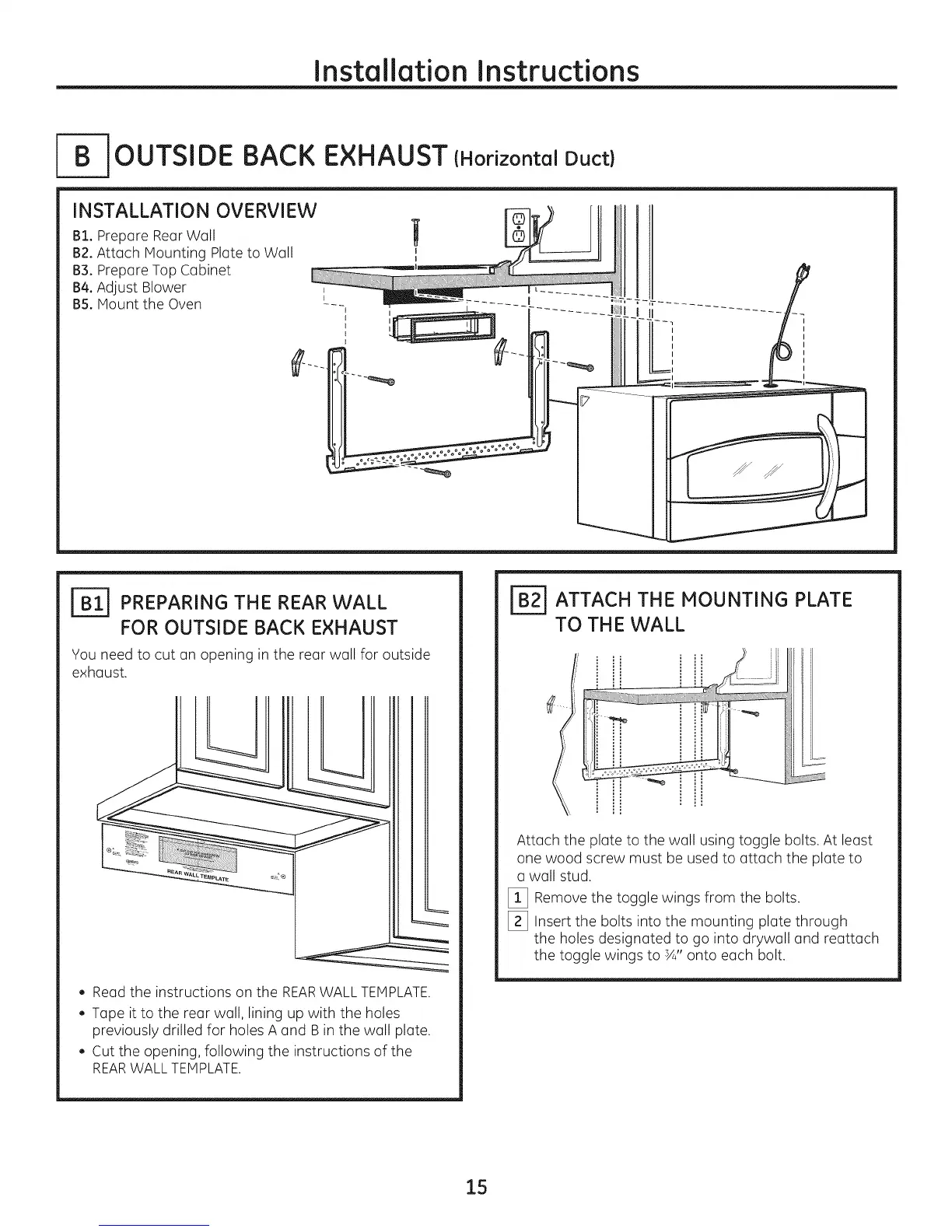

Installation Instructions
r OUTSIDE BACK EXHAUST (Horizontal Duct}
INSTALLATION OVERVIEW !
B1. Prepare Rear Wall !
B2.Attach Mounting Plate to Wall
B3. Prepare Top Cabinet __ _
B4.Adjust Blower l :_
BS.ivlount the Oven --- _ ,_ U_L]
J-_ PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
You need to cut an opening in the rear wall for outside
exhaust.
• Readthe instructions on the REARWALLTEMPLATE.
• Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall plate.
• Cut the opening, following the instructions of the
REARWALL TEMPLATE.
ATTACH THE MOUNTING PLATE
TO THE WALL
: i ...........-_ iii/i j
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
[_ Remove the toggle wings from the bolts.
[_ Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to sA"onto each bolt.
15
