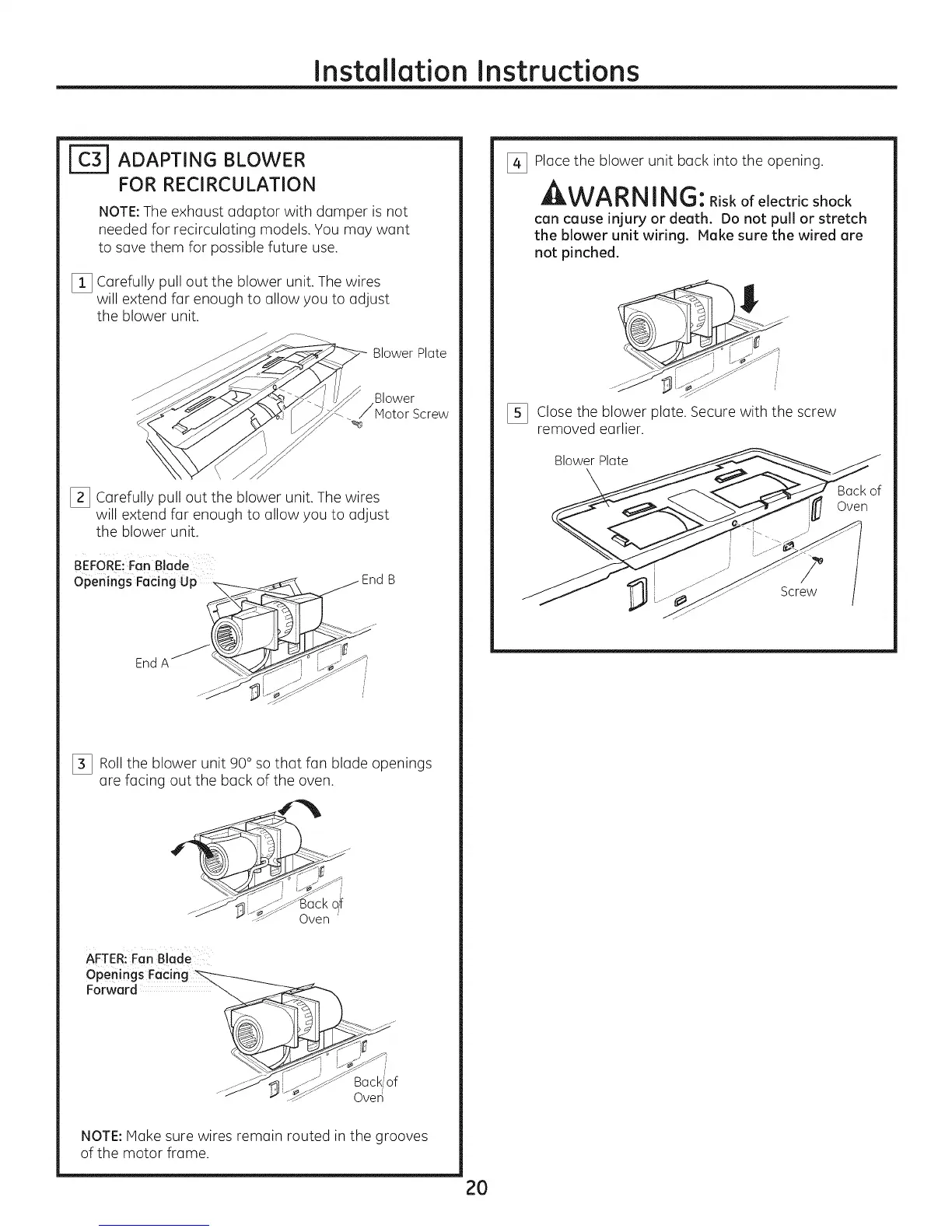

Installation Instructions

r_ ADAPTING BLOWER

FOR RECIRCULATION

NOTE:The exhaust adaptor with damper is not

needed for recirculating models. You may want

to save them for possible future use.

[_ Carefully pull out the blower unit. The wires

will extend far enough to allow you to adjust

the blower unit.

___ BlowerPlate

[_ Carefully pull out the blower unit. The wires

will extend far enough to allow you to adjust

the blower unit.

BEFORE:FanBlade

openings Facing Up ........ EndB

End A "_

[_ Rollthe blower unit 90° so that fan blade openings

are facing out the back of the oven.

J-

Oven

AFTER:FanBlade

OpeningsFacing _ .....

Forward .......

....._ J _" Oven

NOTE:Make sure wires remain routed in the grooves

of the motor frame.

[_ Place the blower unit back into the opening.

_kWA RN!NG: Riskofelectricshock

can cause injury or death. Do not pull or stretch

the blower unit wiring. Hake sure the wired are

not pinched.

[_ Close the blower plate. Secure with the screw

removed earlier.

Blower Plate

Back of

Oven

Screw

GE JVM7195 Installation Instructions
