4.2 EXTENDED ENERVISTA UR SETUP FEATURES 4 HUMAN INTERFACES
4
The software prompts for a template password. This password must be at least four characters in length.
2. Enter and re-enter the new password, then click OK to continue.
The settings file template is now secured with password protection.
d) VIEWING THE SETTINGS TEMPLATE
Once all necessary settings are specified for viewing, users are able to view the settings template on the online device or
settings file. There are two ways to specify the settings view with the settings template feature:
• Display only those settings available for editing
• Display all settings, with settings not available for editing greyed-out
Use the following procedure to only display settings available for editing:
3. Right-click the device in the Online or Offline Window area and apply the template by selecting the Template Mode >
View In Template Mode option.
4. Enter the template password then click OK to apply the template.
Once the template has been applied, users are limited to view and edit the settings specified by the template. The effect of
applying the template to the phase time overcurrent settings is shown below.

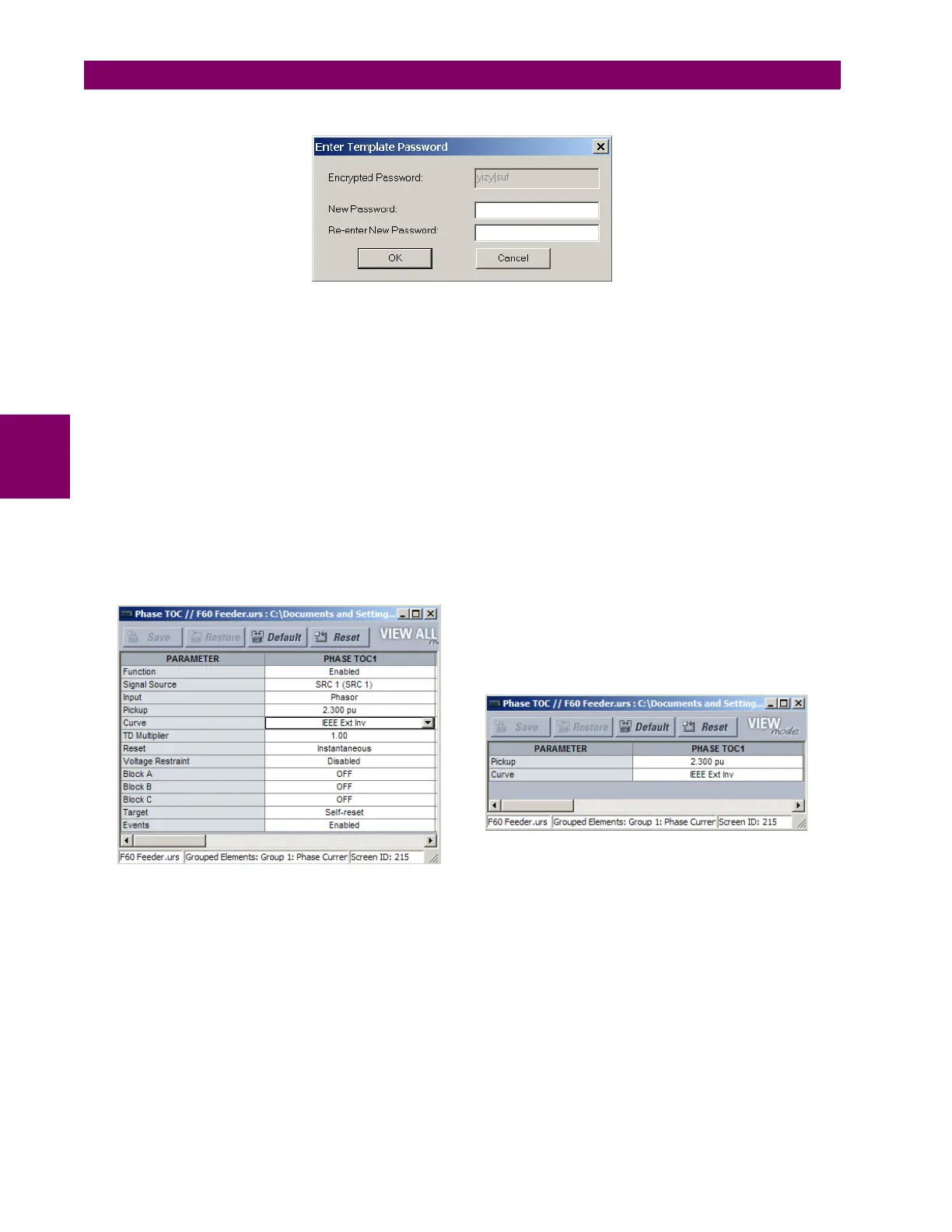

Figure 4–4: APPLYING TEMPLATES VIA THE VIEW IN TEMPLATE MODE COMMAND
Phase time overcurrent settings window without template applied.
Phase time overcurrent window with template applied via
the command.
The template specifies that only the and
settings be available.
Template Mode > View In Template Mode
Pickup Curve
842858A1.CDR
