GE Multilin L30 Line Current Differential System 3-5
3 HARDWARE 3.1 DESCRIPTION
3

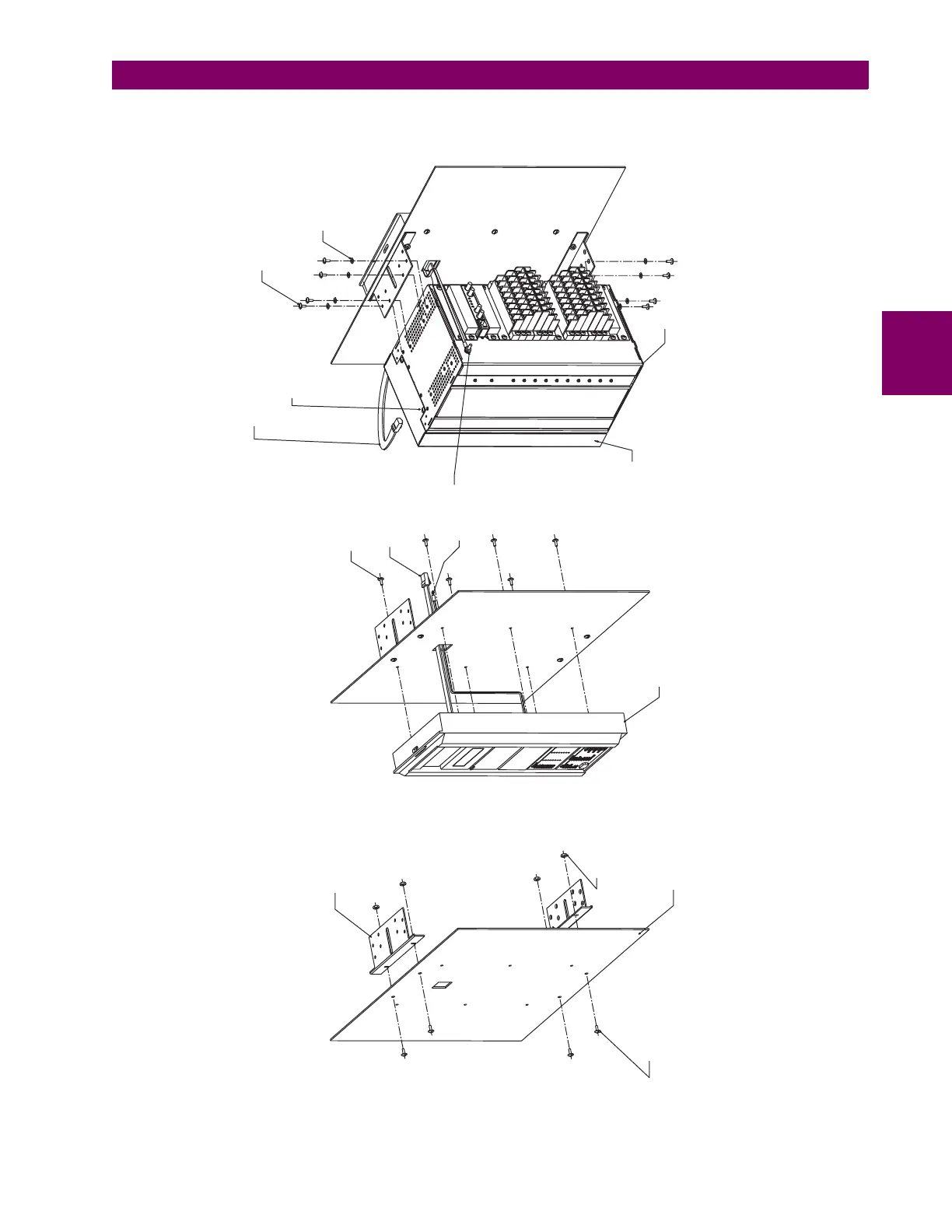

Figure 3–6: L30 VERTICAL SIDE MOUNTING INSTALLATION (STANDARD PANEL)
PANEL
UR 19" MOUNTING BRACKET
UR-V FRONT BEZEL ASSEMBLY
#6x1/2" PAN PHILIPS HEAD BLACK OXIDE PLASTITE SCREW
#10-3/8" PAN PHILIPS HEAD
ZINC P/N: 1410-0006 4 PLACES TO MOUNT THE
BRACKETS
STEP 3
MOUNT FRONT BEZEL TO
PANEL
STEP 2
MOUNT BRACKETS TO
PANEL
#10-32 NYLOCK NUT P/N: 1422-1032 4 PLACES
#8-3/8" PAN PHILIPS HEAD
BLACK OXIDE SCREW
P/N: 1408-0306 8 PLACES TO MOUNT THE UNIT
#8 LOCKWASHER EXTERNAL TOOTH P/N: 1435-0002 8 PLACES TO MOUNT
STEP 4
ASSEMBLE UR-V UNIT
TO MOUNTING BRACKETS
UR-V UNIT
STEP 1 - CREATE THE HOLES AND CUT-OUT INTO THE PANEL AS PER DRAWING 843753.
PLUG THE DISPLAY CABLE INTO
THE FRONT BEZEL BEFORE MOUNTING THE UNIT ON THE PANEL
DISPLAY CABLE
GROUND CABLE ATTACH CABLE TO
FRONT BEZEL
BEFORE MOUNTING FRONT BEZEL ON THE PANEL
SIDE MOUNT COVER
P/N: 1004-0018
#8-3/8" PAN PHILIPS HEAD BLACK OXIDE SCREW
843757A2.cdr
