GE LOGIQ C5 User Manual

LOGIQ C5/C5 PRO Quick Guide Direction 5272220-100 Rev. 2 2
Control Panel Tour
LOGIQ C5/C5 PRO Keys
Top/Sub Menu Key Tour
Top Menu Control
In general, there are two types of Top Menu keys:
Paddle Switch and adjustable knobs.
1. Press the adjustable knobs to toggle option
menu between line one and line two.
2. Rotate the adjustable knobs to adjust the
corresponding parameters.

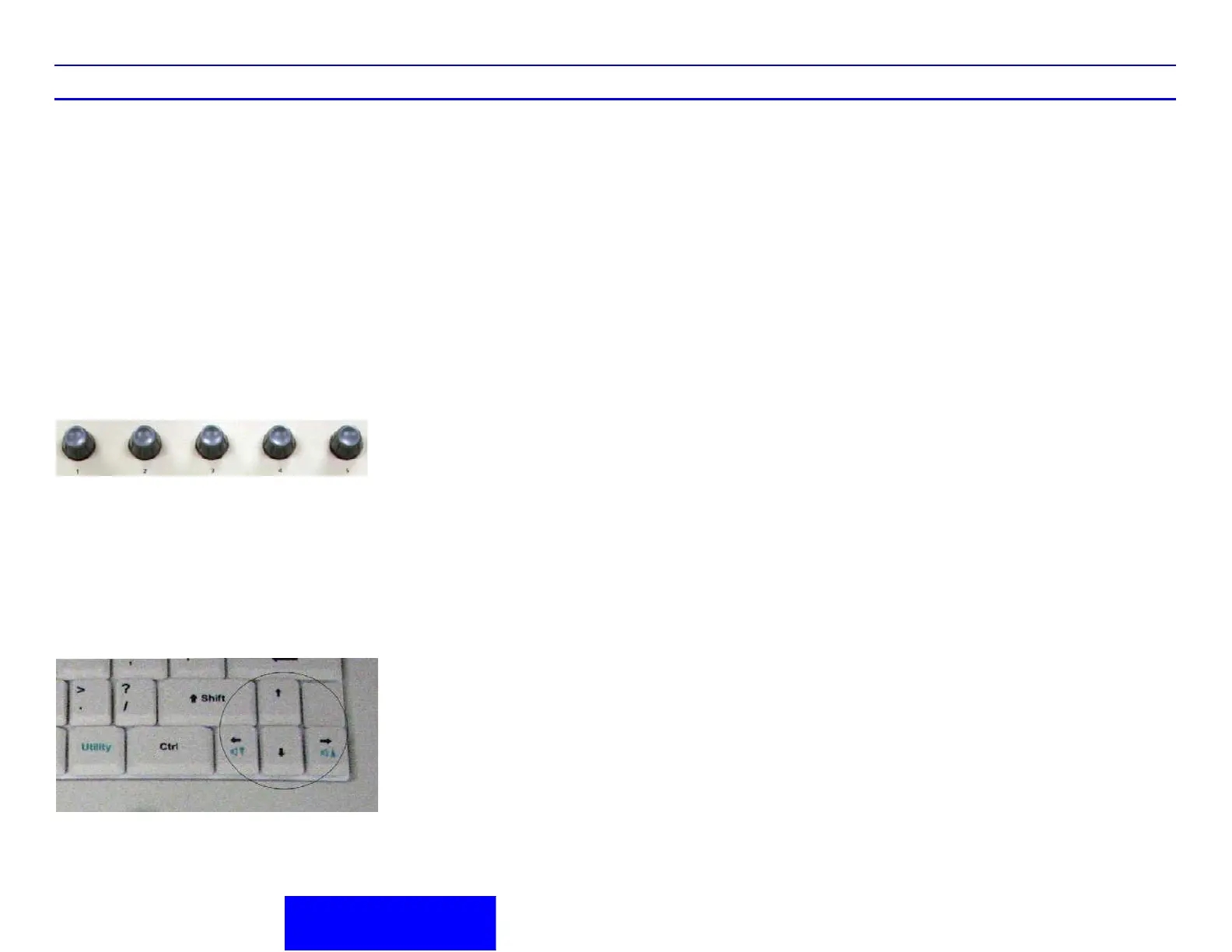

Figure 2. Top Menu Key
Sub Menu Control
1. Press F5 on the keyboard to activate Sub
Menu,
2. Use the Direction keys to toggle/change
functions
Figure 3. Sub Menu Key
Function Keys - Programmable Keys
• F1 = Help (Enter Online Help / User Manual)
• F2 = Arrow (Annotation Arrow)
• F3 = Eject (Eject media)
• F4 = Spooler (Activates DICOM Job Spooler
screen)
• F5 = Activate Sub Menu
• F6 -F12 Programmable
How to Program your programmable
keys
<Utility> - <Admin> - <Function Key>, then use the
drop down menu.
Choices for program Keys
• WorkSheet
•3D
• LOGIQ View
• ECG On/Off
•Set Home
• Text Overlay
• Grab Last
• Word Delete
Shortcut keys
• Ctrl + Alt + R: Restart the system
• Ctrl + E: Eject
How to Program your hot keys
<Utility> - <Admin> - <Function Key>, <Hot Key>
then use the drop down menu.
Choices for hot keys
• No function
• Biopsy Guide
• Save as
• Active Image
• Measurement Select
• Auto Doppler Calculation
• Auto Trace
• DVD Format
• Range Focus
•OB Graph
• Measurement All Clear
•ATO
