GE LOGIQ F SERIES
D
IRECTION 5446617-100, REVISION 10 BASIC SERVICE MANUAL
3 - 16 Section 3-6 - System Configuration
3-6-5-3 Connect Peripherals (cont’d)
B.) Connect UP-D25MD color printer to the system. UP-D25MD Color Printer can be properly
connected using the isolated USB Port. And connect the power cable of UP-D25MD to the wall
outlet.
C.) Connect the B/W printer (Sony UP-897/UP-D898MD)to the system
The B/W printer can be properly connected using the isolated USB Port. And connect the power
cable of Sony UP-D897/UP-D898MD to the wall outlet.

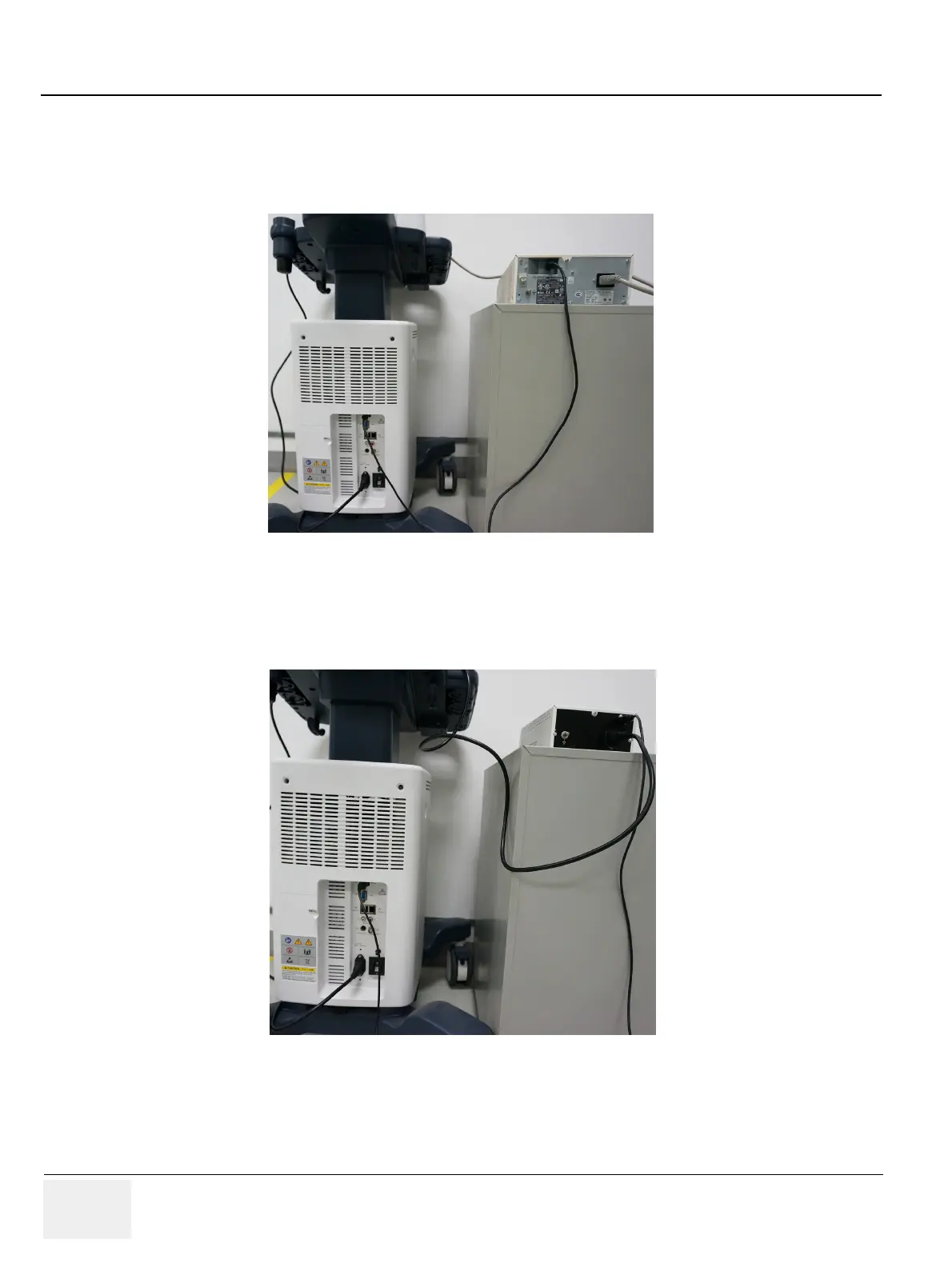

Figure 3-9 Connect color printer to the system
Figure 3-10 Connect B/W Printer (Sony UP-897) to the system
