GE LOGIQ V5

GE LOGIQ V5/LOGIQ V3
D
IRECTION 5496012-100, REVISION 3 BASIC SERVICE MANUAL
Chapter 3 - System Setup 3 - 17
3-6-5-3 Connect Peripherals
A.) Connect B/W printer to the system.
Sony UP-D711MD Printer can be properly connected using the STD and DC cables.
Sony UP-D711MD is connected to the LOGIQ V5/LOGIQ V3 system via the STD and DC cables under
the control panel.

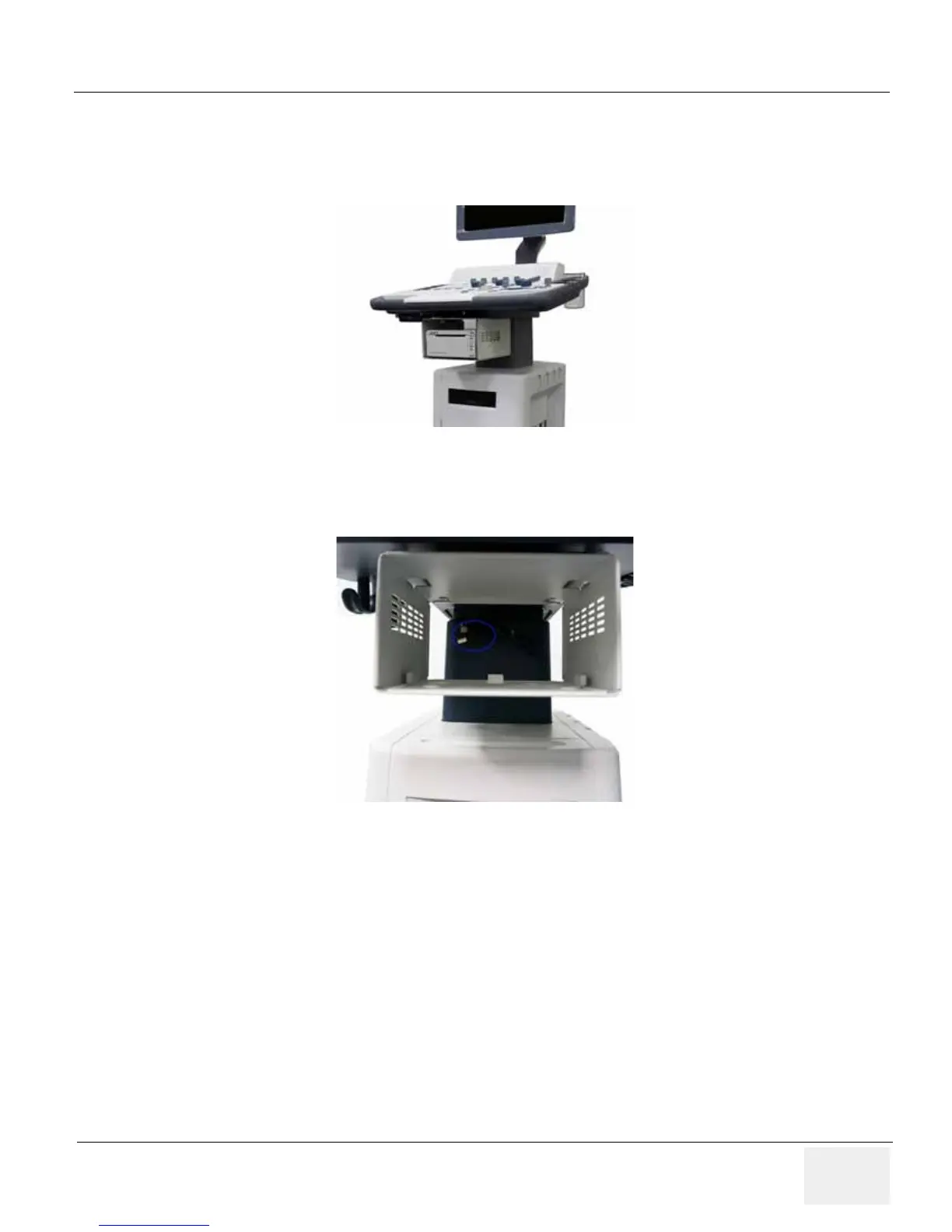

Figure 3-6 Connect B/W printer to the system
Figure 3-7 STD cable location
