GE LOGIQ V5 Service Manual

GE LOGIQ V5/LOGIQ V3
D
IRECTION 5496012-100, REVISION 3 BASIC SERVICE MANUAL
Chapter 3 - System Setup 3 - 21
3-6-5-3Connect Peripherals (cont’d)
F.) Connect the USB Memory to the system. The USB Memory can be properly connected using the
USB ports.
G.) Connect the USB HDD to the system. The USB Harddisk can be properly connected using USB
ports.

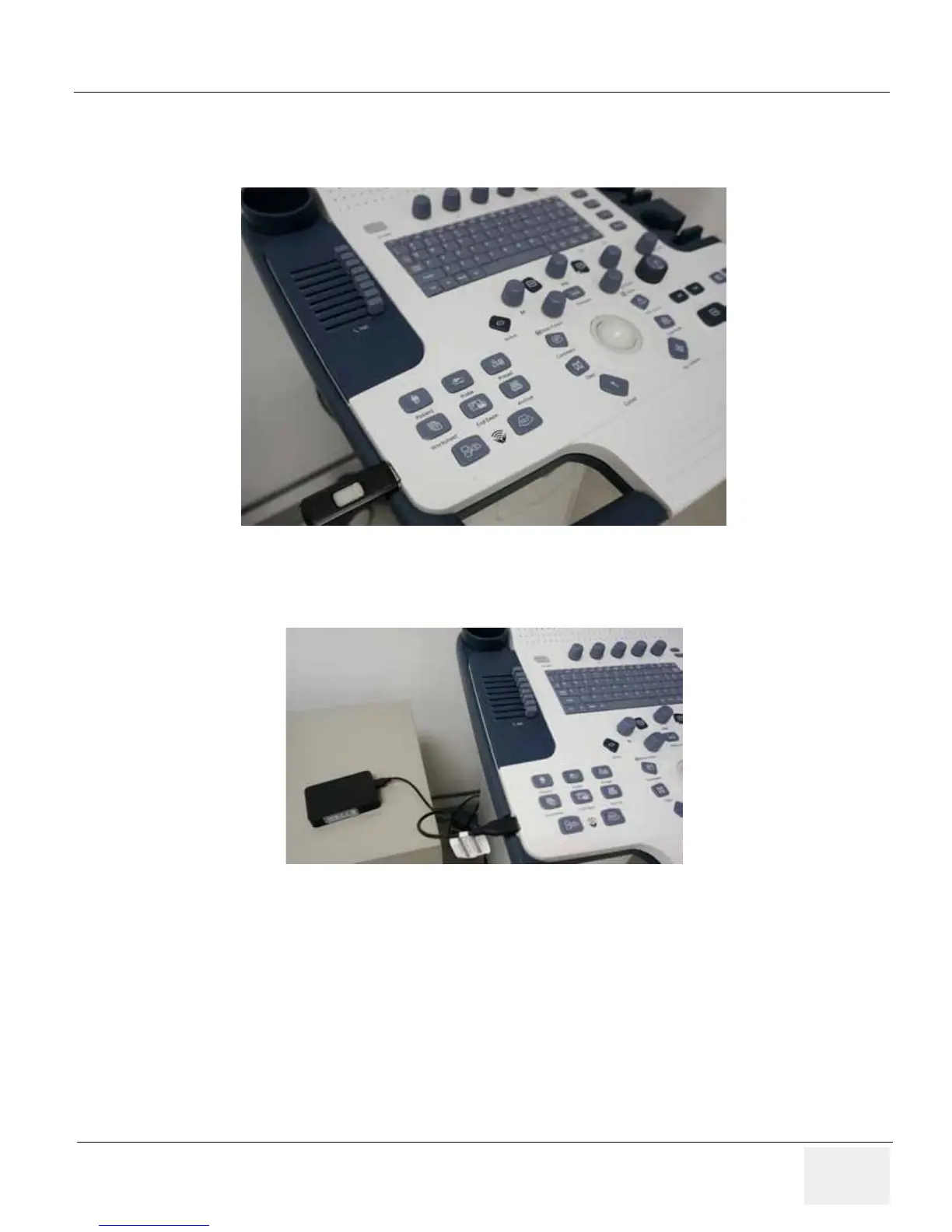

Figure 3-12 USB Memory Connection
Figure 3-13 USB Hard Disk Connection

GE LOGIQ V5 Specifications

General

Brand	GE
Model	LOGIQ V5
Category	Medical Equipment
Language	English
