3.3 Use: Status and Alarm Indications
o
= status indications : the operating mode
!
= low priority alarms : abnormal operating situations
!!
= high priority alarms : situations in which
the actual output voltage of the UPS is no longer
guaranteed
; immediate action should be taken

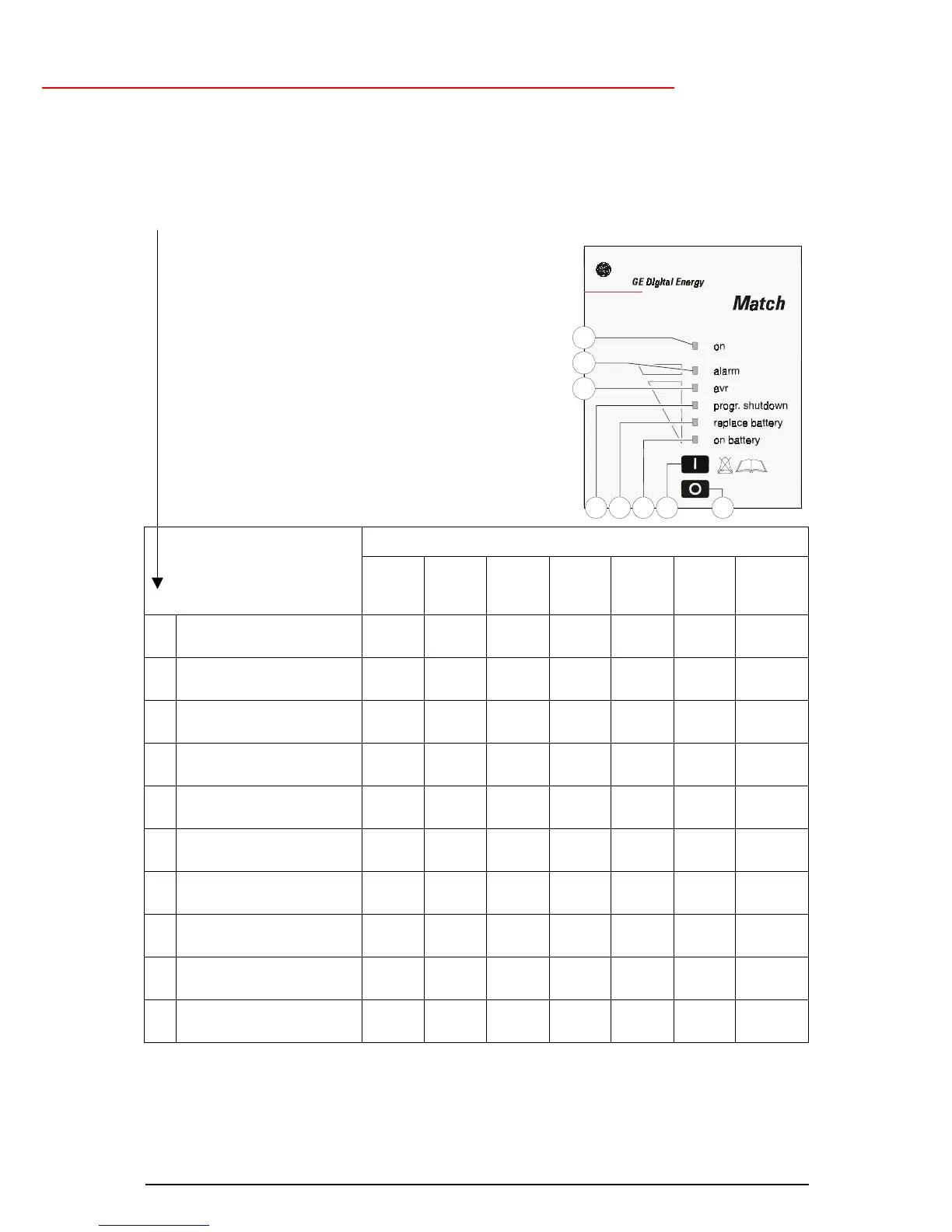

Indicators on front panel
Situation
on alarm avr
progr.
shutd.
repl.
batt.
on
batt.
buzzer
o Charger on
(3.3.1)
- - - -
o Normal operation
(3.3.2)
##
####
##
o Automatic voltage
regulation
(3.3.3)
##
####
##
- - - -
! On battery
(3.3.4)
##
####
## ##
####
##
- - - -*
1x/8 s.
!! Battery low
(3.3.5)
##
####
##
- - - -
##
####
##
- - - -*
1x/s.
! Replace battery
(3.3.6)
##
####
## ##
####
##
!! Overload
(3.3.7)
##
####
##
- - - -
##
####
##
!! High temperature
(3.3.8)
##
####
##
- - - -
- - - -*
1x/s.
o Progr. shutdown
pending
(3.3.9)
##
####
##
- - - -
o Progr. shutdown in
progress
(3.3.9)
- - - -
##
####
##
Operating modes and corresponding indications, see 3.3.1. – 3.3.9.
- - - - = intermitting
##
####
##
= continuous
* = resetable: press push button ‘I’ > 2 secs.
fig. 6
7
8
9
10 11 12 13 14
