16 THE BASIC REVERSE OSMOSIS SYSTEM
Rev J
When all of the connections have been made, use the locking bar to hold the
fittings in position. Match the symbols on the locking bar to the corresponding
symbols on the manifold.

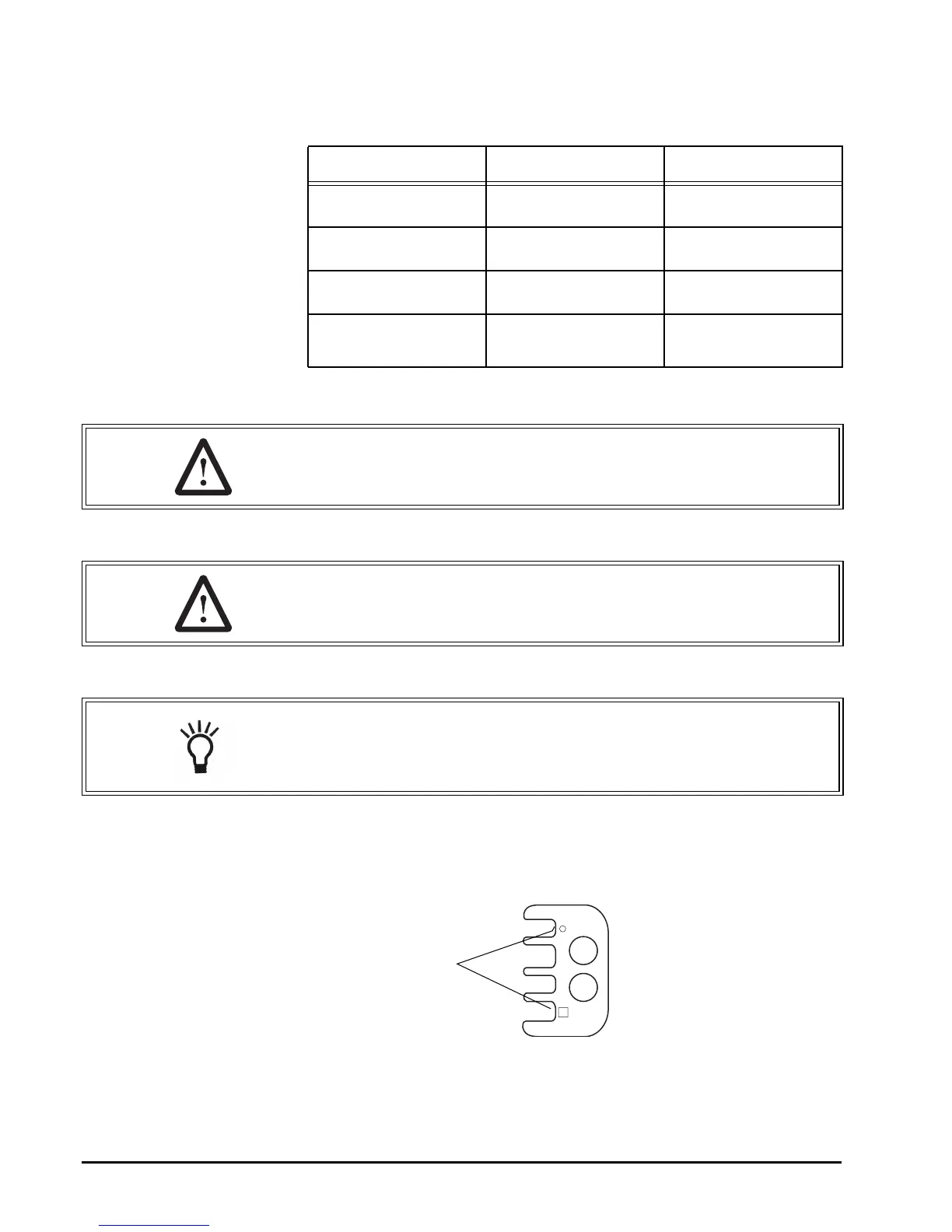

Figure 7 Locking Bar
Connector Symbol Connection Tubing Color
O
Flushing (optional) Blue
C
Feed-Inlet Natural
U
Concentrate Black
î
Product Blue
WARNING: Be sure to lubricate the O-rings on the fitting elbows with
silicone lubricant, prior to inserting into manifold.
WARNING: Do not turn the incoming water valve on until the locking
bar is in place.
NOTE: If the installation is not using the optional flush tank, the top
connection will not have tubing. Instead a plug will be inserted into the
fitting. Do not remove plug unless you are attaching the tubing and the
flush tank.
