GE Merlin Installation And Maintenance Manual

8 THE BASIC REVERSE OSMOSIS SYSTEM
Rev J

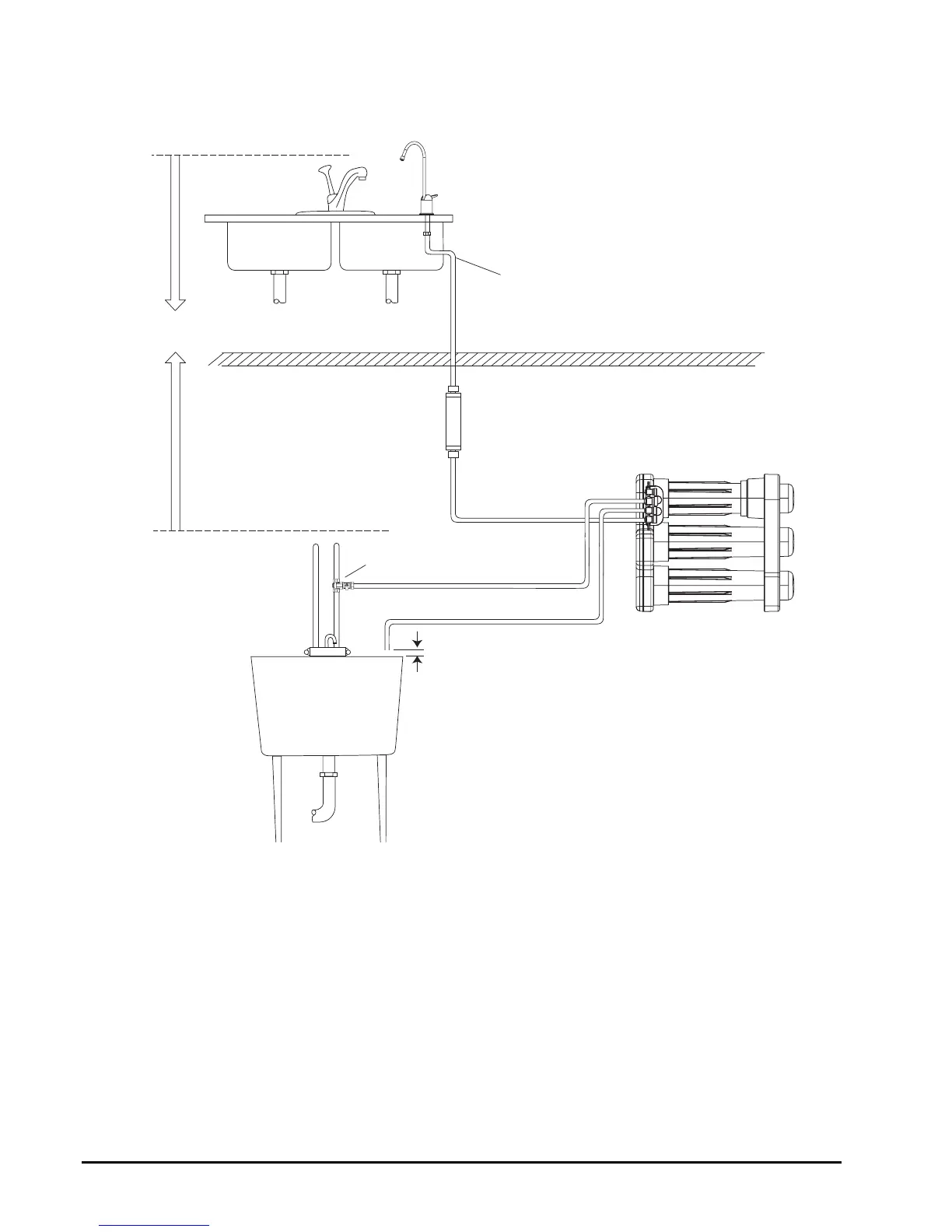

Figure 2 Typical Basement Installation
Floor
Dispensing Faucet
without Air Gap
1.5" Air Gap Required
Inlet-1/2" Natural
Drain - 3/8" Black
Feed Water Valve
Cold Water Line Only
Carbon Postfilter
Product - 3/8" Blue
RO Assembly
Note: If a flush tank is not
installed the manifold
connection must remain
plugged. Removal of
plug will cause a system
leak.
Keep to Minimum
