GE Merlin Installation And Maintenance Manual

THE BASIC REVERSE OSMOSIS SYSTEM 9
Rev J

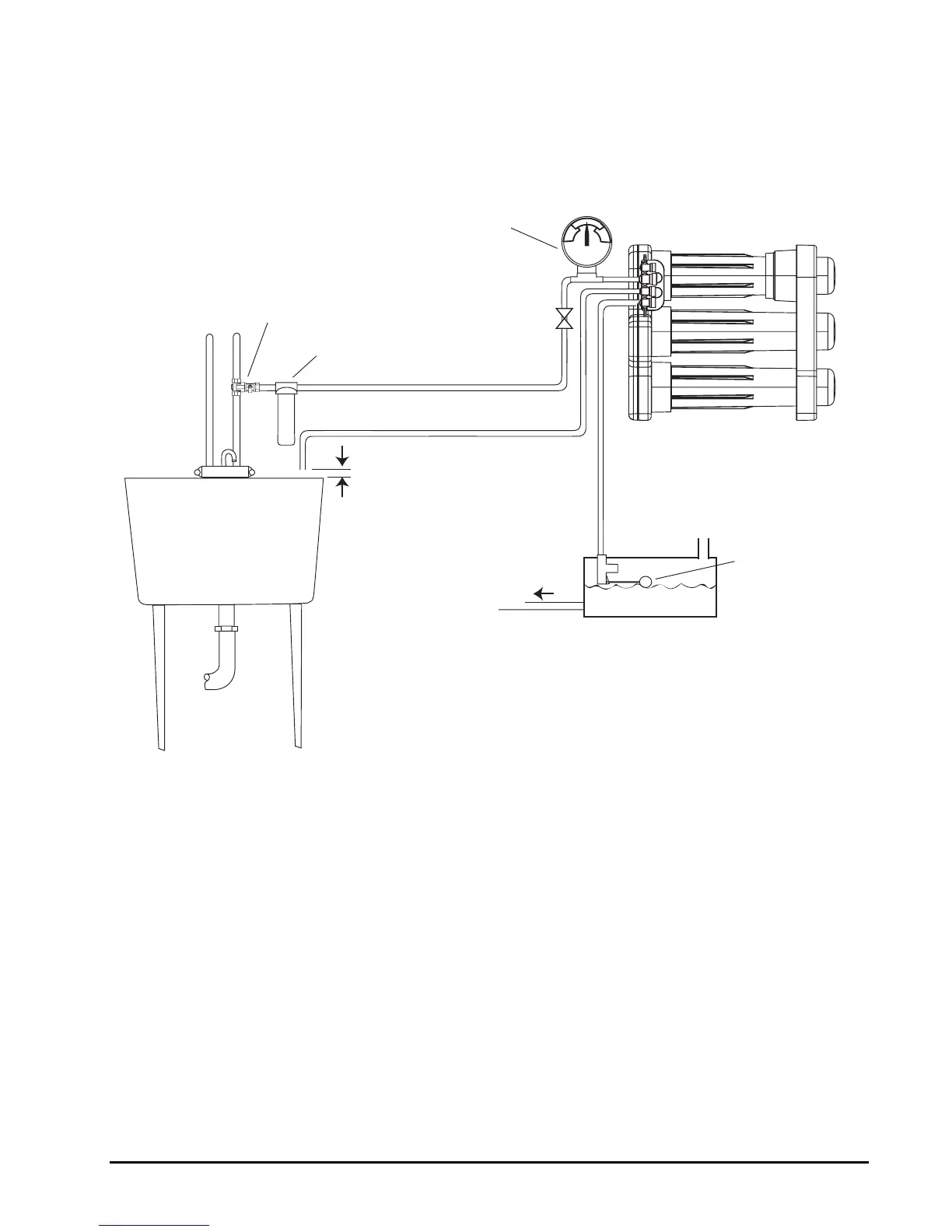

Figure 3 Typical Light Commercial Installation
1.5" Air Gap Required
Inlet-1/2" Natural
Drain - 3/8" Black
Feed Water Valve
Cold Water Line Only
Feed Pressure
Gauge
RO Assembly
Note: If a flush tank is not
installed the manifold
connection must remain
plugged. Removal of
plug will cause a system
leak.
External Prefilter
Product Storage Tank
To Point of Use
Vented to
Atmosphere
Liquid level float
sensor to control
feed solenoid valve
Feed Solenoid
Valve
