30 3 SERIES RETROFIT – INSTRUCTION MANUAL
CONVERTING MIN II 67IG1 TO 350 32N CHAPTER 2: CONVERTING SETTINGS FILES
2.5.1 Mapping settings

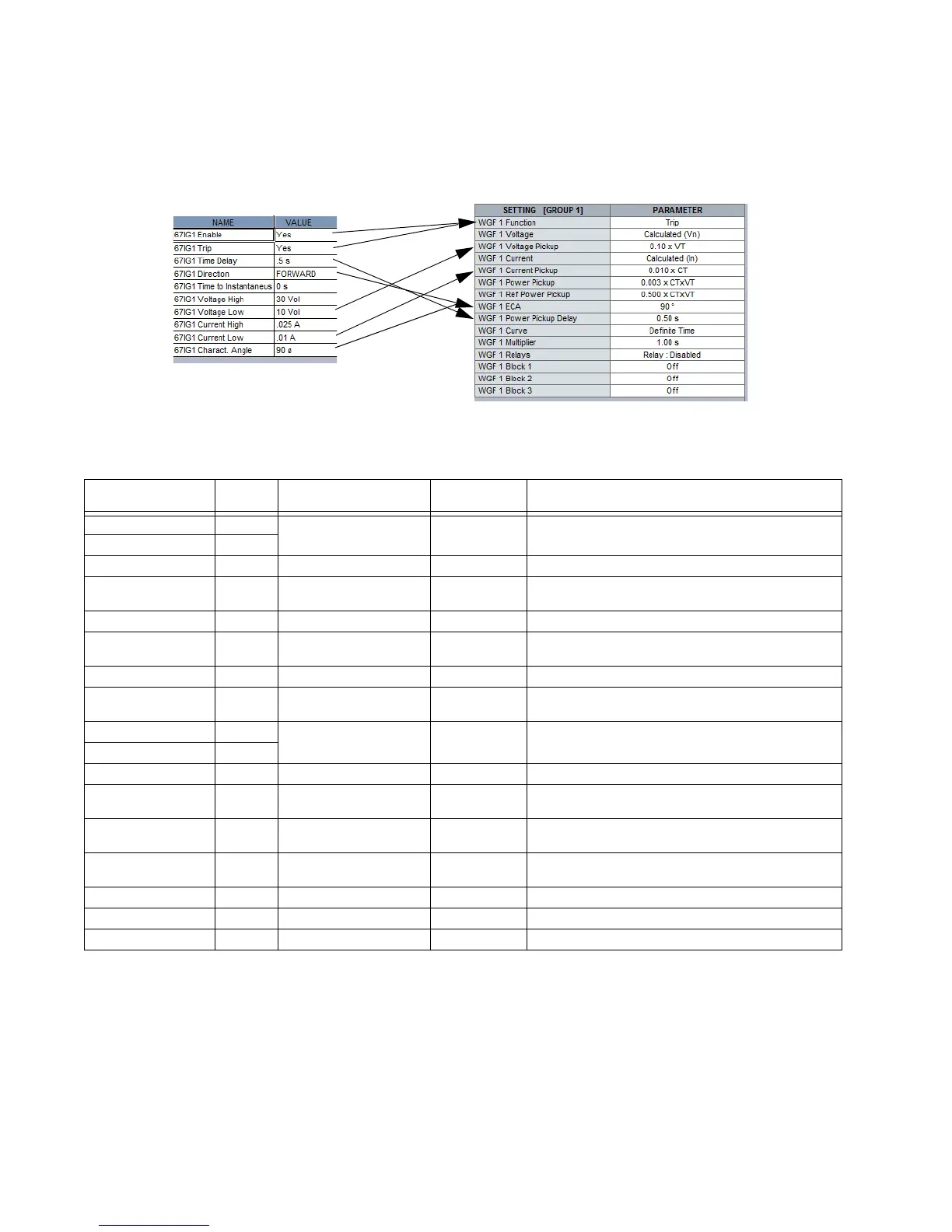

Figure 2-2: Sample settings screens
MIN II Settings
350 Settings
Table 2–2: Enervista setting conversion
67IG1 (MIN II) 67IG1
(MIN II)
32N WGN1 (350) 32N WGN1
(350)
Notes
67IG1 Enable Ready WGN 1 Function Trip
67IG1 Trip Ready
WGN 1 Voltage Calculated (Vn)
67IG1 Voltage Low 10 Volts WGN 1 Voltage PKP 0.1 x VT convert V to x VTn
(for example, if Vn = 100 V, the new setting is 0.1 x VT)
WGN 1 Current Calculated (In)
67IG1 Current Low 0.01 A WGN 1 Current PKP 0.01 x CT convert 0.01 A to x CTn
(for example: if CTn = 1 As the new setting is 0.01 xCT)
WGN 1 Power PKP 0.003 xCTxVT enter in x CTxVT as explained below
WGN 1 Ref Power PKP 0.500 xCTxVT Applicable only if Curve is selected under WGN 1
Curve
67IG1 Direction Forward WGN 1 ECA 90° setting the ECA angle to 90 deg. provides for
FORWARD direction (positive power)
67IG1 Charact. Angle 90°
67IG1 Time Delay 0.5 s WGN 1 Power PKP Delay 0.5 s
WGN 1 Curve Definite Time Applicable only if Curve is selected under WGN 1
Curve
WGN 1 Multiplier 1 s Applicable only if Curve is selected under WGN 1
Curve
WGN 1 Relays Relay:
Disabled
WGN 1 Block 1 Off
WGN 1 Block 2 Off
WGN 1 Block 3 Off
