CHAPTER 3: INSTALLING THE 3 SERIES RELAY 239 DIMENSIONS
3 SERIES RETROFIT – INSTRUCTION MANUAL 43
3.3 239 dimensions
Multilin 239 relays do not have panel cutouts compatible with the 3 Series relays, and
require panel modification in order to retrofit with 3
Series relays. Depth reducing collars
are available for the 3
Series relays if space is limited. Refer to section 3.1 3 Series
dimensions and mounting for details.

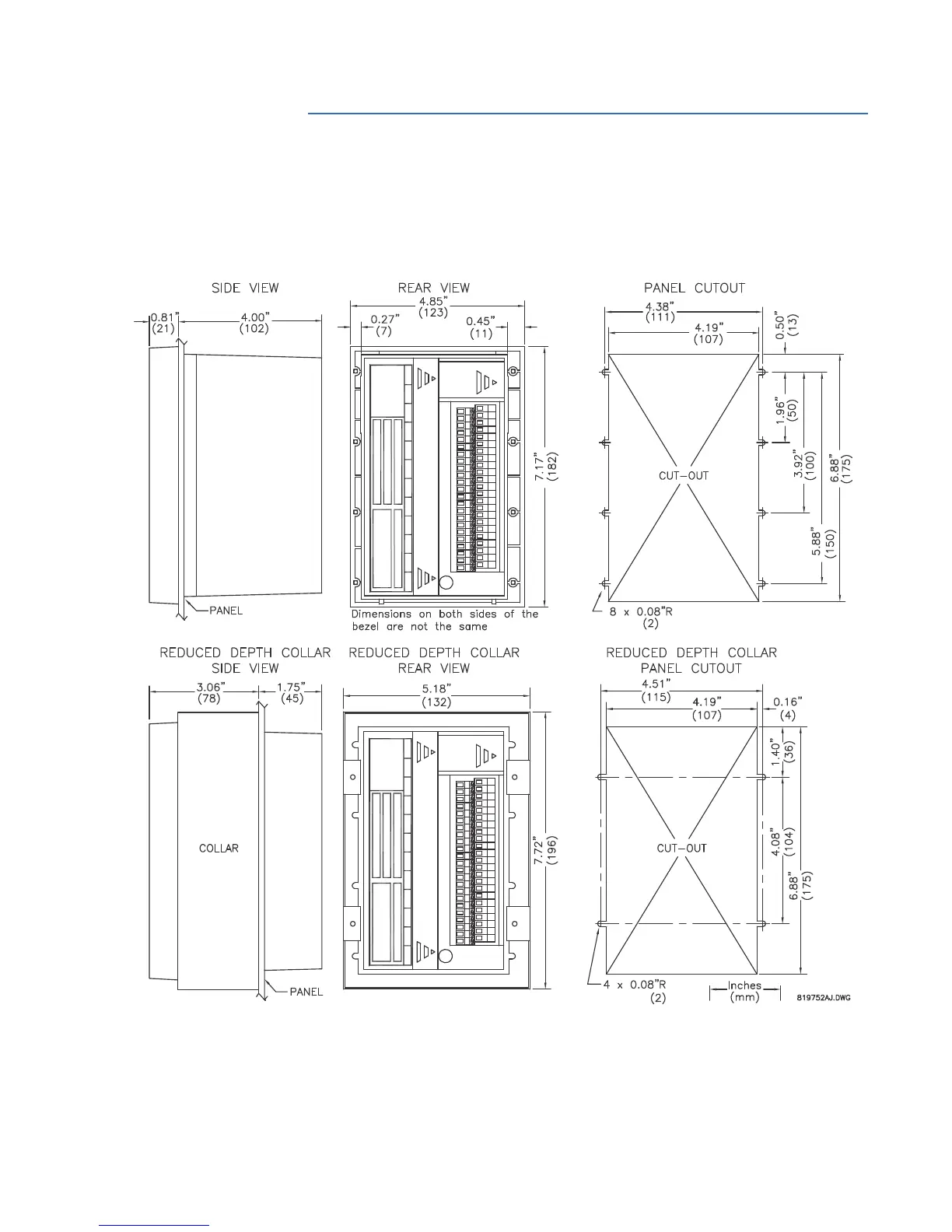

Figure 3-5: 239 dimensions and cutout
