CHAPTER 3: INSTALLING THE 3 SERIES RELAY M AND MII FAMILY RELAYS
3 SERIES RETROFIT – INSTRUCTION MANUAL 37
3.2.1 M Family of relays
Most of the M Family of relays (MIF, MIG, MIN, and MIW), like the MII Family, have a slightly
larger cutout panel than the 3
Series relays, and uses four mounting screws from the front
to secure the relay.
The MIV relay has a smaller cutout panel than the 3 Series relays.
Note
Replacing an MIV relay with a 3 Series relay requires panel modification.

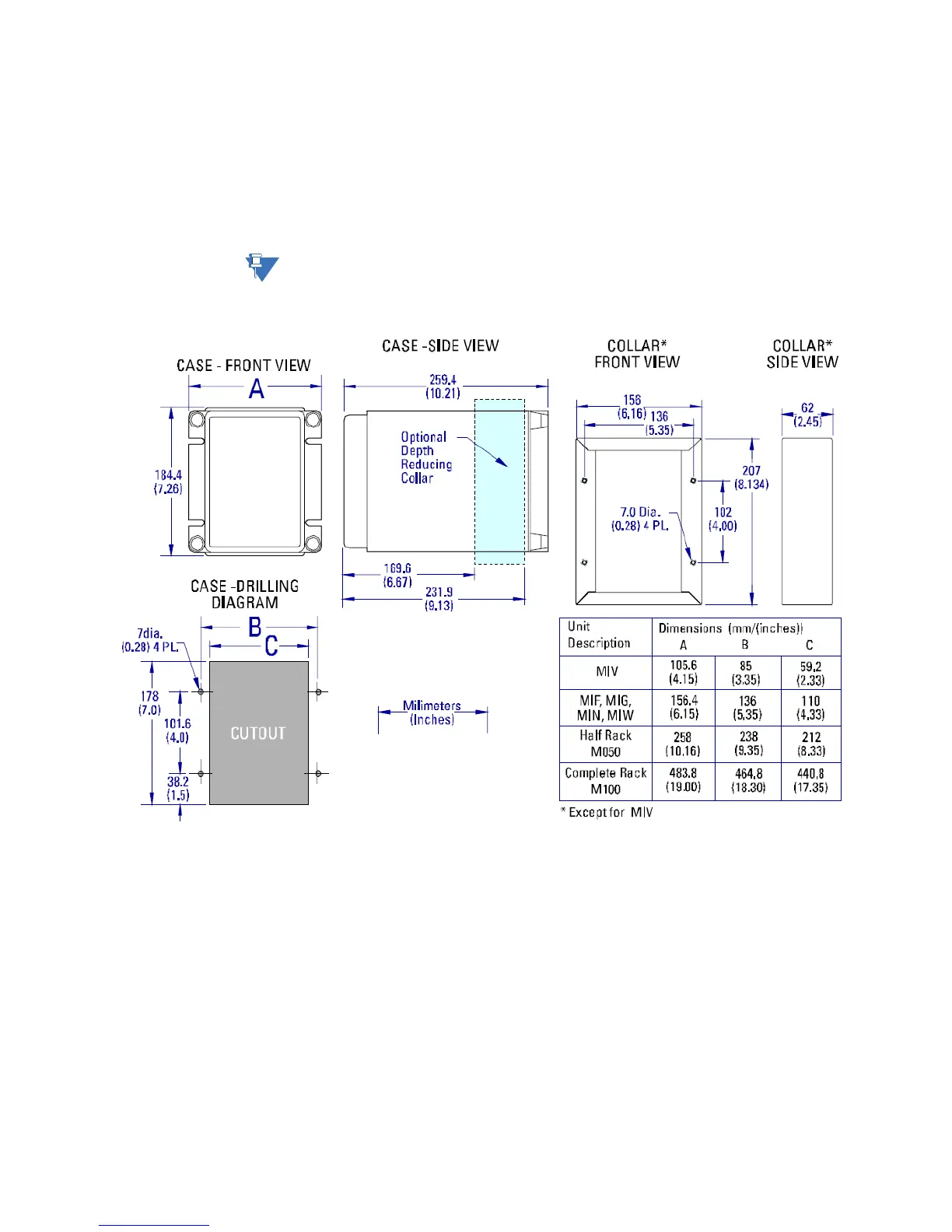

Figure 3-3: M Family: MIF, MIG, MIN, MIW, MIV (note MIV is smaller)
