To transfer the refrigerator door handle:
Refer to
Refrigerator Door Handle section for
instructions.
To transfer the refrigerator and freezer door
stops:
Remove the door stop (A) on right side of the 1.
bottom of the door by removing the two screws.
Move the plastic hinge hole thimble (B) to the 2.
opposite hole.
Install the door stop on the left side (C), making 3.
sure to line up the screw holes in the door stop
with the holes in the bottom of the door.
Bottom of
Refrigerator Door
(Right Side)
Bottom of
Refrigerator Door
(Left Side)

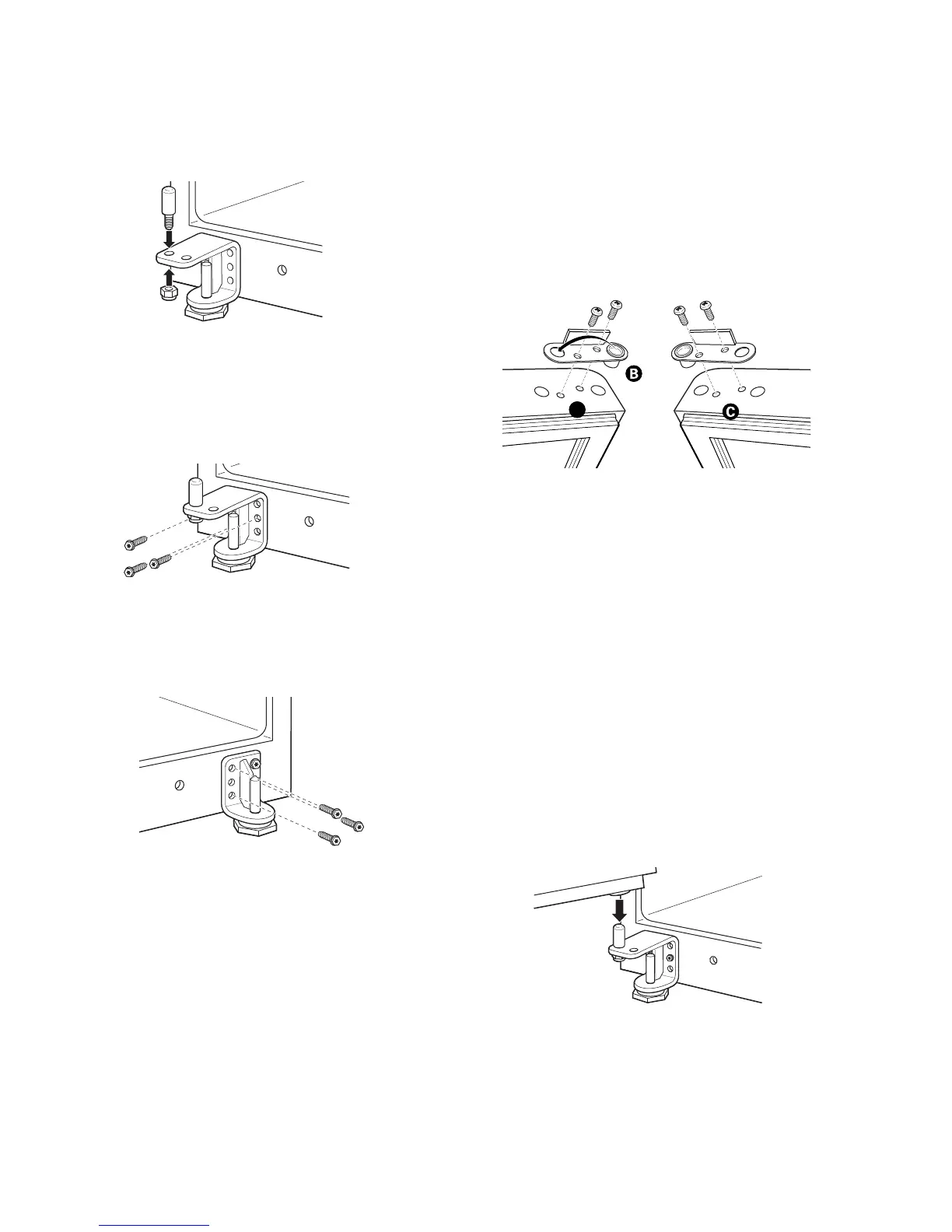

To install the bottom hinge and leveling leg:
(Models with freezer door)
Using a 1/2-in. socket ratchet/driver, install the 1.
hinge pin and nut in the opposite hole on the
hinge bracket with leveling leg.
Using a 5/16-in. socket ratchet/driver, install the 2.
hinge bracket with leveling leg on the left side
of the refrigerator. The pin will be toward the
outside of the refrigerator.
Using a 5/16-in. socket ratchet/driver, install 3.
the leveling leg bracket on the right side of the
refrigerator.
To rehang the freezer door:
(Models with freezer door)
Lower the freezer door onto the bottom hinge 1.
pin. Ensure that the plastic hinge pin thimble
is on the hinge pin or inside the door hinge pin
hole located in the bottom of the door.
