– 9 –

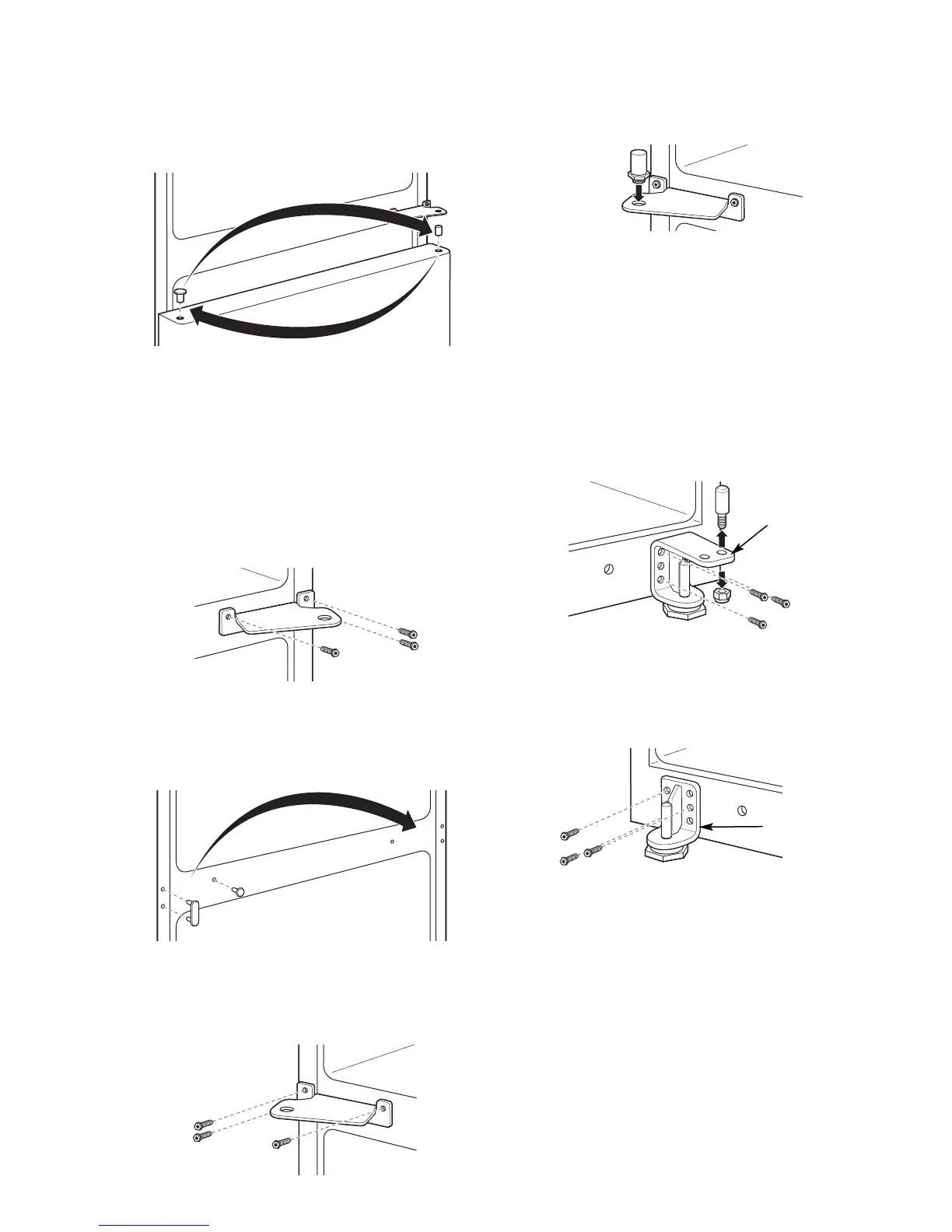

To transfer the center hinge bracket:
Using a 5/16-in. socket ratchet/driver, remove 1.
the bolts securing the center hinge to the
cabinet. Set the bolts aside.
Transfer the plug button and screw hole cover in 2.
the hinge holes on the left side to the right side.
3. Install the new center hinge bracket from the kit
on the left side.
To remove the bottom hinge and leveling leg:
(Models with freezer door)
Using a 1/2-in. socket ratchet/driver, remove the 1.
nut and hinge pin from the hinge bracket with
leveling leg. Using a 5/16-in. socket ratchet/
driver, remove the screws from the bottom hinge
bracket. These will be reinstalled on the other
side.
(Continued next page)
Remove the button plug from the left side of the 4.
door. Remove the door thimble from the right
side of the door. Install the door thimble into the
hole on the left and the button plug into the hole
on the right.
Set the door on a non-scratching surface, with 5.
the inside up.
To install the center hinge pin:
(Models without freezer door)
Install the hinge pin into the new hinge bracket.
Bottom Hinge
Bracket
Using a 5/16-in. socket ratchet/driver, remove 2.
the screws from the leveling leg bracket on
the other side. These will be reinstalled on the
opposite side.
Leveling Leg
Bracket
To Next Page
