21

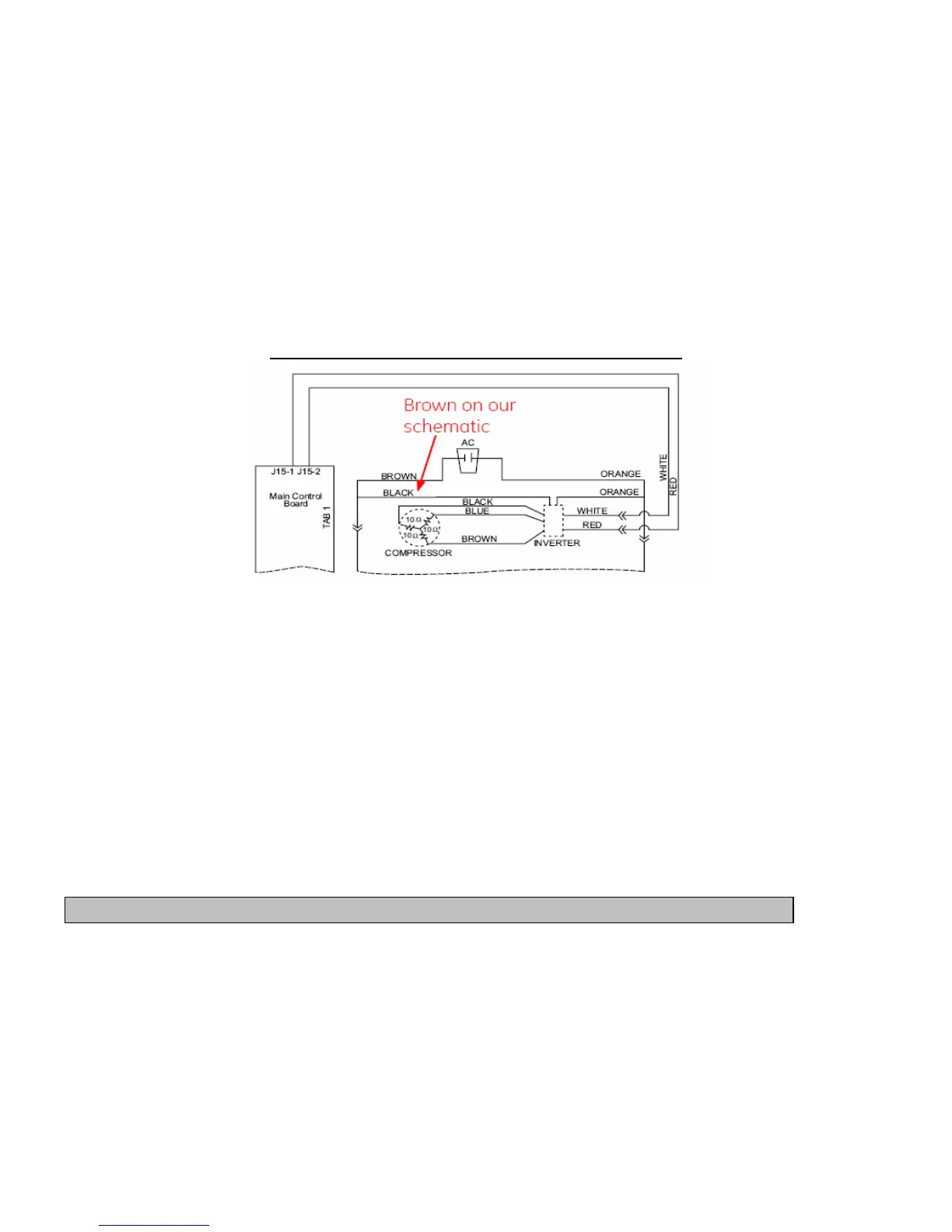

Inverter Compressor (cont.)
Compressor speed is based on the temperature set point in conjunction with the
specific cabinet temperature. Speeds are selected according to the following
cabinet temperatures, with freezer temperature being the primary:
• 7°F to 19.5°F above freezer set point = high speed.
• 4.5°F to 6.5°F above freezer set point = medium speed.
• 1°F to 4°F above freezer set point = low speed.
• 1°F to 2.5°F above refrigerator set point = low speed.
mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE. January 2008
