Airflow

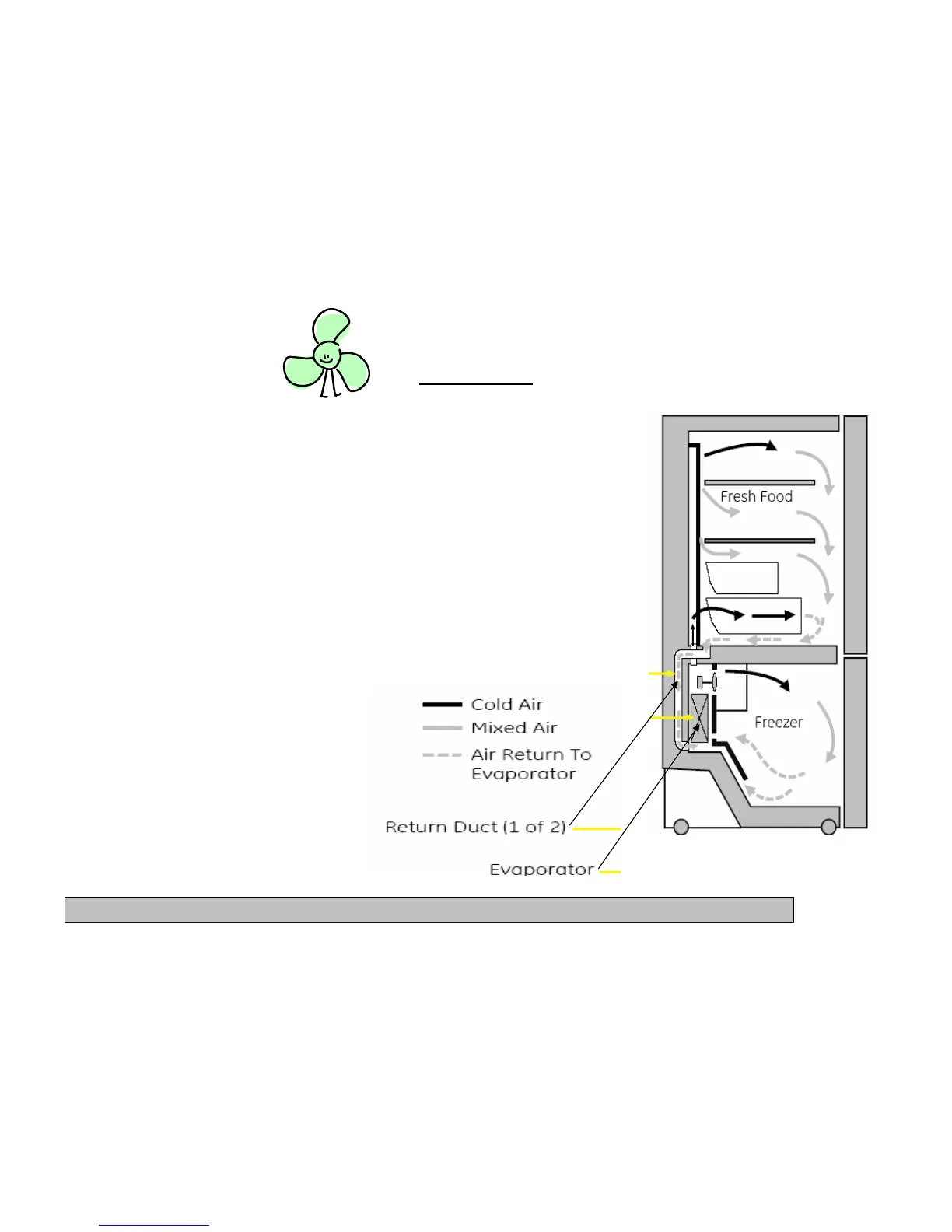

The evaporator fan forces air through the evaporator into
the freezer compartment. Air from the evaporator is also
forced through the electronic damper to the air tunnel outlet,
through the fresh food compartment, and returns to the
evaporator. The fresh food compartment receives chilled air
through an electronic damper at the bottom, rear of the
fresh food compartment. The damper is controlled by the main
control board. When open, the damper allows chilled air from
the freezer to move into the fresh food compartment.
Air returns from the fresh food compartment to the freezer
compartment via two vents located to the left and right of the
electronic damper.
mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE. January 2008
