How to access the evaporator
The following components must be removed in the appropriate order to access
the evaporator:
1. Unplug the refrigerator.
2. Pull out and remove the ice bin and shelf.
3. Remove the freezer shelves and baskets.

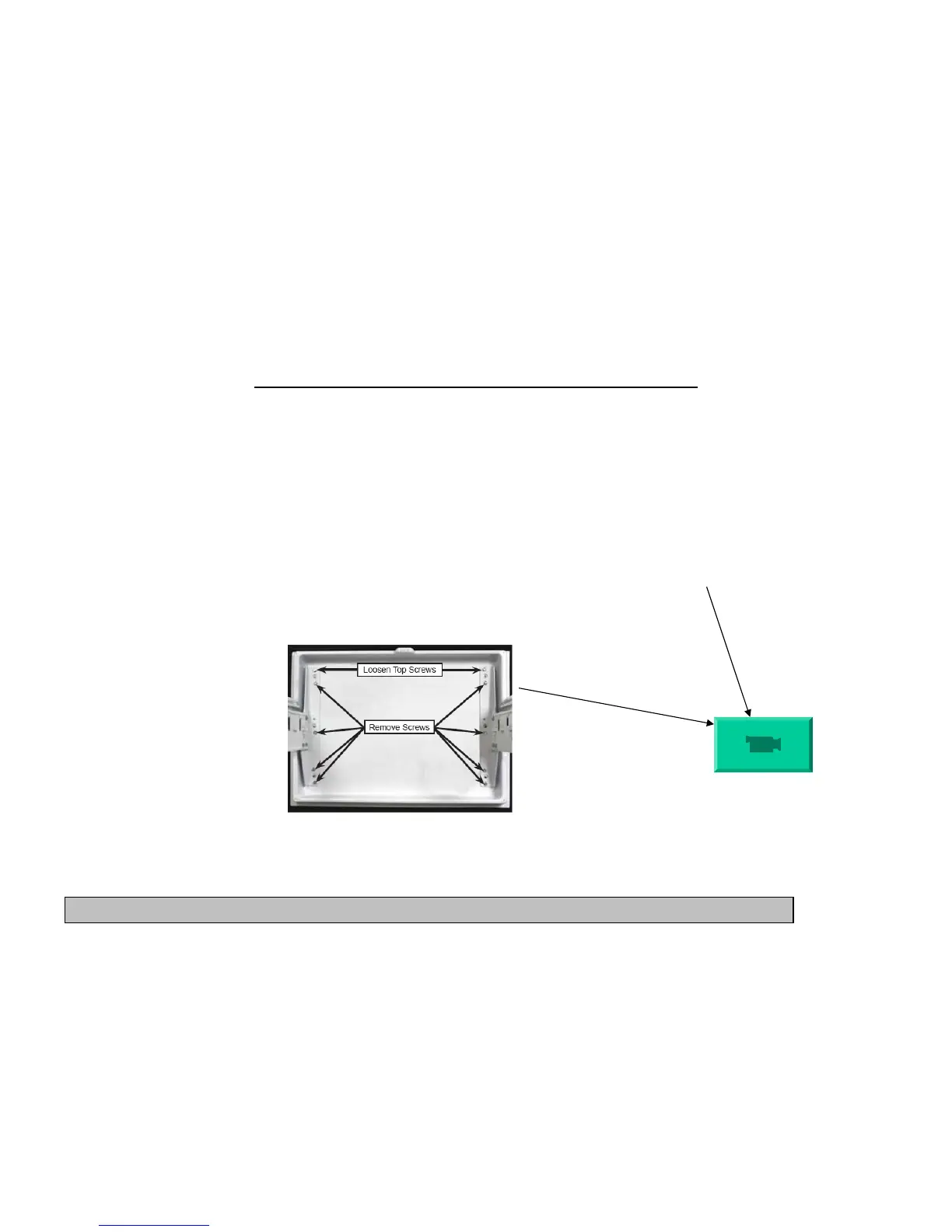

4. Loosen the top two 3/8 -in. hex-head screws 1 full turn, then remove the
remaining 8 3/8 -in. hex-head screws that attach the drawer front to the
rail assemblies.
Note: Do not remove the 6 torx screws from the rail assemblies.
5. Lift and remove the drawer front and place it on a protected
surface.
