8

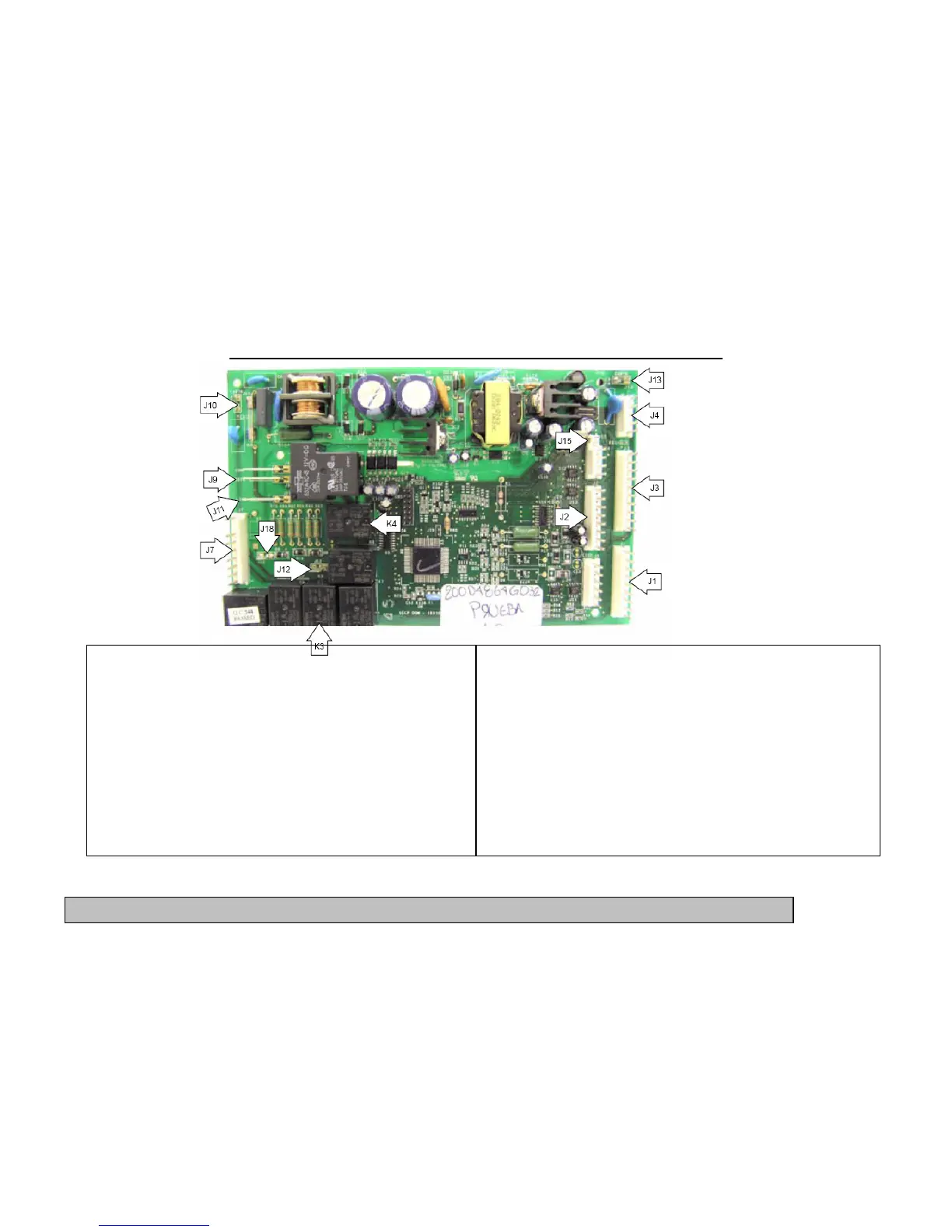

Control Board Connector Locator
J10 and J13 - Earth (Ground)
J9 - Defrost heater, fill tube heater, return
duct heaters
J11 -Line (L1)
J7 - FF light thermostat, FZ light thermostat,
dispenser water valve (French door models
only)
J4 - Display board
J3 - Damper
J1 - Fresh food thermistor, freezer thermistor,
freezer evaporator thermistor, ambient
temperature thermistor, model selector
J15 – Inverter
J2 - Fan common, evaporator fan, condenser
fan, mullion bar heater, model selector
mabe CONFIDENTIAL AND PROPRIETARY INFORMATION-NOT FOR PUBLIC DISCLOSURE. January 2008
