49-2000989 Rev. 2 33

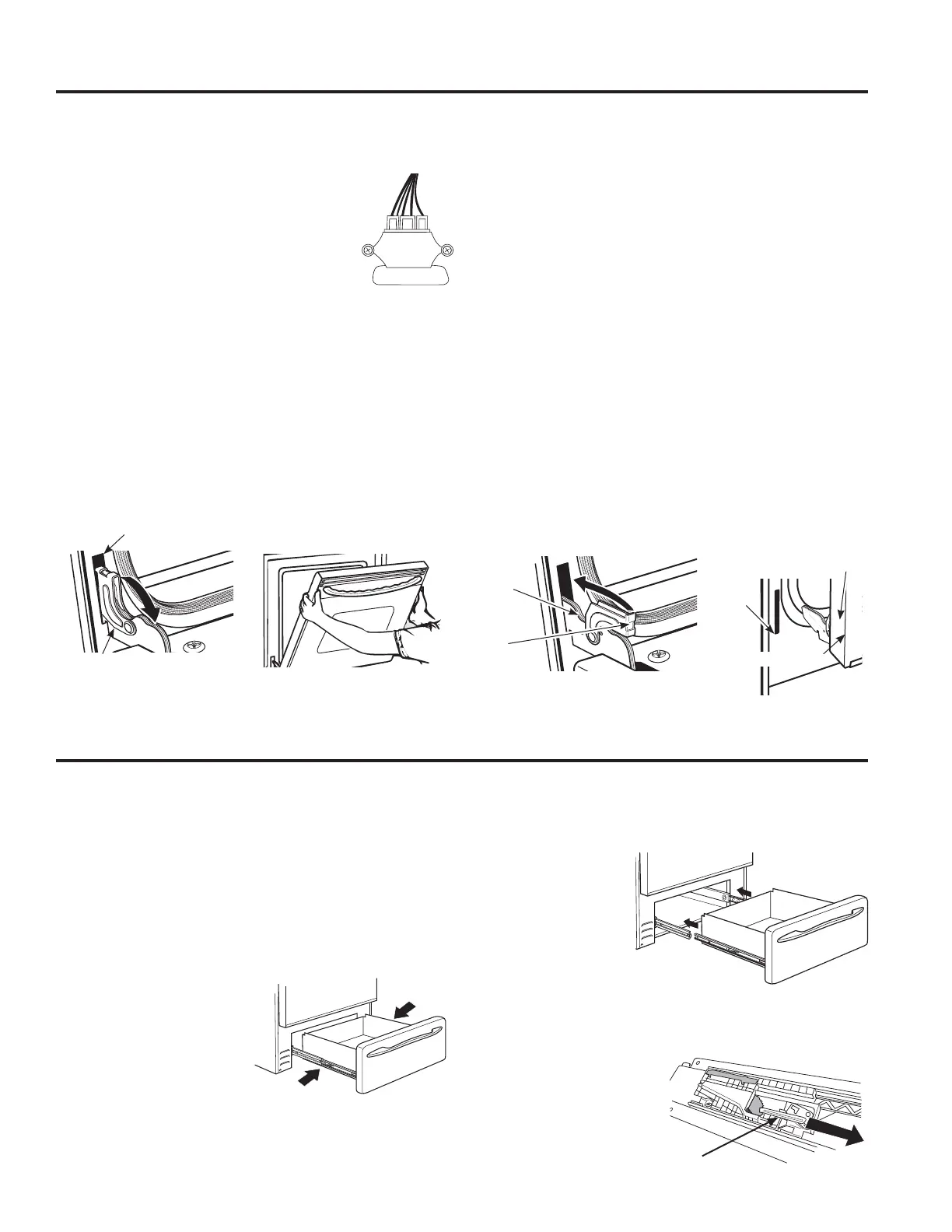

CARE AND CLEANING: Oven Door / Soft Close Drawer
Oven Door
The storage drawer is a good place to store cookware
and bakeware. Do not store plastics or flammable
material in the drawer.
The storage drawer may be removed for cleaning under
the range. Clean the storage drawer with a damp cloth or
sponge. Never use harsh abrasives or scouring pads.
Your storage drawer has metal rails.
To remove the drawer:
1. Pull drawer straight out until it stops.
2. Press the left rail
release in and press
the right rail release in,
while pulling the drawer
forward and free.
To replace the drawer:
1. Place the left drawer rail around the inner left rail
guide and slide it in slightly to hook it.
2. Place the right
drawer rail around
the inner right rail
guide and slide it
in slightly to hook
it.
3. Slide the drawer
all the way in.
In rare cases, the soft close mechanism may become
uncoupled from the drawer. To reset the mechanism:
1. Remove the drawer.
2. Slide the catch pin
forward, both sides as
applicable.
3. Reinstall the drawer.
Soft Close Drawer
Catch Pin
Lift-Off Lower Oven Door
The door is very heavy. Be careful when removing and
lifting the door.
Do not lift the door by the handle.
For models with oven camera, the camera
harness must be removed before removing
the door. Open the warming drawer
and disconnect the camera harness by
unhooking the connector that is snapped
into the front frame bracket before door removal.
To remove the door:
1. Fully open the door.
2. Pull the hinge locks down toward the door frame, to
the unlocked position. A tool, such as a small flat-
blade screwdriver, may be required.
3. Firmly grasp both sides of the door at the top.
4. Close door to the door removal position. The door
should be open approximately 3" with no obstruction
above the door.
5. Lift door up and out until both hinge arms are clear of
the slots.
To replace the door:
1. Firmly grasp both sides of the door at the top.
2. Starting on the left side, with the door at the same
angle as the removal position, seat the indentation of
the hinge arm into the bottom edge of the hinge slot.
The notch in the hinge arm must be fully seated into
the bottom of the slot. Repeat for right side.
3. Fully open the door. If the door will not fully open, the
indentation is not seated correctly in the bottom edge
of the slot.
4. Push the hinge locks up against the front frame of the
oven cavity, to the locked position.
5. Close the oven door.
Removal position
Hinge lock
Slot
Pull hinge locks down to unlock
Push hinge locks up to lock
Hinge
lock
Hinge
arm
Indentation
Bottom
edge of
slot
Hinge arm
