– 19 –

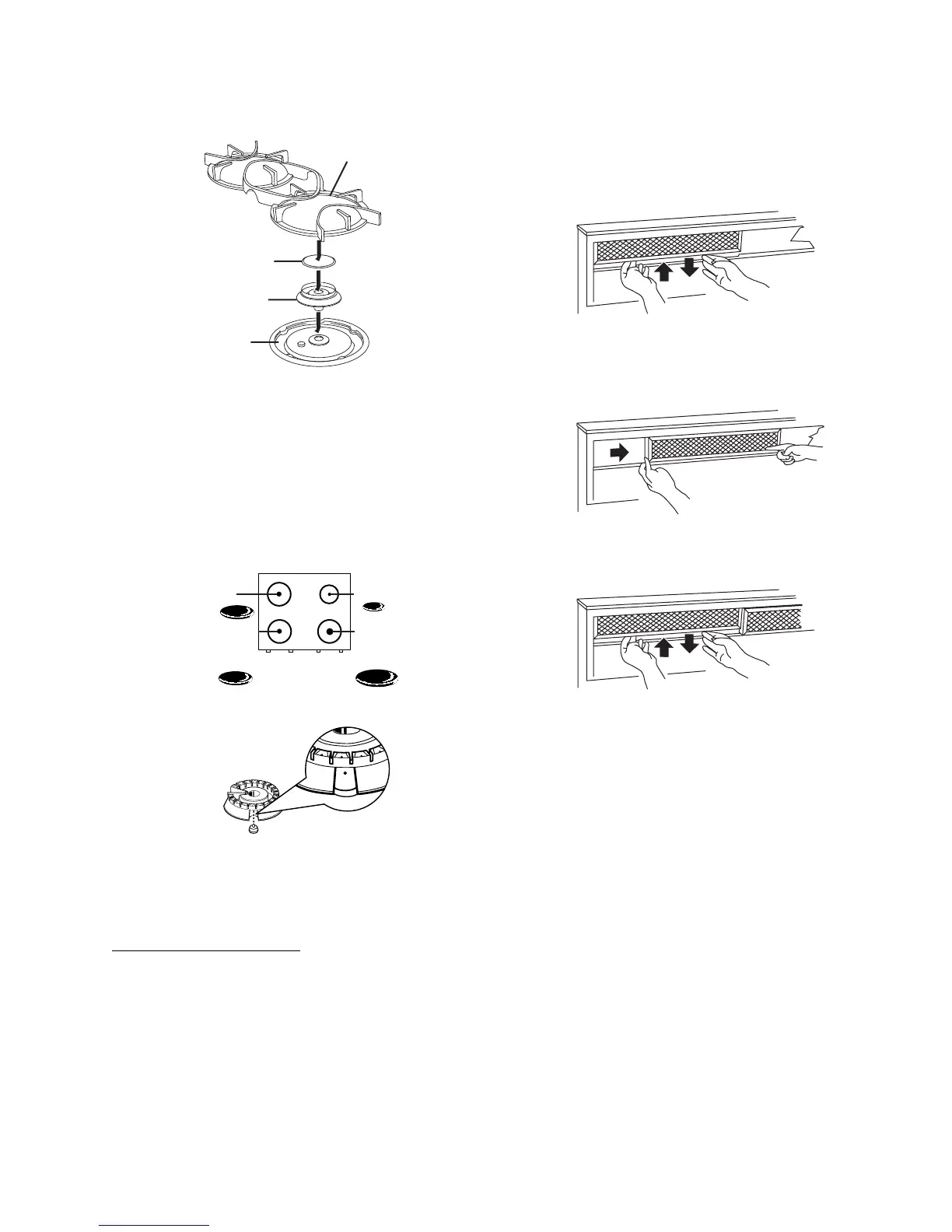

Assemble Burners and Check Ignition
Assemble burner as shown.
Burner Cap
Burner Grate
Burner Bowl
Burner Head
GEA00249
Place burner heads and caps on burners. Make
sure that heads and caps are placed on correct
size burner. There are 1 small, 2 (or 3) medium,
and 1 large head and cap.
Front of Cooktop
Medium Head
(183D5612)
and Cap
Large Head
(183D5614)
and Cap
GEA00250
Make sure the slot in the burner
head is positioned over the
electrode.
Medium Head
(183D5612)
and Cap
Small Head
(183D5613)
and Cap
Check for Proper Ignition
Note: First test may require some time, while air is
flushed out of gas line.
1. Push in one control knob and turn 90° to HIGH
position.
2. Igniter will spark and burner will light; igniter
will cease sparking when burner is lit.
3. Turn knob to OFF.
4. Repeat procedure for each burner.
Install Filters, Check Operation
of Downdraft
1. To raise vent, turn VENT knob to RAISE/
LOWER. Hold knob until vent begins to rise.
Vent will automatically stop when it is fully
extended.
GEA00251
2. Tip filter into opening and pull straight down so
filter rests on slides.
GEA00252
3. Slide filter to right side.
GEA00253
4. Tip other filter into opening and pull straight
down.
5. To turn fan ON, turn FAN knob to HIGH.
Continue turning FAN knob to select a fan
speed between HIGH and LO.
Note: It is not necessary to turn fan OFF before
lowering vent. Fan will automatically turn OFF
when vent is lowered. When fan is not turned OFF
before lowering vent, it will automatically come ON
at previously selected speed when vent is fully
raised.
6. To lower vent, turn VENT knob to RAISE/
LOWER. Hold knob until vent begins to lower.
To Next Page
