– 26 –
Removal and Replacement
WARNING: Disconnect electrical power to the
cooktop and turn OFF gas at the main valve before
performing any removal procedures.

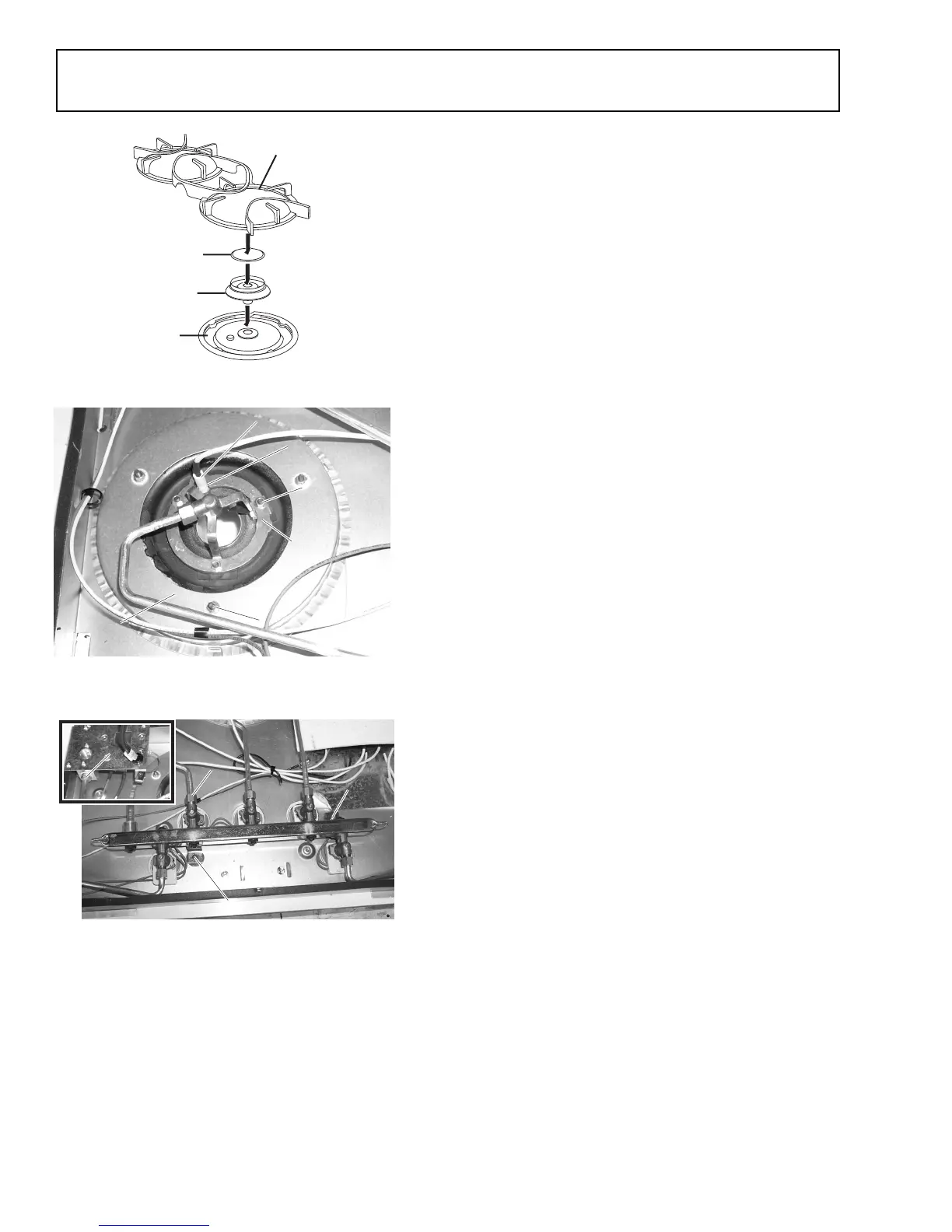

Remove Venturi Assembly and Burner Bowl
1. Remove burner grate, burner cap, and burner head
from cooktop.
2. From below cooktop, remove 17 screws and bottom
pan.
3. From below cooktop, remove retainer ring and igniter
from burner bowl.
4. Remove 1/2-in. nut and gas line from venturi
assembly.
5. Remove three 7-mm nuts, 3 washers, and venturi
assembly from burner bowl.
6. Remove three 7-mm nuts, washers, felt washers, and
cooktop recess ring from burner bowl.
7. Remove burner bowl.
Remove Gas Valve Assembly
1. Remove 4 (or 5) gas control knobs.
2. From below cooktop, remove 17 screws and bottom
pan.
3. Remove 4 (or 5) gas line fittings.
4. Remove manifold gas line fitting from regulator.
Caution: When assembling the following, replace with
the exact screws to prevent glass breakage.
5. Remove 2 screws and manifold from cooktop.
6. Remove 1/4-in. screw and gas valve from manifold.
Burner Cap
Burner Grate
Burner Bowl
Burner Head
GEA00249
GEA00314
Ignitor
Retainer
Ring
3 Nuts
and Washers
Venturi
Assembly
Cooktop
Recess Ring
3 Nuts, Washers,
and Felt Washers
Ignitor
Retainer
Ring
3 Nuts
and Washers
Venturi
Assembly
Cooktop
Recess Ring
3 Nuts, Washers,
and Felt Washers
GEA00315
Screw
Screw
Gas Line
Fitting
Manifold
Gas Line
Fitting
Screw
Screw
Gas Line
Fitting
Manifold
Gas Line
Fitting
To Next Page
