GE PTAN9150MWW - Lid Lock Mechanism - Step 1

41
3 5 4 2
Neutral
Power
Locking pin does not drop as the cam
prevents it from doing so.

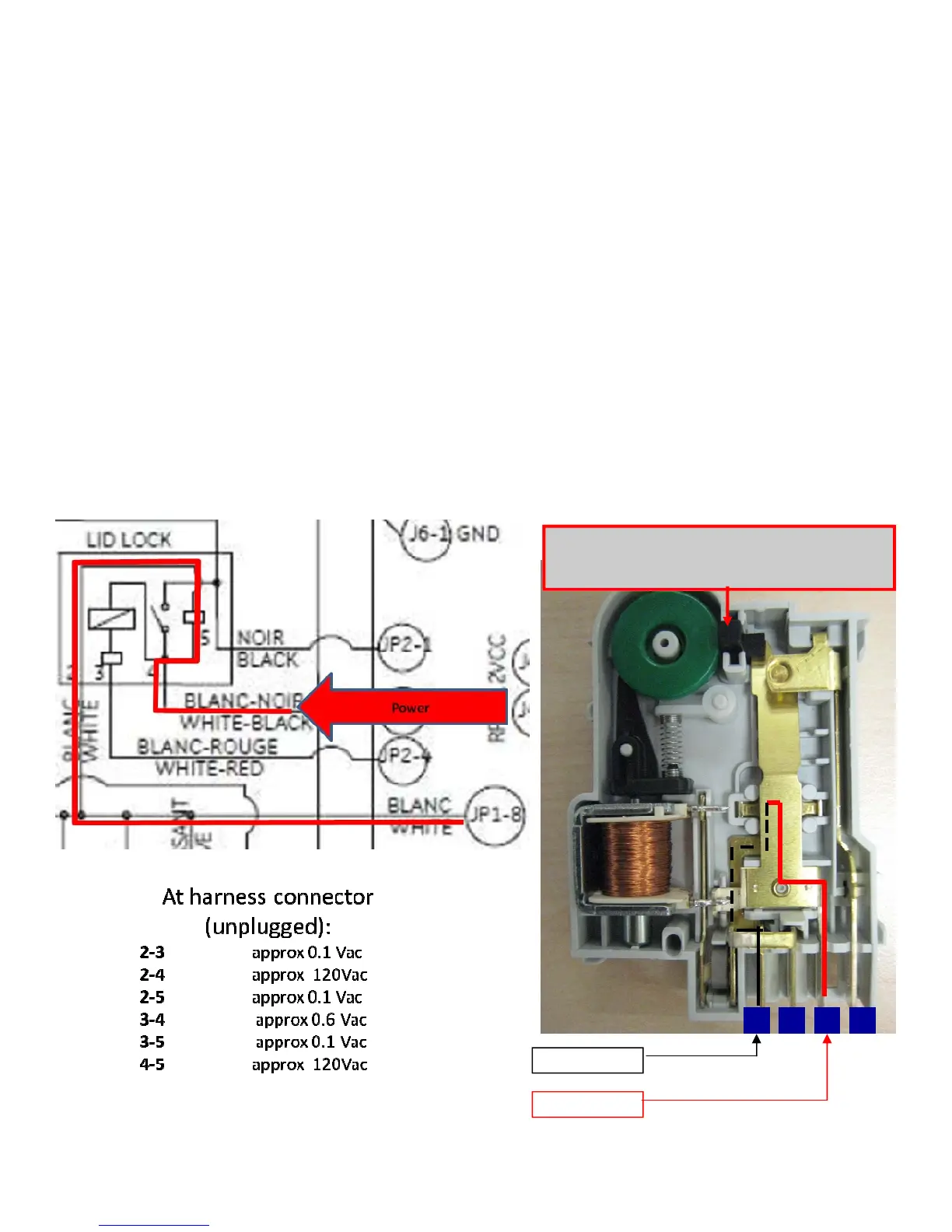

Lid Lock Step 1
Step1:
•
Currentisapplied(120VOLTSAC)toterminals4and2(neutral)whenanycy
selectedbeforepressingstart.
•Thisenergizesthebi‐metalbutdoesnotlockasthecampreventsit
fromdoingso.
• Thelidshouldnotbelockedatthisstage.Ifitdoespressthestart
buttontounlock.
