GE PTAN9150MWW - Circuit Board Connection Layout

53
J5
J9
J3
J6
J10
J7
J4
JP2
JP1
J11
J2

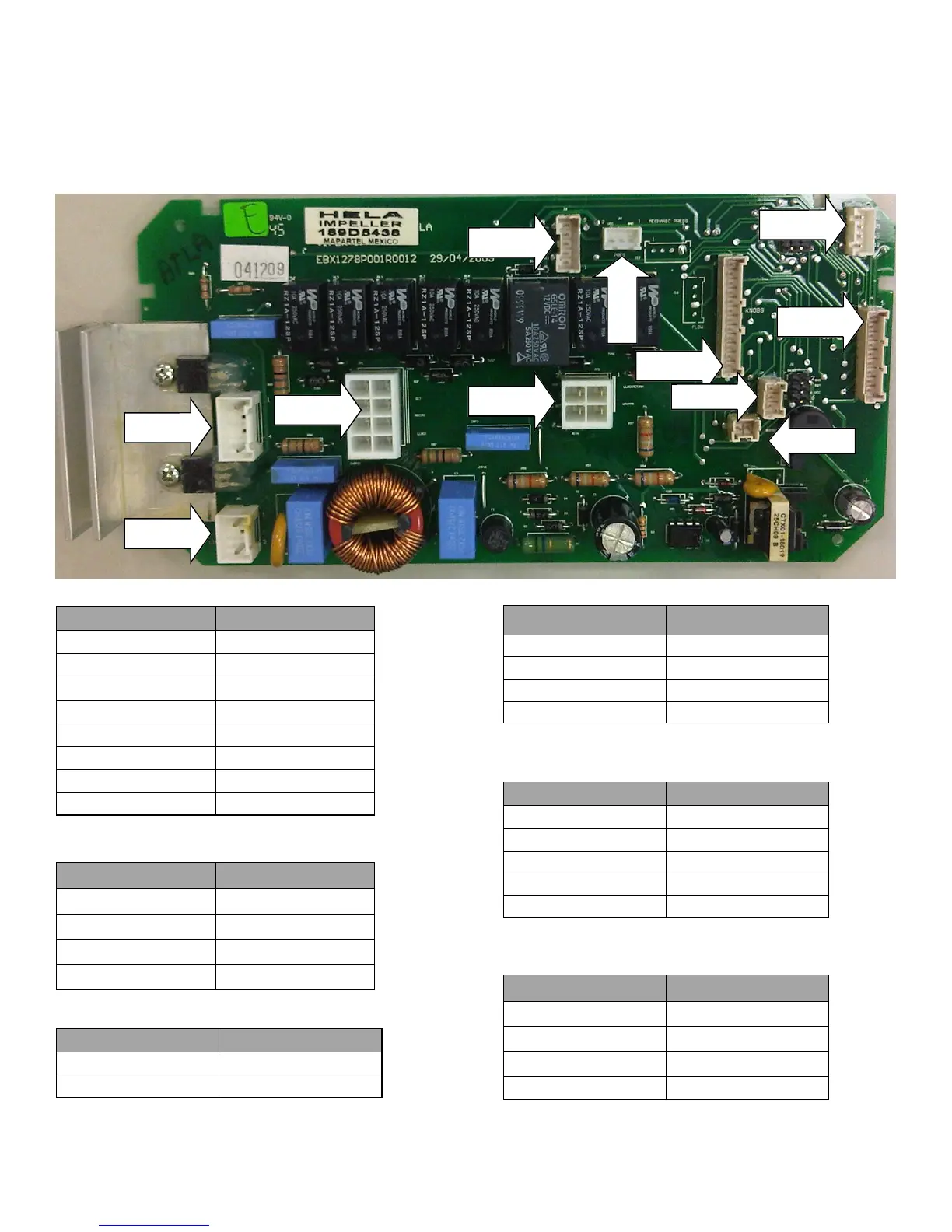

Circuit Board Connections
1
4
6 2
4
1
1
3
5
1
3 1
5 1
7
3
8 4
1
2
3
4
1
12
1
1
2
9
1
3
JP1 ( Water Valves)
Position Connect to
1 Softener Valve
2 Detergent Valve
3 Not Used
4 Lid Lock
5 Bleach Valve
6 Hot Valve
7 Not Used
8 Neutral
JP2 (Wax Motor, Lid Lock, Drain Pump)
Position Connect to
1 Lid Lock Return
2 Wax Motor
3 Pump
4 Lid Lock
J2 [Motor, (J2-4,CCW & J2-1, CW)]
Position Connect to
1 CW Motor
2 Not Used
3 Not Used
4 CCW Motor
J3 (Lid Switch, ATC)
Position Connect to
1 Lid Lock
2 Not Used
3 Lid Lock
4 ATC
5 ATC (12 Vdc)
J4 (Speed Sensor)
Position Connect to
1 12 Vdc
2 Signal
J5 (Display)
Position Connect to
1 12 Vdc
2 RX
3 TX
4 Ground
