GE PV976NSS User Manual

RECIRCULATING KIT (Included)
CHECK INSTALLATION HARDWARE

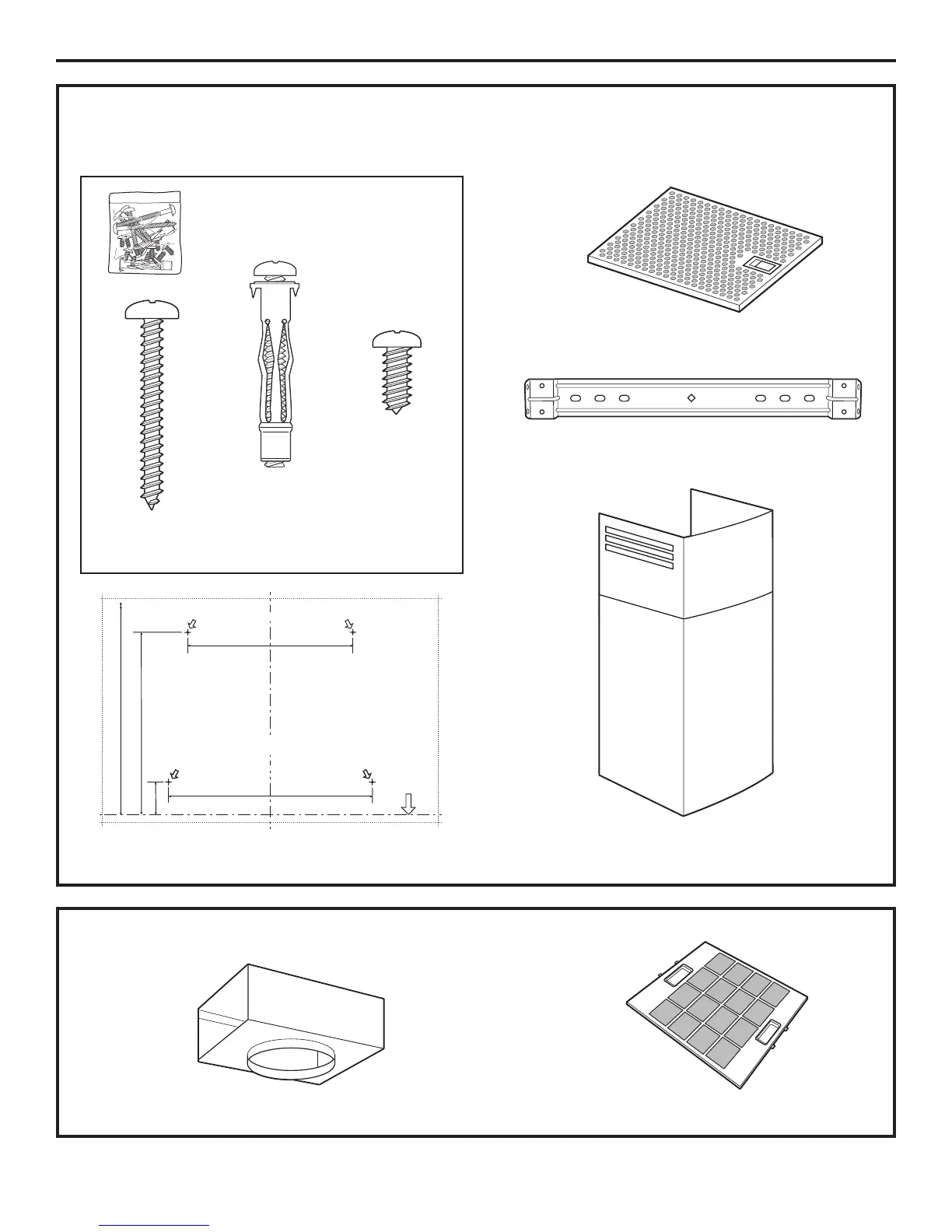

Locate the hardware package packed with the hood and check contents.
Installation Preparation
Stainless steel filter
Duct cover bracket
REAR WALL
MOUNTING TEMPLATE
Ver
ti
cal C
e
nterline
ALIGN BOTTOM EDGE
WITH PENCIL LINE
INDICATING BOTTOM
OF THE HOOD
11-7/16"
Installation Height
Horizontal Line
C
L
DRILL 2 (TWO) 3/16" PILOT HOLES THROUGH STUDS OR REAR WALL SUPPORT
10-1/8"
12-08 JR
2"
DRILL 2 (TWO) 3/16" PILOT HOLES THROUGH STUDS OR REAR WALL SUPPORT
12-1/2"
WALL VENT IS 27-3/4" MIN.
ABOVE THE INSTALLATION
HEIGHT
31-14772 Printed in Mexico
HARDWARE PACKAGE
Locate and count
screws
6 wood screws
(#10 1-3/4" long)
4 wall fasteners
(5/16")
(screw with
wall anchor)
8 duct cover
and air deflector
screws
(#8 thread forming
screw 3/8" long)
Charcoal filter
2-piece decorative
duct cover
Wall mount template
12
Air deflector

GE PV976NSS Specifications

General

Style	chimney style
Color	stainless steel
Hood Type	wall mount
Venting Type	ducted
Blower Type	internal
Number of Fan Speeds	4
CFM	450 cfm
Duct Size	8"md
Filters	yes
Sones	7
Control Type	electronic
Interior Light	dual halogen
Voltage	120 volts
Current	15

Weight and Dimensions

Depth	21 inch
Height	18 inch
Width	36 inch
