DETERMINE INSTALLATION HEIGHT
• Telescopic duct covers are provided to conceal
the ductwork running to the ceiling.
• This hood can be installed for recirculating
operation. Recirculating Kit included with hood.
NOTE: Installation height should be measured from
the cooking surface to the straight portion of the
hood.

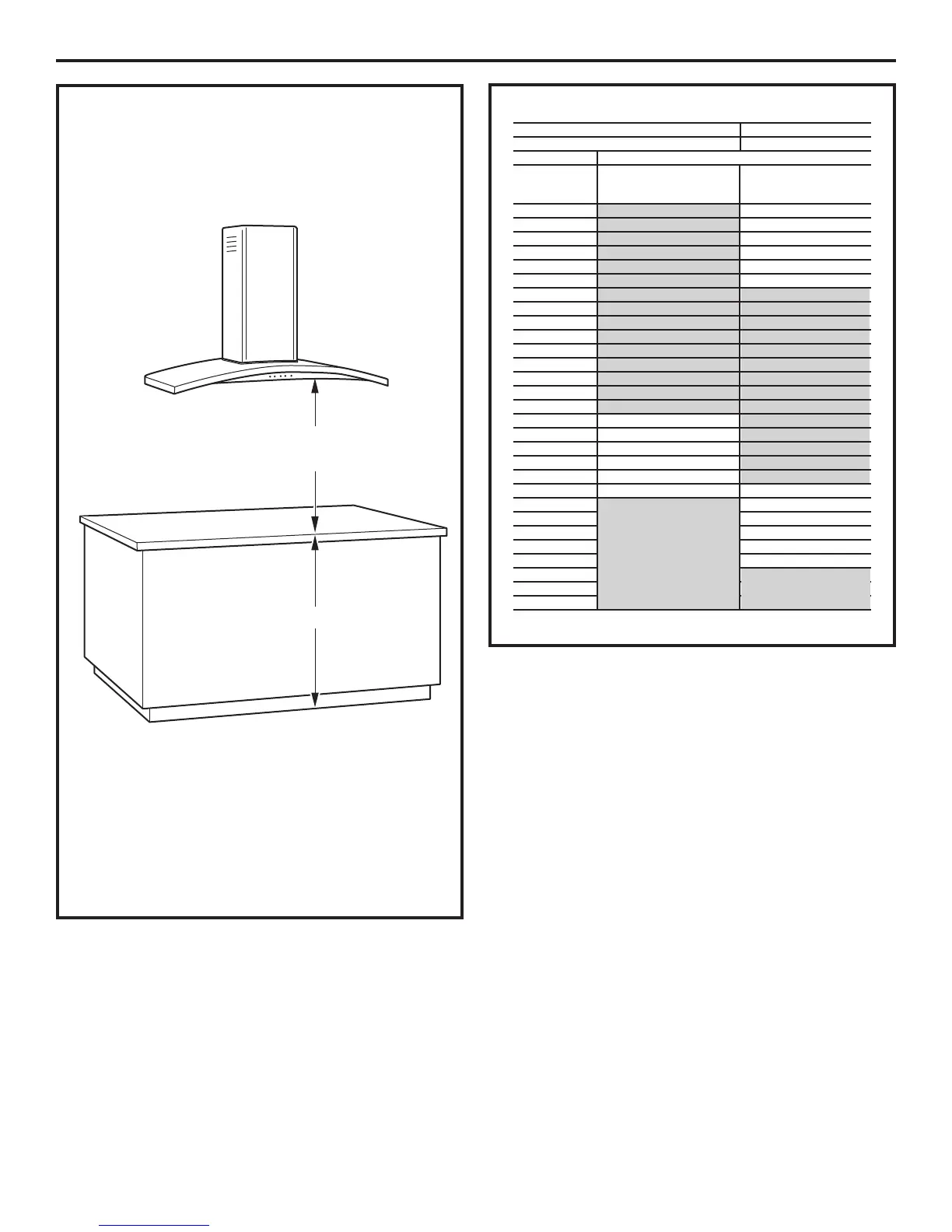

The vent hood must be installed 24" min. and
30" max. above the cooking surface. The hood
installation height, from the cooking surface to the
bottom of the hood, depends upon ceiling height
and duct cover limitations.
Installation Preparation
24" Min.
30" Max.
36" Min.
*Based on 36" countertop height
PV970, PV976
Upper Duct Cover 25.81
Lower Duct Cover 27.56
Counter to Hood Height
Actual *Possible
Ceiling *Possible VENTED RECIRCULATING
Height Installation Height Installation Height
7' 11" 24" to 30" 24"
8' 0" 24" to 30" 24" to 25"
8' 1" 24" to 30" 24" to 26"
8' 2" 24" to 30" 24" to 27"
8' 3" 24" to 30" 24" to 28"
8' 4" 24" to 30" 24" to 29"
8' 5" 24" to 30" 24" to 30"
8' 6" 24" to 30" 24" to 30"
8' 7" 24" to 30" 24" to 30"
8' 8" 24" to 30" 24" to 30"
8' 9" 24" to 30" 24" to 30"
8' 10" 24" to 30" 24" to 30"
8' 11" 24" to 30" 24" to 30"
9' 0" 24" to 30" 24" to 30"
9' 1" 24" to 30" 24" to 30"
9' 2" 25" to 30" 24" to 30"
9' 3" 26" to 30" 24" to 30"
9' 4" 27" to 30" 24" to 30"
9' 5" 28" to 30" 24" to 30"
9' 6" 29" to 30" 24" to 30"
9' 7" 30" 25" to 30"
9' 8" 26" to 30"
9' 9" 27" to 30"
9' 10" 28" to 30"
9' 11" 29" to 30"
10' 0" 30"
10' 1"
10' 2"
10' 3"

GE PV976NSS Specifications

General

Style	chimney style
Color	stainless steel
Hood Type	wall mount
Venting Type	ducted
Blower Type	internal
Number of Fan Speeds	4
CFM	450 cfm
Duct Size	8"md
Filters	yes
Sones	7
Control Type	electronic
Interior Light	dual halogen
Voltage	120 volts
Current	15

Weight and Dimensions

Depth	21 inch
Height	18 inch
Width	36 inch
