Installation Instructions

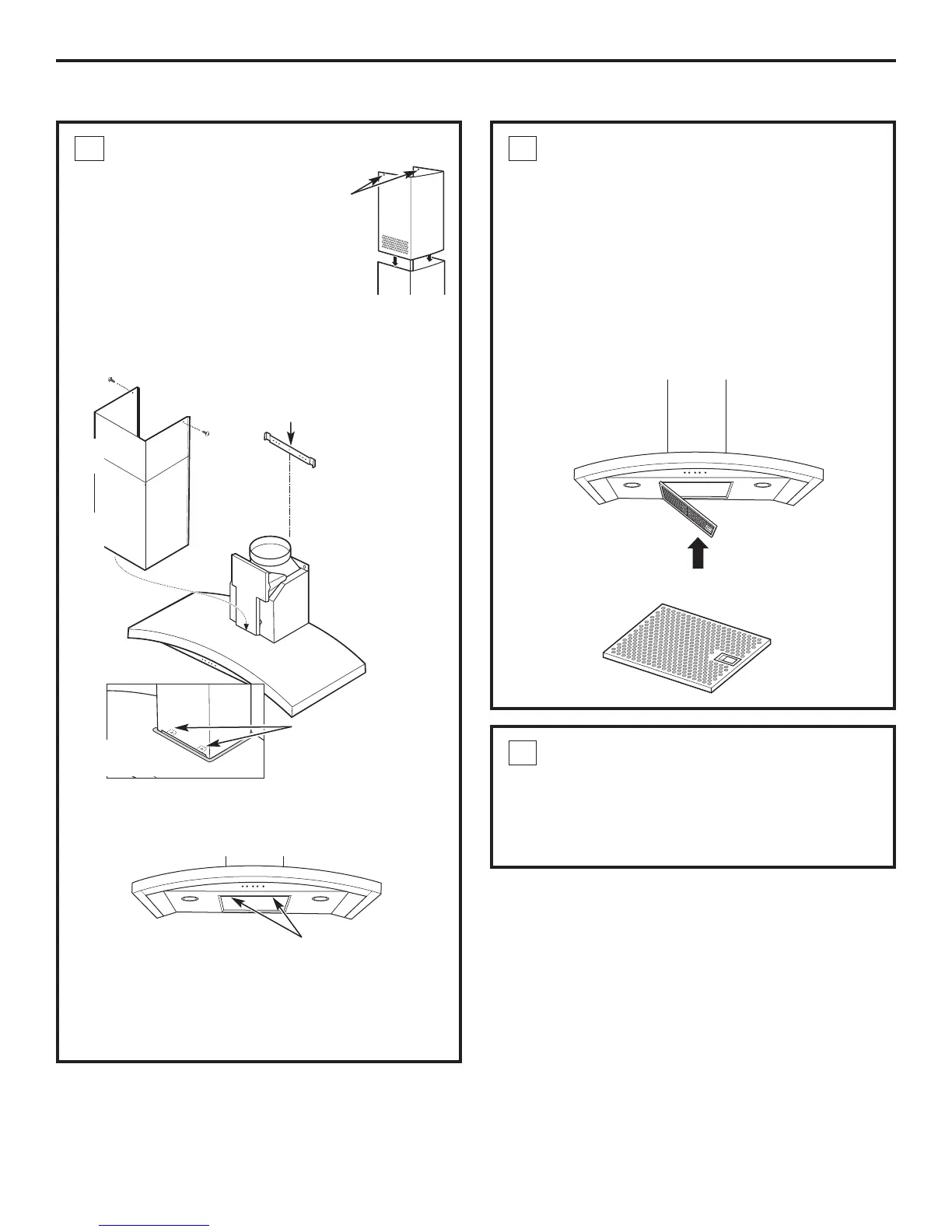

INSTALL DUCT COVERS
Remove protective plastic
covering.
Assemble duct covers
according to application.
NOTE: The inside duct cover has vent
holes on one end. The holes are intended
for use when the hood is installed for
recirculating purposes. Slide the upper duct cover
into the folded ends of the lower duct cover.
Place the decorative duct covers on top of the hood.
7
Mounting
screws
Lower duct
cover seat
Duct cover bracket
Lower duct
cover
Upper duct
cover
Duct cover
attachment tabs
17
Extend the inner duct cover upward to the ceiling
bracket.
Secure with 2 screws to the duct cover bracket.
Remove the packing material from the filter
opening.
• Locate the screw holes on the inside front edge
of the opening. Install 2 screws to secure the lower
duct cover to the hood.
Screw holes
INSTALL METAL GREASE FILTER
Remove the protective film on the grease filter.
NOTE: The charcoal filter is not required for this
installation.
• Fit the tabs at the end of the filter into the slots
in the left side of the filter opening. Lift up the
right side of the filter and push gently until the
filter locks into place. Make sure the filter lock
is in the closed position to secure the filter.
• To remove the filter, pull downward on the filter
lock to release.
8
FINALIZE INSTALLATION
Check to be sure all tape and packaging materials
have been removed.
Refer to the Operating Instructions in this manual
to operate the hood.
9
