GE PV976NSS User Manual

Installation Instructions
20

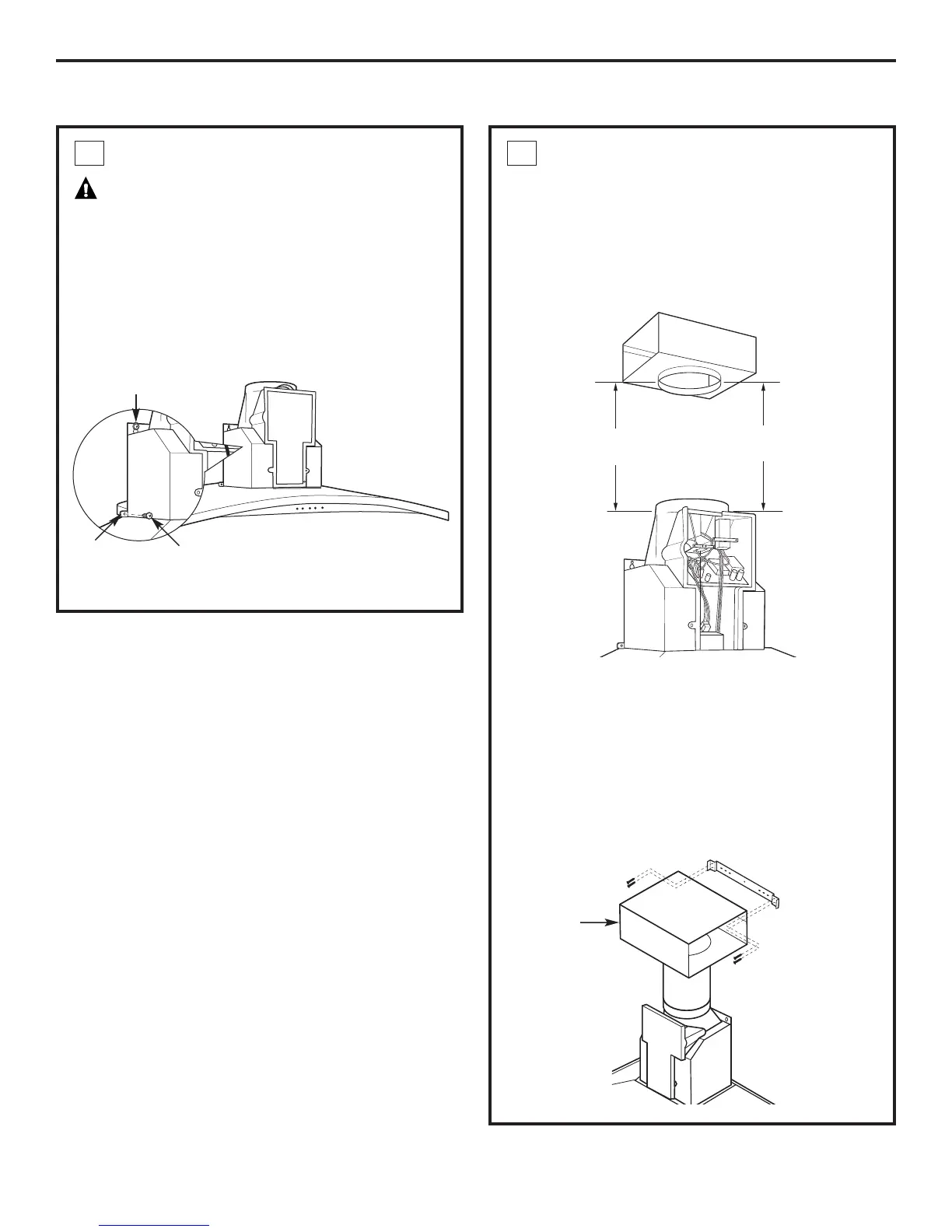

SIZE AND CUT DUCT PIECE
• Measure from the bottom of the air deflector
to the top of the hood as shown. Reduce that
dimension by 1" to facilitate installation.
The duct will cover and overlap the deflector
and the exhaust outlet in the hood.
• Remove the air deflector from the duct cover
bracket.
• Cut the duct piece to size and slip onto the bottom
of the deflector.
• Place the assembled deflector and duct over
the exhaust outlet.
• Hold the assembly against the duct bracket.
• Drive 2 screws into each side of the bottom
of the deflector and into the bracket.
• Use duct tape to seal duct to the deflector
and at the exhaust outlet.
5
Measure
length
Duct
length
Deflector
INSTALLATION—RECIRCULATING
MOUNT THE HOOD
WARNING:2 people are required to lift
and position the hood onto the mounting screws.
• Lift the hood onto the mounting screws.
• If using a wall fastener, make sure the washer
is in front of the flange and not behind it. Check
with a level before tightening screws.
• Install lower screws to pull the hood tight against
the wall.
4
Tighten
screws
Install
screws
Bottom
screw
location

GE PV976NSS Specifications

General

Style	chimney style
Color	stainless steel
Hood Type	wall mount
Venting Type	ducted
Blower Type	internal
Number of Fan Speeds	4
CFM	450 cfm
Duct Size	8"md
Filters	yes
Sones	7
Control Type	electronic
Interior Light	dual halogen
Voltage	120 volts
Current	15

Weight and Dimensions

Depth	21 inch
Height	18 inch
Width	36 inch
