OUTSIDE BACK EXHAUST (Horizontal Duct)
PREPARING THE REAR WALL
FOR OUTSIDE BACK EXHAUST
B1
T
u
r
n
t
o
S
e
l
e
c
t
P
r
e
s
s
t
o
E
n
t
e
r

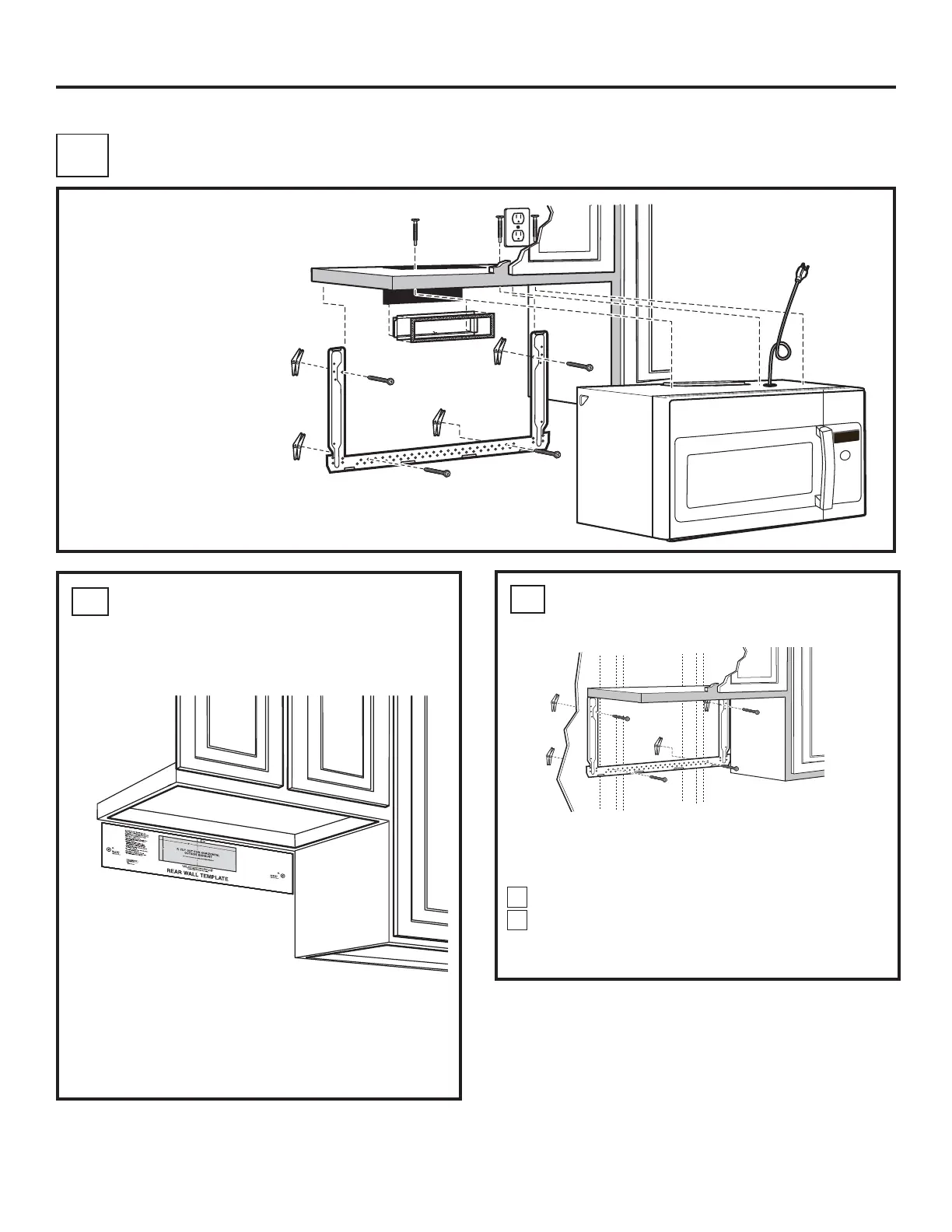

INSTALLATION OVERVIEW
B1. Prepare Rear Wall
B2. Attach Mounting Plate to Wall
B3. Prepare Top Cabinet
B4. Adjust Blower
B5. Mount the Oven
Installation Instructions
B
15
ATTACH THE MOUNTING PLATE
TO THE WALL
B2
Attach the plate to the wall using toggle bolts. At least
one wood screw must be used to attach the plate to
a wall stud.
Remove the toggle wings from the bolts.
Insert the bolts into the mounting plate through
the holes designated to go into drywall and reattach
the toggle wings to
3
ø4s onto each bolt.
1
2
You need to cut an opening in the rear wall for outside
exhaust.
 Read the instructions on the REAR WALL TEMPLATE.
 Tape it to the rear wall, lining up with the holes
previously drilled for holes A and B in the wall plate.
 Cut the opening, following the instructions of the
REAR WALL TEMPLATE.
