2. FEATURES AND USE
This chapter contains:
• Descriptions of the monitor’s features and controls.
• Instructions for using the monitor.
• Instructions for changing monitor settings.
Monitor features
NOTE: The monitor is shown without the handle.

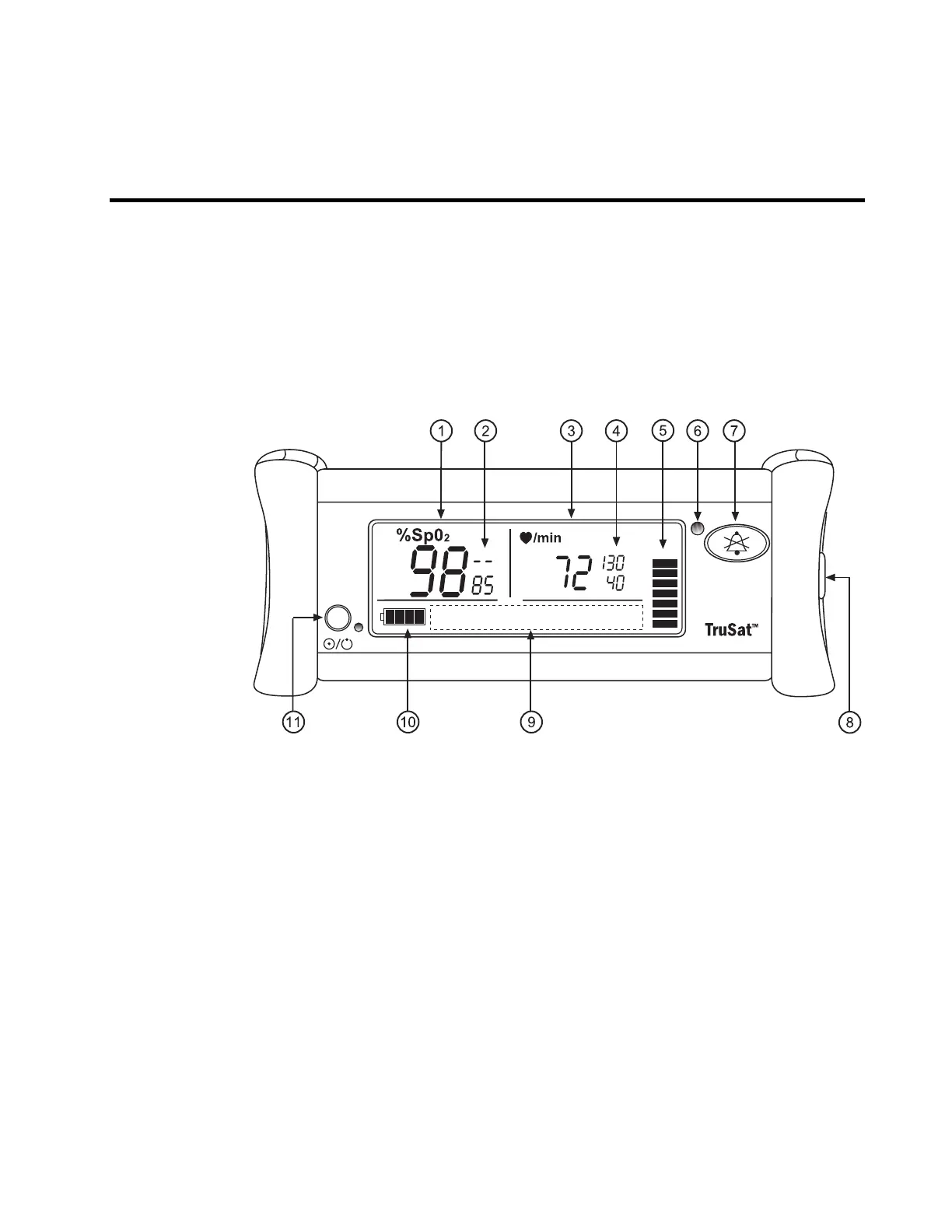

Figure 2-1. Monitor features
1 Oxygen saturation (SpO
2
) measurement value
2 SpO
2
high and low alarm limit settings, adjustable
3 Pulse rate measurement value
4 Pulse rate high and low alarm limit settings, adjustable
5 Plethysmographic pulse bar (pleth bar)
6 Alarm LED
7 Alarm Silence button
8 ComWheel navigation and selection knob for changing monitor settings
9 Display area for on-screen control symbols
10 Battery indicator
11 Power button and external power LED
