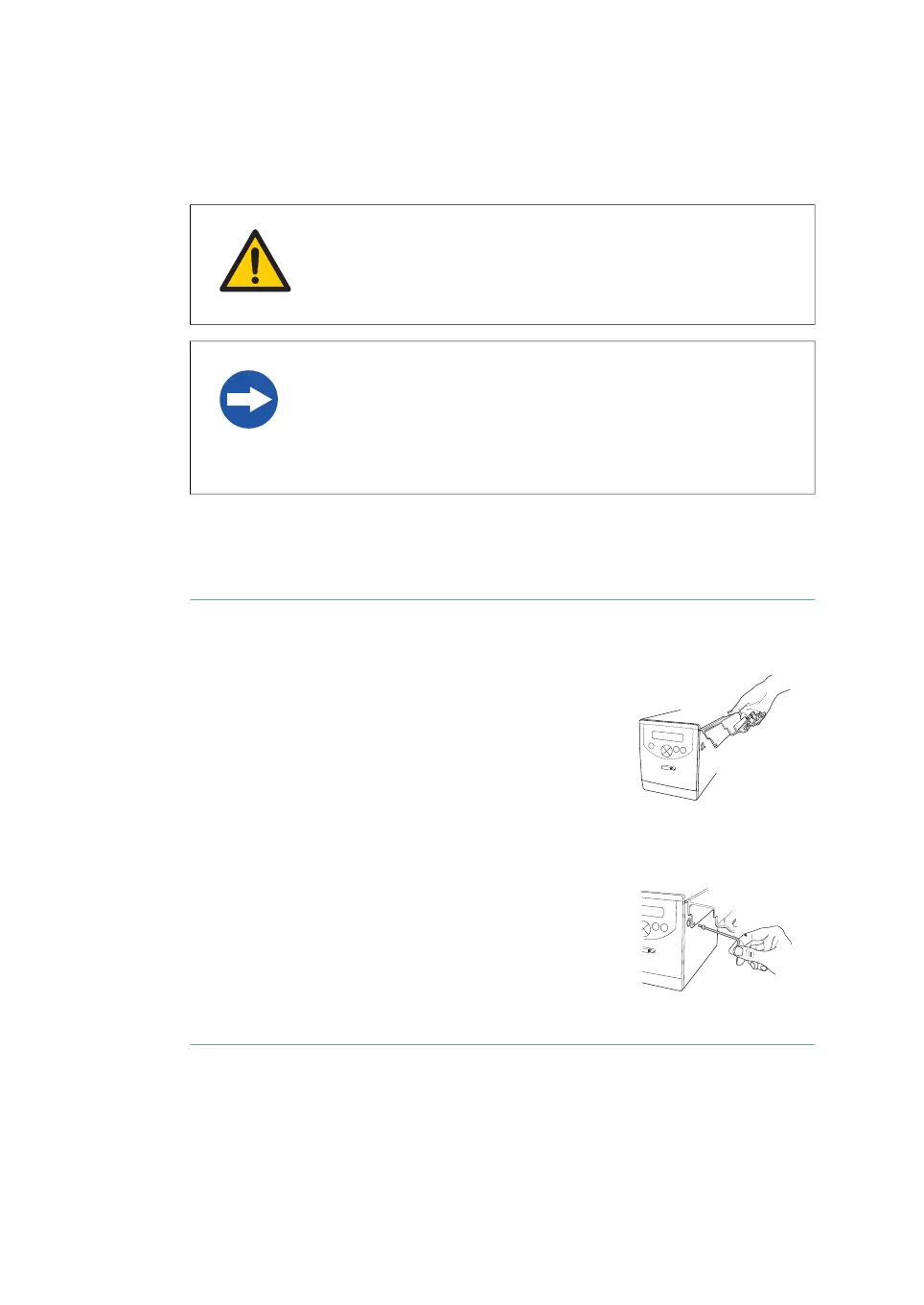

GE UVis-920 - Flow Cell Installation

4.4 Installing the cell holder
WARNING
High intensity UV light. This product uses high intensity ultra-violet
light. Do not disconnect the optical fibers while the lamp is on.
NOTICE
To avoid damaging the optical inlet and outlet the two black rubber
caps at the optical fiber connectors must be in place when installing
the cell holder.
If UV Flow Cell, 2 mm or UV Flow Cell, 10 mm is to be used the flow cell holder included
in the UVis-920 delivery must be installed.
IllustrationActionStep
Unpack the cell holder.1
Slide the cell holder in place on the right hand side
of the UVis-920.
2
Fasten the flow cell holder with the two screws includ-
ed. Use a hex wrench.
3
4.5 Installing the flow cells
The following flow cells are available:
•
UV Flow Cell 2 mm
•
UV Flow Cell 10 mm
