Fn_06 : frequency upper limit = 1 up to 120Hz or 200Hz
(*)
Fn_07 : frequency lower limit = 0 up to 120Hz or 200Hz
(*)
(*) Only for with CPU version from 1.9 (check function F_29)
Note:
If Fn_07 = 0 Hz, and the frequency instruction is equal to 0Hz, the inverter will
stop at 0 speed.
If Fn_07 > 0 Hz, and the frequency instruction ≦ Fn_07, the inverter will
output according to Fn_07 setting.
Fn_08 : sp1 frequency = 1 up to 120Hz or 200Hz
(*)
Fn_09 : jog frequency = 1 up to 10Hz or 200Hz
(*)
(*)Only for with CPU version from 1.9 (check function F_29)
1. When Fn_19 or Fn_20 = 2 and multifunction input terminal is ON, the inverter operate at
sp1 frequency (Fn_08)
2. When Fn_19 or Fn_20 = 1 and multifunction input terminal is ON, the inverter operate at
jog frequency (Fn_09)
3. The priority of reading frequency setting is Jog
> Sp1 > Keypad setting or external frequency
signal
Internal
frequency
signal
(NOTE)

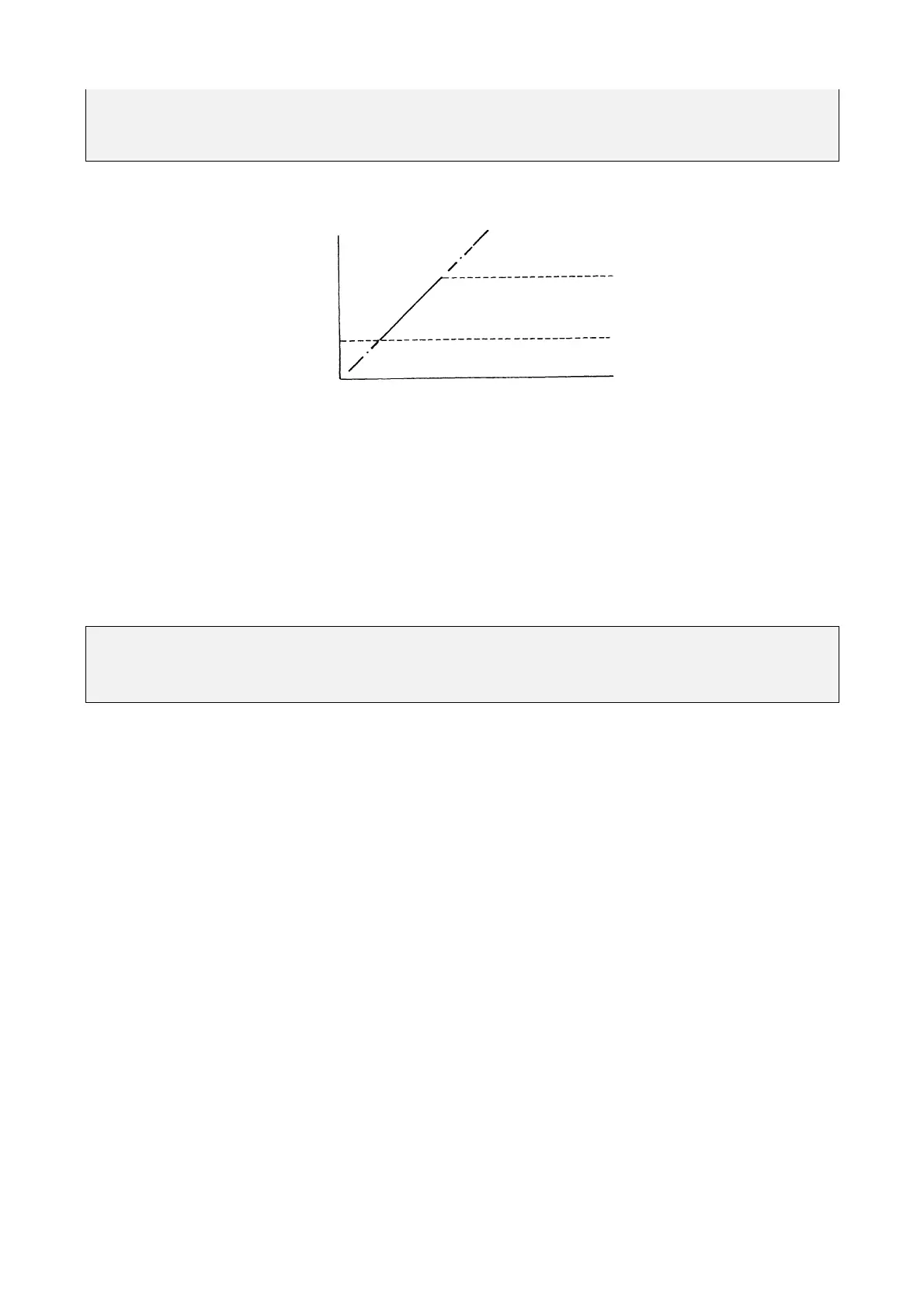

Frequency setting signal
Fn_06 (freq. Upper limit)
Fn_07 (freq. Lower limit)
To Next Page
