TV with RF Jack Only
This connection assumes:
• You are connecting antenna, cable, or cable box system.
• Your television has only an RF input jack.
This connection provides:
• Mono sound playback from VCR.
• Record one channel while watching another (except
when using a cable box for all channels).
To use this connection, you must have:
• (1) coaxial cable for cable or antenna connection; (1) for
cable box.
To connect:
1. Connect cables as shown.
2. Return tothe manual’s first section,
First Things First
, and
follow the connection steps.
Using This Connection
Tune your TV to channel 3 or 4, whichever one you selected
with the 3 CH 4 switch on the back of the VCR.
Auto TV/VCR Setting:
• Set the Auto TV/VCR feature to ON.
To play a tape:
1. Insert a tape.
2. If necessary, press PLAY.
To record one program and watch another:
1. Begin recording a program using one of the
recording features.
2. Press the TV•VCR button and select a different channel
on the TV.
VCR
TV
CH
IN
OUT
IN
AUDIO
VIDEO
3 4
(FROM ANT.)
OUT
(TO TV)
RF
CABLE/
ANTENNA

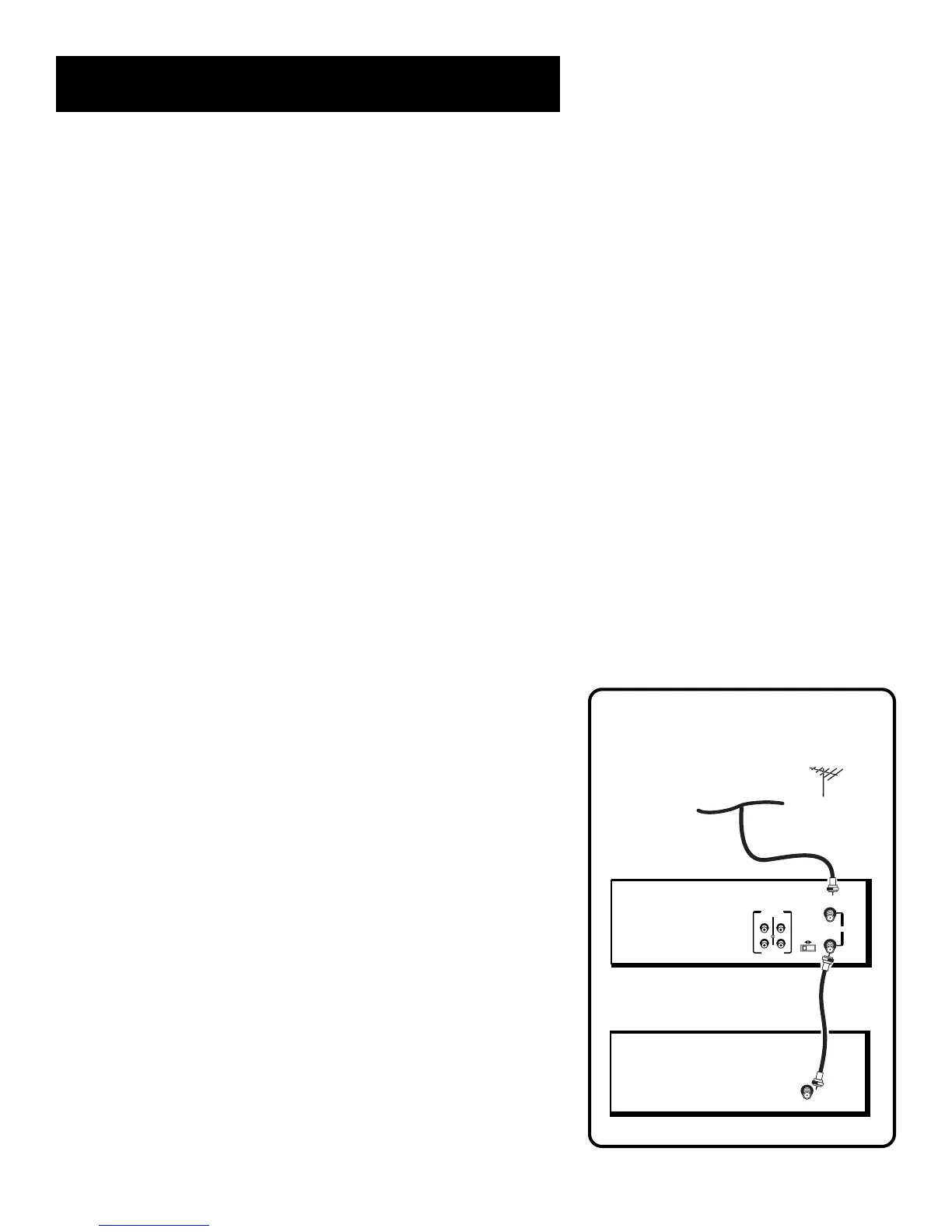

CABLE, CABLE BOX, OR ANTENNA
Connecting to a TV with only
a RF Jack
