GE VG4065 - TV Connection: A;V Jacks with Cable Box

CONNECTIONS
50
TV with Audio/Video Jacks and Cable Box
Used to Unscramble Pay Channels Only
This connection assumes:
• You are using a cable box only to unscramble premium
channels.
• Your TV has audio/video input jacks.
This connection provides:
• Mono sound playback from VCR.
• Recording a scrambled or unscrambled channel through
the cable box while watching an unscrambled channel.
To use this connection, you must have:
• (3) coaxial cables
• (2) audio/video cables
• (1) splitter
To connect:
1. Connect cables as shown.
2. Return tothe manual’s first section, First Things First , and
follow the connection steps.
Using This Connection
Tune your TV to its video input channel. Use of TV•VCR button
is not required.
Auto TV/VCR Setting:
• Set the Auto TV/VCR feature to OFF.
To play a tape:
1. Insert a tape.
2. If necessary, press PLAY.
To record a scrambled or unscrambled program and
watch another unscrambled program:
1. Begin recording a scrambled or unscrambled program
through the cable box using one of the recording features.
2. Select an unscrambled channel on the TV.
All scrambled channels must be
viewed through the VCR.
VCR
CH
IN
OUT
IN
AUDIO
VIDEO
3564
(FROM ANT.)
OUT
(TO TV)
RF
CABLE
CABLE BOX
TV
CABLE/
ANTENNA
INPUT 1
VIDEO
R
L/MONO
S-VIDEO
AUDIO
OUTPUT
R
L
INPUT 2
VIDEO
R
L/MONO
IN
OUT

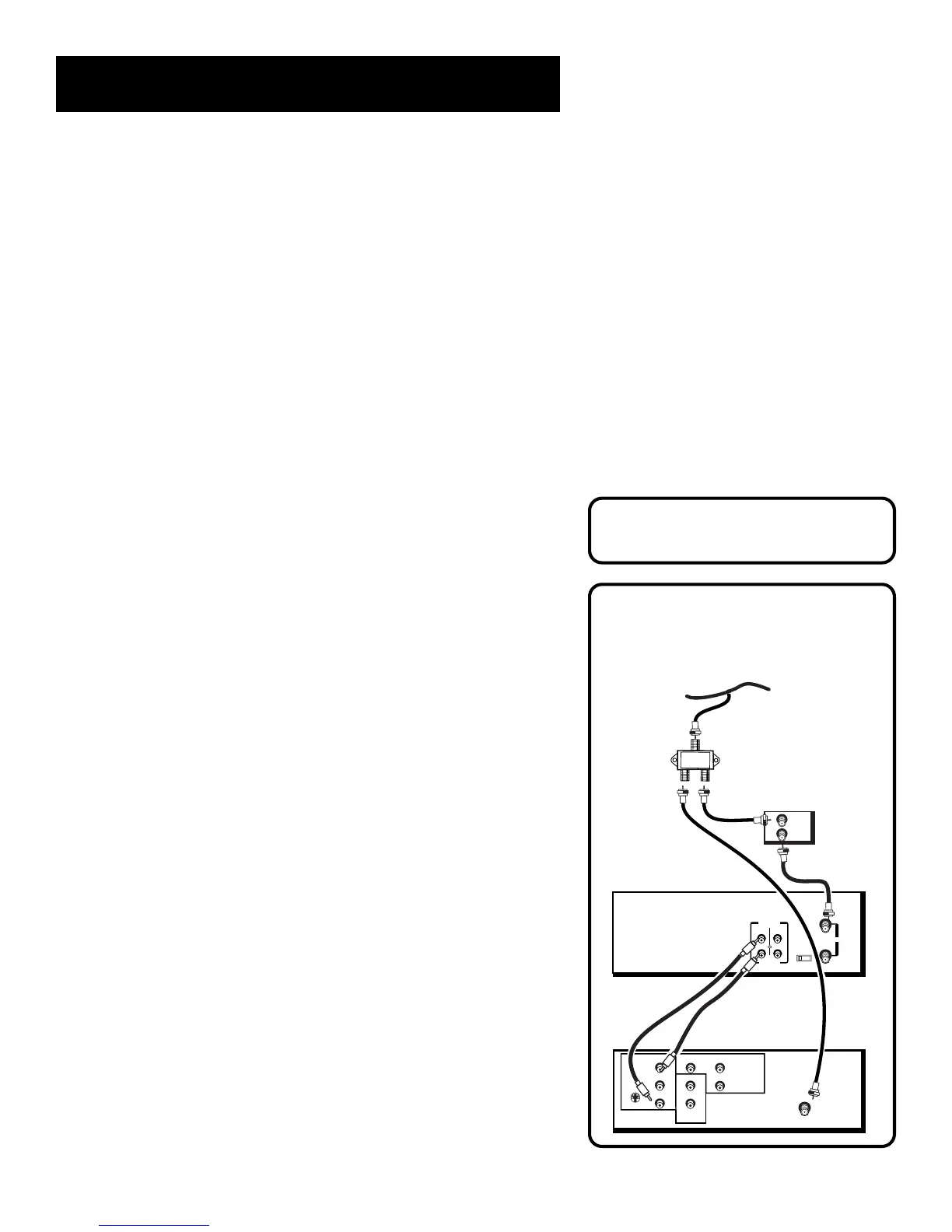

Connecting to a TV with A/V
jacks and a cable box
