CONNECTIONS
49
TV with Audio/Video Jacks
This connection assumes:
• You are connecting an antenna, cable, or cable box system.
• Your television has audio/video jacks.
This connection provides:
• Mono sound playback from VCR.
• Record one channel while watching another (except when
using a cable box for all channels).
To use this connection, you must have:
• (1) coaxial cable for cable/antenna connection; (2) for
cable box
• (2) audio/video cables
To connect:
1. Connect cables as shown.
2. Return tothe manual’s first section,
First Things First
, and
follow the connection steps.
Using This Connection
Tune your TV to its video input channel. Use of TV•VCR button is
not required.
Auto TV/VCR Setting:
• Set the Auto TV/VCR feature to OFF.
To play a tape:
1. Insert a tape.
2. If necessary, press PLAY.
To record one program and watch another:
1. Begin recording a program using one of the
recording features.
2. Select a different channel on the TV.
VCR
CH
IN
OUT
IN
AUDIO
VIDEO
3564
(FROM ANT.)
OUT
(TO TV)
RF
TV
CABLE/
ANTENNA
INPUT 1
VIDEO
R
L/MONO
S-VIDEO
AUDIO
OUTPUT
R
L
INPUT 2
VIDEO
R
L/MONO
CABLE, CABLE BOX, OR ANTENNA

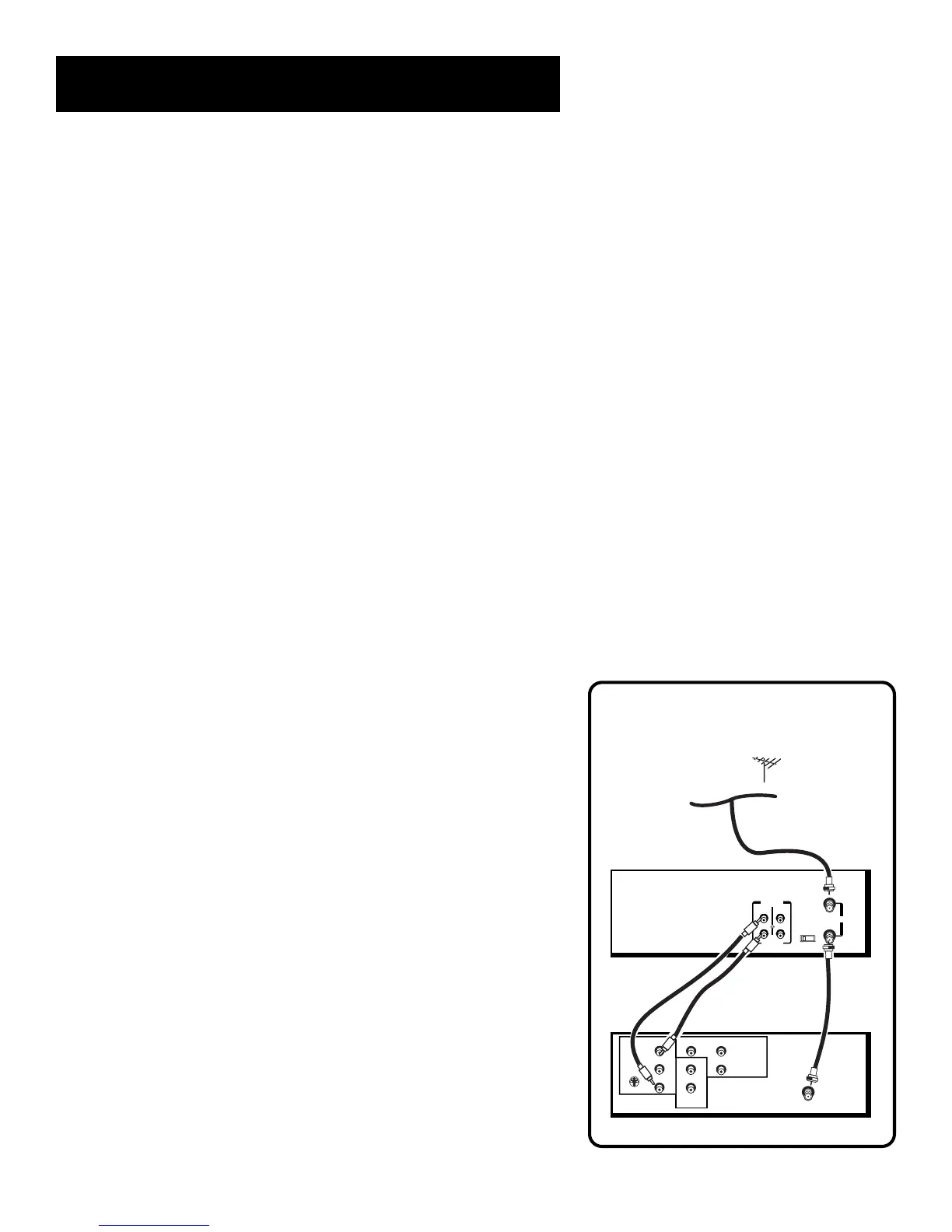

Connecting to a TV with
Audio/Video Jacks
