Chapter 7 - Diagnostics/Troubleshooting 7-9
Section 7-4
Screen Captures and Logs
There may be times when the customer or field engineer will want to capture a presentation on the
screen so it may be recovered by the OnLine Center. This is accomplished by saving the image(s):
A.) to Archive and export them (as jpg, bmp or tiff) to DVD/CD+R/RW or external USB drive.
B.) as jpg and bmp to D:\export by pressing the ALT
+ P key on the alphanumeric keyboard.
Note:
Successive ALT + P keystrokes (max. 20) overwrite existing snapshots at destination HDD!
C.) creates one snapshot (Alt-D.bmp) + “Full Backup” of the System state (fullbackup -> fb1) saved on
D:\export by pressing the ALT
+ D key on the alpha-numeric keyboard.
7-4-1 Capturing a screen
The following is the generic process to capture any screen from the scanner.
1.) Navigate to, and display the image/screen/volume to be captured.
2.) Press the P1
, P2, P3 or P4 key (depending on system configuration) on the control panel and store
the image onto the clipboard (frame on left side of the screen).
NOTE: A short summary of P1
, P2, P3 and P4 key´s configuration is shown in the status area on the screen.
3.) Select the stored image(s) and export them to DVD/CD+R/RW, an external USB drive (optional) or
mapped Network drive (jpg, bmp, tiff or Volume file).

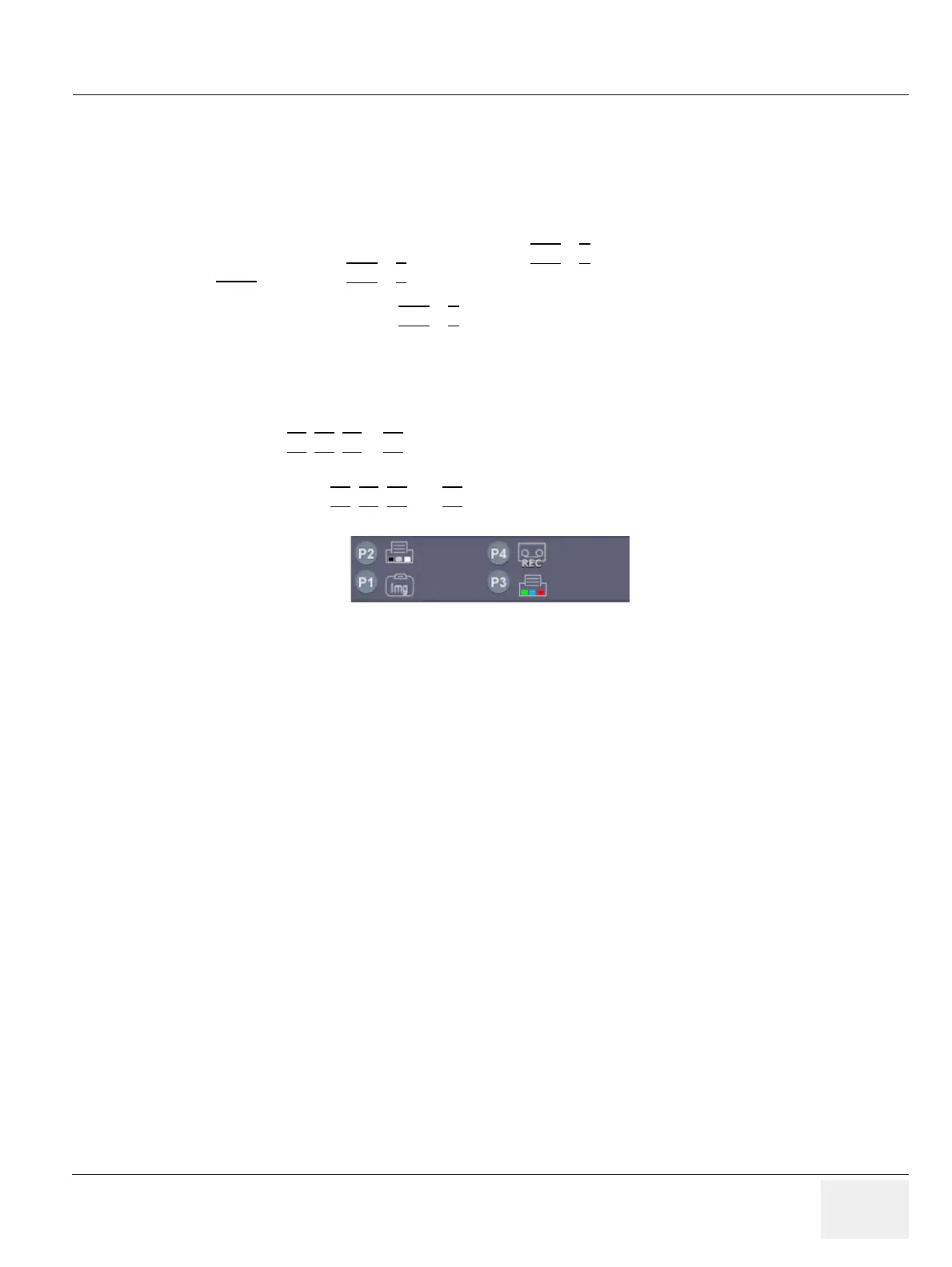

Figure 7-10 summary of keys configuration
