3-12 Section 3-5 - Connection of Auxiliary Devices

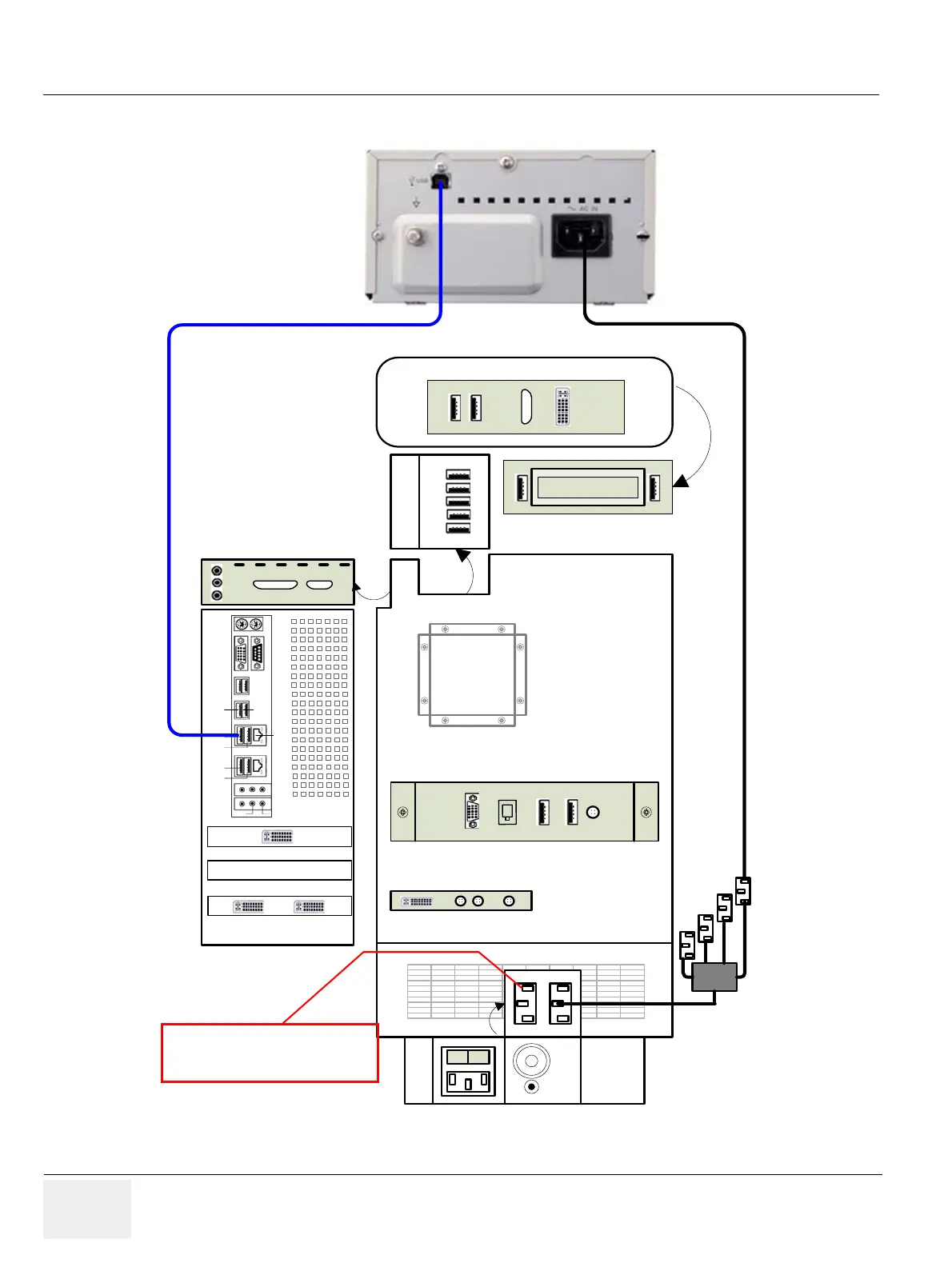

3-5-2-1 Connection Scheme: B&W Printer
Figure 3-6 B&W Printer connection
text
Console back
DVD Writer
I
O
UI-Top
ECG
S - Video
Out InOut
DVI - Out
Mic
Line
Out
In
to USB3
A
BC
DE
DVI Out
DVI - In
Monitor
RS-
232
USB
UI
USB Hub
Top
LAN
USB 3
USB 4
USB 5
USB 6
Audio
Line Out
Line In
PC
Lift
Aux
Lift is only used for the lifter
(230V - can not be changed)
Black & White Printer
(e.g., Sony UP-D897)
