Transmission
Note:
• The tub must be removed when replacing
the transmission.
• Replace the tub seal (PN WH02X10032) when
replacing the transmission.
• The speed sensor and magnet collar must be
transferred to the replacement transmission.

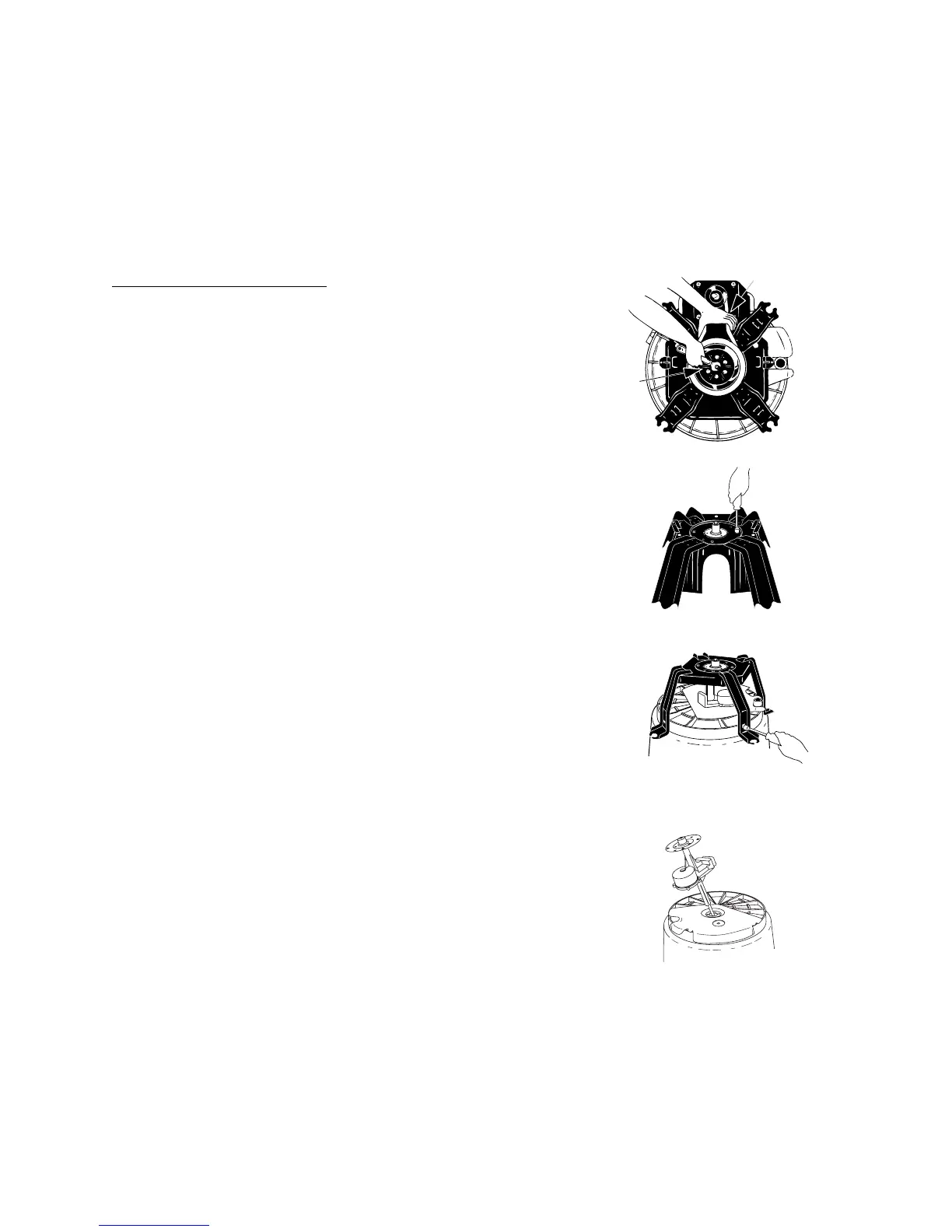

To remove the transmission:
1. Remove the tub with motor and transmission,
and the spin basket (see Tub With Motor and
Transmission and Spin Basket).
2. Remove the transmission drive pulley by
holding the belt and removing the
3/4-in. pulley nut.
Lid Switch
3 Locking Tabs
Lid Switch
3 Locking Tabs
Lid Switch
3 Locking Tabs
Remove
Pulley
Nut
Squeeze
Belt
Lid Switch
3 Locking Tabs
3. Remove 4 (3/8-in.) bolts mounting the
transmission to the leg and platform assembly.
4. Remove 4 (1/2-in.) hex bolts securing the leg
and platform assembly to the tub and remove
the leg and platform assembly.
5. Lift the transmission up and out of the tub.
6. Remove the speed sensor and magnets, and
transfer to the replacement transmission.
Note: The transmission and brake are one
assembly and are replaced as a single component.
7. Remove the tub seal and install a new one.
