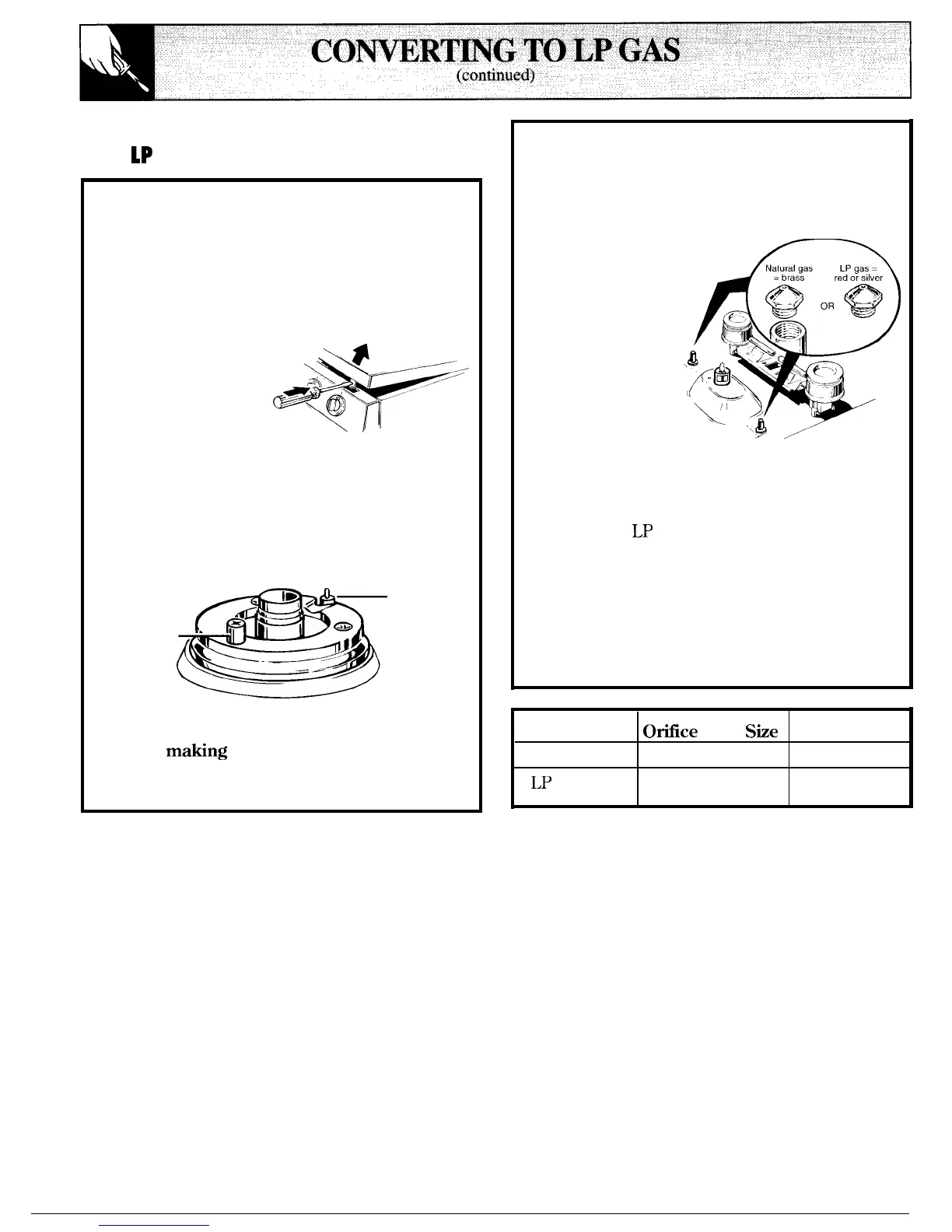

HOW TO CONVERT THE RANGE FOR USE
WITH
1P
GAS OR NATURAL GAS
(continued)
5. To prevent leakage, make sure the orifice
spuds are securely screwed into the gas inlet
tubes. Use a small wrench to hold the inlet tube
hex to prevent it from twisting.
6. Put old orifice spuds back in the bag to save
for possible future conversion.
NOTE:
If an orifice spud is accidentally
dropped, the cooktop
can be raised by
“engaging
e
the 2 front clips
with a large flat
blade screwdriver.
DO NOT attempt to raise the cooktop without
removing all 4 burner bases.
If wires were disconnected to remove the
cooktop, feed wires through the burner holes in
the cooktop. Attach to each burner electrode
terminal carefully, making sure not to bend the
terminal. Then lower cooktop until it snaps
over the clips.
Electrode
Tall Screw
7. Carefully insert burner bases straight down
with the tube over the orifice spud. Replace the
screws,
mating
sure the tall screw is
opposite the burner electrode in each
burner base.
❑
CONVERTING SURFACE BURNERSON
MODELS EQUIPPED
WITH STANDARD TWIN
BURNERS (See
Step
3
if range is equipped with
sealed burners.)
1.
Lift cooktop.
2. Lift burner
assemblies
straight up and
set aside to gain
access to surface
burner spuds.
3. With a 5/16”
‘
or a small
adjustable
wrench, remove
each of the four
spuds on the surface burner gas inlet tubes
and replace them with the correct gas spuds
mounted in a holder at the right rear of the
range, above the regulator. Natural gas spuds
are brass and
LP
gas spuds are red or silver.
(Mount the spuds that you removed from the
inlet tubes back in the holder.) To prevent
leakage, make sure spuds are securely screwed
into gas inlet tubes.
4. Replace the burner assemblies.
5. Keep all spuds with your range so you have
them if you move or get a different gas hook-up.
Top Burner
Ofice
Drill
She
Color
Natural Gas
#54 (.0550 Dia.)
Brass
LP
(Propane)
#66 (.0330 Dia.)
Red or Silver
42
