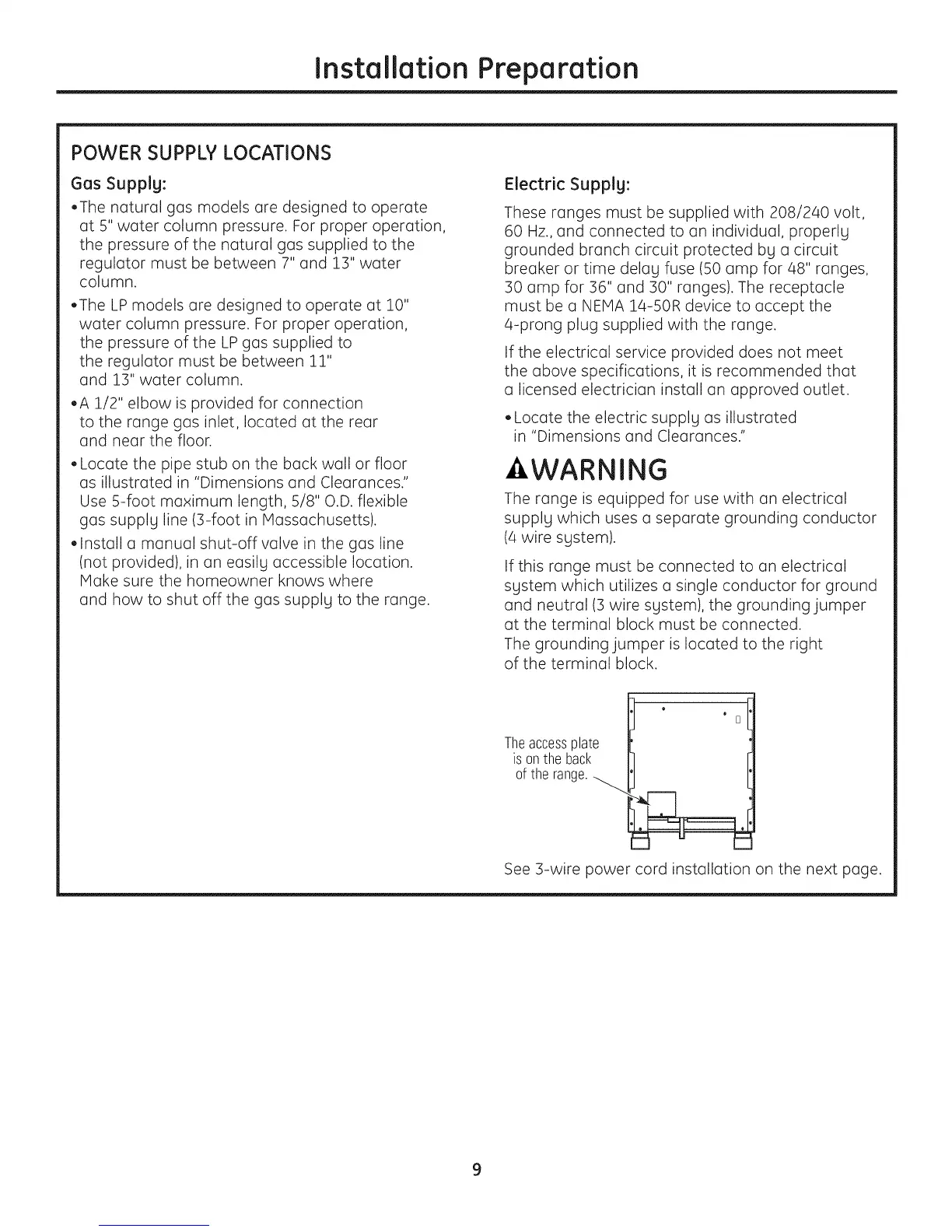

Installation Preparation
POWER SUPPLY LOCATIONS
Gas Supplg:
• The natural gas models are designed to operate
at 5" water column pressure. For proper operation,
the pressure of the natural gas supplied to the
regulator must be between 7" and 13" water
column.
• The LP models are designed to operate at 10"
water column pressure. For proper operation,
the pressure of the LP gas supplied to
the regulator must be between 11"
and 13" water column.
• A 1/2" elbow is provided for connection
to the range gas inlet, located at the rear
and near the floor.
• Locate the pipe stub on the back wall or floor
as illustrated in "Dimensions and Clearances."
Use 5-foot maximum length, 5/8" O.D. flexible
gas supplg line (3-foot in Massachusetts).
• Install a manual shut-off valve in the gas line
(not provided), in an easilg accessible location.
Make sure the homeowner knows where
and how to shut off the gas supplg to the range.
Electric Supplg:
These ranges must be supplied with 208/240 volt,
60 Hz., and connected to an individual, properlg
grounded branch circuit protected bU a circuit
breaker or time delag fuse (50 amp for 48" ranges,
50 amp for 56" and 50" ranges). The receptacle
must be a NEIVlA14-50R device to accept the
4-prong plug supplied with the range.
If the electrical service provided does not meet
the above specifications, it is recommended that
a licensed electrician install an approved outlet.
• Locate the electric supplg as illustrated
in "Dimensions and Clearances."
-&WARNING
The range is equipped for use with an electrical
supplg which uses a separate grounding conductor
(4 wire sgstem).
If this range must be connected to an electrical
sgstem which utilizes a single conductor for ground
and neutral (5 wire sgstem), the grounding jumper
at the terminal block must be connected.
The grounding jumper is located to the right
of the terminal block.
Theaccessplate
is onthe back
of therange._....
o
o
D
See 5-wire power cord installation on the next page.
To Next Page
