4| Compressor assembly

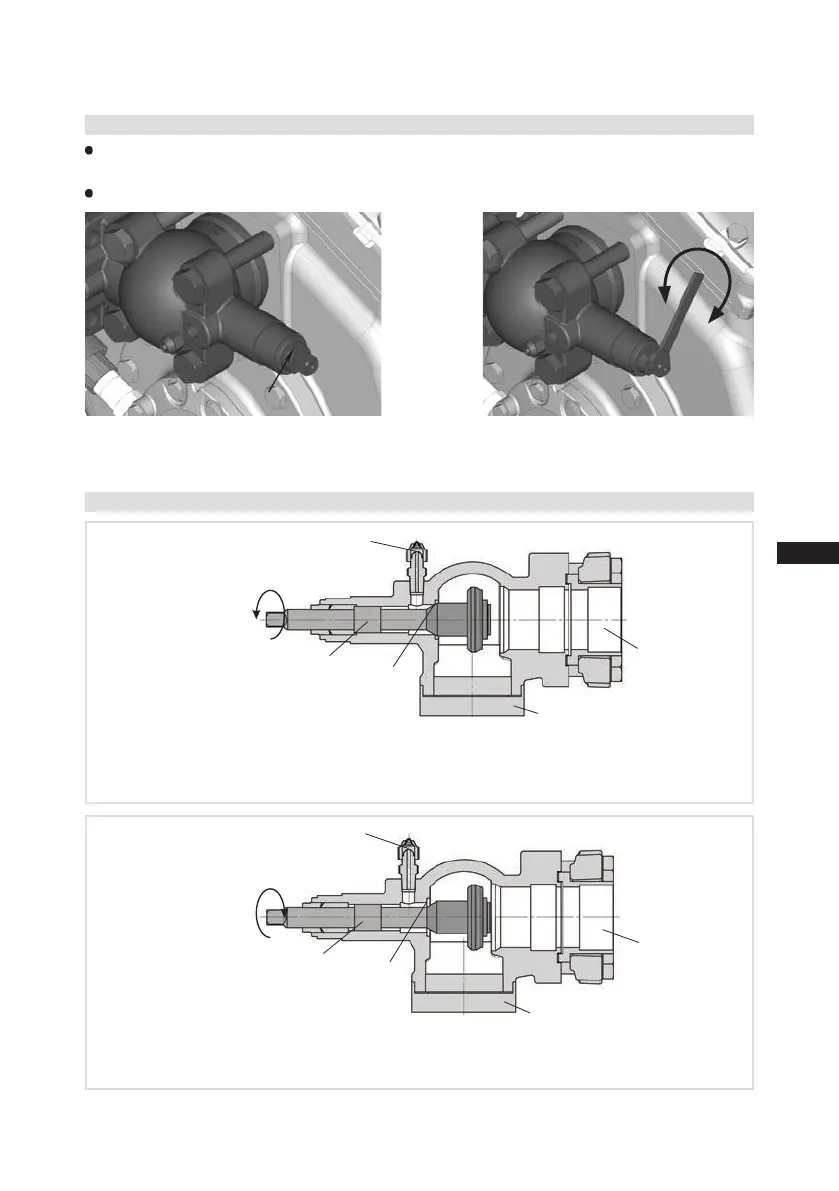

Fig. 16
Fig. 17
Valve spindle seal
Release
Tighten
Pipe connection
Pipe connection
4.7 Operating mode of the lockable service connections
Fig. 18
Opening the shut-off valve:
Spindle: turn to the left (counter-clockwise) as far as it will go.
—> Shut-off valve completely opened / service connection closed.
Fig. 19
Opening the service connection
Spindle: Turn 1/2 - 1 turn clockwise.
—> Service connection opened / shut-off valve opened.
Connection
blocked
Spindle
Spindle
Connection
open
Compressor
Compressor
Service connec-
tion closed
Service connec-
tion opened
4.6 Operating the shut-off valves
Before opening or closing the shut-off valve, release the valve spindle seal by approx. 1/4 of a
turn counter-clockwise.
After activating the shut-off valve, re-tighten the adjustable valve spindle seal clockwise.
Afteractivatingthespindle,generallytthespindleprotectioncapagainandtightenwith14-16Nm.
This serves as a second sealing feature during operation.
