GEA Bock HG8 Series - Capacity Controller (Item No. 08821)

D
GB
F
E
I
Ru
31
09790-02.2018-DGbFEIRu
WARNING Several capacity controllers cannot switch at the same time during
compressor operation! Otherwise the sudden change in load can
damage the compressor! Comply with the switching interval of 60 s.
8.4 Capacity controller (Item No. 08821)
8| Accessories
The standard compressor ist
prepared for being equipped
with three capacity controllers.
Screw in capacity controller
with sealing ring.
Torque:60Nm!
To t a capacity controller,
remove bung „N" from the
cover
Specialaccessoriesareonlypremountedinthefactoryiforderedspeciallybycustomer.Retrottingis
possible in full compliance with the safety instructions and repair instructions enclosed with the kits.
Information about the use, operation, maintenance and servicing of the components is available in the
printed literature or on the internet under www.gea.com.
„N“

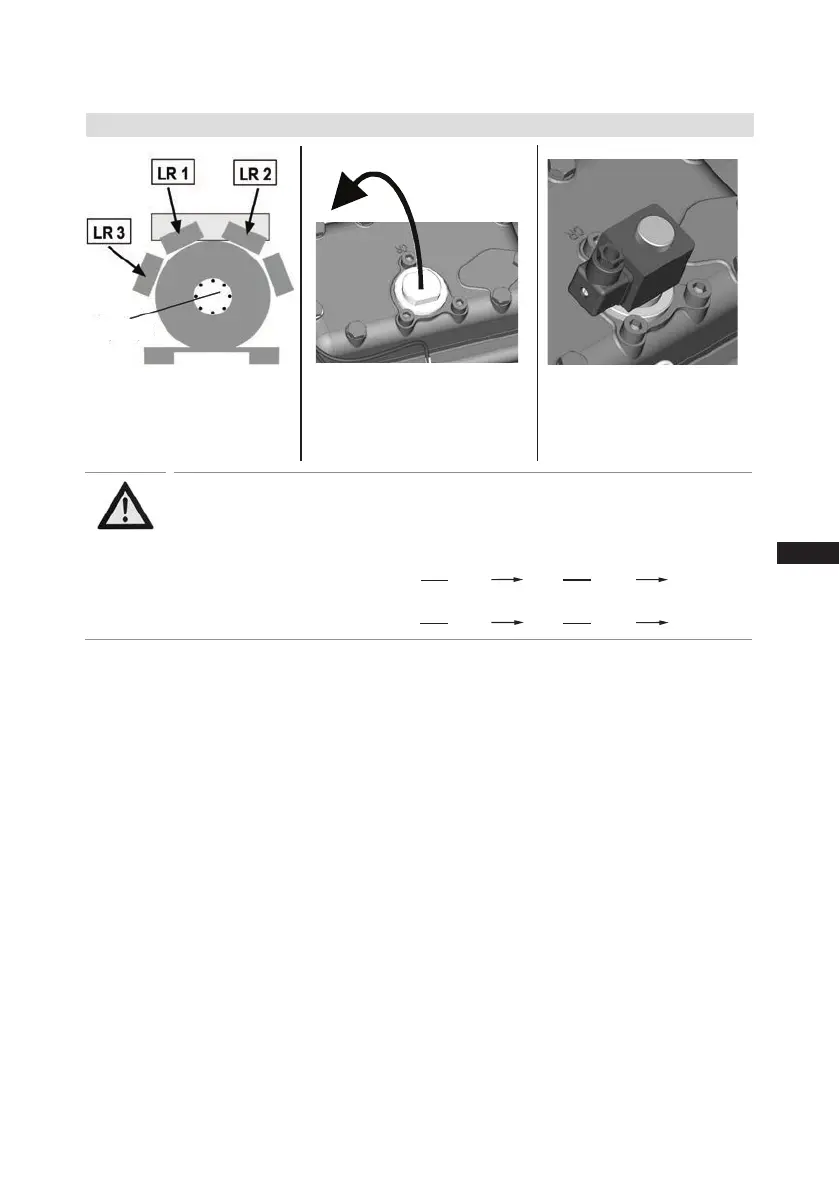

Fig. 28 Fig. 30Fig. 29
Oil pump
• Complywiththeswitchingsequence:
Switching on LR1 60s LR2 60s LR3
Switching off LR3 60s LR2 60s LR1
